Acetek 30X Zoom Camera with Joystick Controller for Broadcast Studio System
See all Acetek items

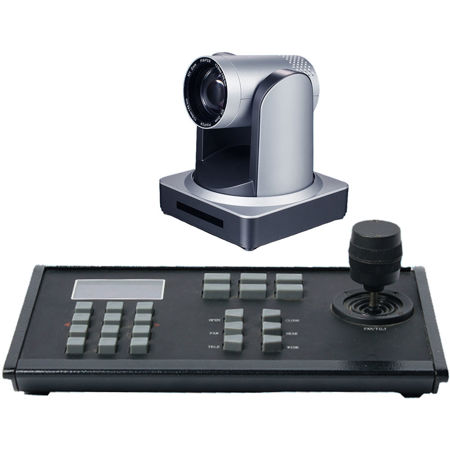

Acetek PTZ-SH30X HD SDI/HDMI Broadcast and Conference 30x PTZ Camera with PTZ-C1000 Joystick Controller

SKU: ACEPTZSH30XK

This item is no longer available.

Recommended Alternatives

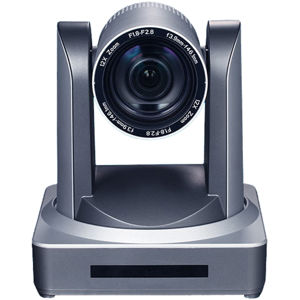

Acetek PTZ-SH20X: Picture 1 regular
Acetek PTZ-SH20X HD SDI/HDMI Broadcast and Conference 20x PTZ Camera
$1,456.00$1,126.00
Acetek PTZ-SH20X Open Box: Picture 1 regular
Acetek PTZ-SH20X HD SDI/HDMI Broadcast and Conference 20x PTZ Camera, Open Box
$1,456.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Acetek PTZ-SH30X Specifications

PTZ-SH30X: Camera Parameter

PTZ-SH30X: Camera Parameter

Jump to...

  • Optical Zoom

    f=5.2 - 98mm

  • View Angle

    3.3 Degree (tele)
    54.7 Degree (wide)

  • Iris

    F1.6 - F3.5

  • Sensor

    1/2.8" high quality HD CMOS sensor

  • Effective Pixels

    16:9, 2.07 Megapixel

  • Digital Zoom

    10x

  • Min. Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3D DNR

  • White Balance

    Auto / Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K

  • Iris/Electronic Shutter

    Auto/Manual

  • Focus

    Auto / Manual / One Push

  • BLC

    On/Off

  • WDR

    Off/ Dynamic level adjustment

  • Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, BW Mode, Gamma, Curave

  • SNR

    >55dB

PTZ-SH30X: Input / Output Interface

Jump to...

  • Video Interface

    SDI, HDMI, LAN, RS232 (in & out), RS485, A-IN

  • Video Compression

    H.264, H.265, Dual stream output

  • Control Protocol

    VISCA/Peclo-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps

  • Audio Input Interface

    Double track 3.5mm linear input

  • Audio Compression

    AAC/MP3/PCM Audio Compression

  • LAN Port

    100M IP Port (100BASE-TX); Support VISCA protocol control through IP port

  • Network Protocol

    RTSP, RTMP, ONVIF, GB/T28181

  • Power Interface

    HEC3800 Outlet (DC 12V)

PTZ-SH30X: General

Jump to...

  • Video Format

    HDMI/SDI/HD BaseT video format: 1080P60/50/30/59.94/29.97
    10801080P60/50/59.94
    720P60/50/30/59.94/29.97

  • USB 3.0 Interface video format

    USB 3.0: 1920 x 1080P60/50/30/25
    1280 x 720P30/25/15/10
    960 x 540P30
    640 x 360P30

    USB 3.0 compatible with USB 2.0: 960 x 540P30
    640 x 360P30
    1280 x 720P10/15
    720 x 576P30/720 x 480P30

  • USB 2.0 Interface video format

    176 x 144, 320 x 240, 320 x 180, 352 x 288, 640 x 480, 720 x 480, 720 x 576, 640 x 360, 800 x 600
    960 x 540, 1024 x 576, 1024 x 768, 1280 x 720, 1920 x 1080 P30/25/20/15/10/5

PTZ-SH30X: PTZ & Other Parameter

Jump to...

  • Pan / Tilt Rotation

    170 Degree, 30 Degree - +90 Degree

  • Pan Control Speed

    0.1 - 60 Degree/sec

  • Tilt Control Speed

    0.1 - 30 Degree/sec

  • Preset Speed

    Pan: 60 Degree/sec, Tilt: 30 Degree/sec

  • Preset Number

    255 presets (10 presets by remote controller)

  • Power Adapter

    AC 110V-AC220V to DC 12V/1.5A

  • Remote Operation (IP)

    Remote Upgrade, Reboot and Reset

  • Dimensions

    5.90 x 5.90 x 6.59" (150 x 150 x 167.5mm)

  • Weight

    3.08 lb (1.4kg)

PTZ-C1000 Joystick Controller

Jump to...

  • Band rate

    2400/ 4800/ 9600BIT/S

  • Maximum Communication distance

    3937' (1200m)

Other

Jump to...

  • UPC Code

    4717760619941

About Acetek PTZ-SH30X

Acetek PTZ-SH30X Features

  • Lifelike and Crystal Clear Image Effect & Strong Sense of Depth. High Resolution
  • Fantastic Color Rendition
  • Full HD Image
  • Multiple Optical Zoom Lens
  • Rich Video Interfaces
  • Advanced ISP Technology and Algorithm Stable and Reliable, Perfect Compatibility Convenient Installation and Maintenance
  • Can control the rotate, zoom, iris, focus and camera parameter setting of the camera or pan& tilt
  • 3-axis joystick, very easy to operate
  • 2 dimension button control, can set the speed of every state

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Lifelike and Crystal Clear Image Effect & Strong Sense of Depth. High Resolution
  • Fantastic Color Rendition
  • Full HD Image
  • Multiple Optical Zoom Lens
  • Rich Video Interfaces
  • Can control the rotate, zoom, iris, focus and camera parameter setting of the camera or pan& tilt

What's in the box:

  • PTZ-SH30X 30X Zoom Camera
  • PTZ-C1000 Joystick Controller
  • Acetek 1 Year Limited Warranty
