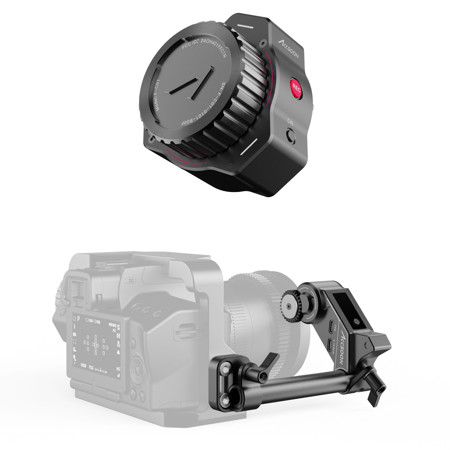

Accsoon F-C01 Wireless Follow Focus System

SKU: ACFC01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?NATHANIEL T : I needed this for my bmpcc4k and Adorama had it on used. I just had to grab it!

Reviews about this item

Review Summary

2022-08-09T09:30:43

Rated 5 out of 5

Quality Follow Focus

The follow focus has a high quality build. The motor is built with an aluminum housing making it feel sturdy. The motor will s vary strong, fast and gentle on the lens. It is easy to pair and calibrate. The wheel is fluid and grip-able for easy use. It also has hard stops to help keep you from pushing the motor too far. This is a great product and works as expected.

Luis V.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Accsoon F-C01 Specifications

  • Material

    Aluminum alley, engineering plastics

  • Operating Current

    Motor:
    Static Current: 105mA (@8.4V)
    Stall Current: 1.5A (@8.4V)

    Controller:
    Static Current: 95mA (@8.4V)

  • Transmitter Power

    20dBm

  • Max Torque

    0.35NM

  • Max Rotation Speed

    225RPM

  • Max Transmission Range

    100m (outdoors and unobstructed)

  • Response Time

    10ms (within communication distance, unobstructed)

  • Input Voltage

    Motor: 5-16.8V
    Controller: 7.4V (N-PFW50 battery input)

  • Output Voltage

    Motor: 5V
    Controller: 8.4V

  • Operation Environment Temperature

    14 - 104 Degree F (-10 - 40 Degree C)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    NP-FW50

  • Battery Quantity

    2

  • Dimensions

    Motor: 2.11 x 4.1 x 1.25" (53.5 x 104 x 32mm)
    Controller: 3.11 x 2.9 x 2.16" (79 x 73 x 55mm)

  • Weight

    Motor: 3.5 oz (100g)
    Controller: 3.88 oz (110g)

  • UPC Code

    664918771720

About Accsoon F-C01

FEATURED REVIEWS

Quality Follow Focus

By Luis V.

The follow focus has a high quality build. The motor is built with an aluminum housing making it feel sturdy. The motor will s vary strong, fast and gentle on the lens. It is easy to pair and calibrate. The wheel is fluid and grip-able for easy use. It also has hard stops to help keep you from pushing the motor too far. This is a great product and works as expected.

Just when you thought camera equipment couldn't get any better, the Accsoon F-C01 Wireless Follow Focus System steps in to revolutionize your filming experience. This compact yet robust system is a testament to high-quality engineering, offering a responsive, reliable, and easy-to-use solution for all your focusing needs.

The F-C01 is more than just a wireless focus system; it's a versatile tool designed to enhance your filming precision. It boasts a high-torque motor of 0.35 Nf m, offering near real-time response and an impressive control range of up to 350ft. This ensures a smooth and reliable focusing experience, making it an indispensable tool for 1st ACs and focus pullers.

One of the standout features of the F-C01 is Accsoon's proprietary FHSS technology. This innovative system allows the motor and controller to switch channels at a speed of hundreds of times per second, resulting in an incredibly stable connection that outperforms competing systems. This high level of anti-interference ensures accurate and stable control, giving users increased confidence in their equipment.

The F-C01 also offers quick A/B point setting for precise focus under a wide range. This feature allows users to set convenient focus marks, ensuring they hit their mark every time. This is complemented by an affordable power solution, with the controller running on a commonly available Sony-type NP-FW50 battery and the motor operating on a wide 5-16.8v power range.

Despite its compact size, the F-C01 is packed with features designed to enhance your filming experience. It comes with an OLED display on both the controller and the motor, providing real-time control over the power level, route bar, and more. The system also allows for simple camera recording control at your fingertips, with an extra Accsoon camera control cable (not included).

The F-C01 is also designed for seamless integration with Accsoon's CineEye or CineView wireless transmission systems, ensuring a dependable wireless experience on set. And with fast pairing, easy setup, and strong compatibility with most lenses via 0.8mm pitch gear, the F-C01 is a versatile and practical wireless follow focus solution that is sure to impress your crew.

Accsoon F-C01 Features

  • Compact and Powerful Design
  • F-C01 supports automatic and manual calibration
  • Compatible with most lenses via 0.8mm pitch gear
  • 320 Degree rotation Controller Wheel
  • Controller is made from Aluminum alloy and engineering plastic machining for ease-of-use
  • Motor has a high torque of 0.35N.M and 225 RPM Rotation Speed
  • Motor features CW or CCW rotation

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • High-torque 0.35 Nfm motor for near real-time response and precise focusing
  • Proprietary FHSS technology for stable, anti-interference control across an impressive 350ft range
  • Quick A/B point setting for accurate focus under a wide range
  • Powered by commonly available Sony-type NP-FW50 battery and operates on a wide 5-16.8v power range
  • Compact design with OLED display on both controller and motor for real-time control
  • Compatible with most lenses via 0.8mm pitch gear for versatile use in filming

What's in the box:

  • Motor
  • Controller
  • Motor Mount Adapter
  • Controller Quick Release Adapter
  • 6x 1/4"-20 x 5/16" Socket Head Cap Screw
  • 3/16" Allen Key
  • 15mm Rod
  • Focus Gear Ring
  • Motor Power Cable
  • DC to Type-C Cable
  • D-Tap to Type-C Cable
  • User Manual
  • Accsoon 1 Year Limited Warranty
