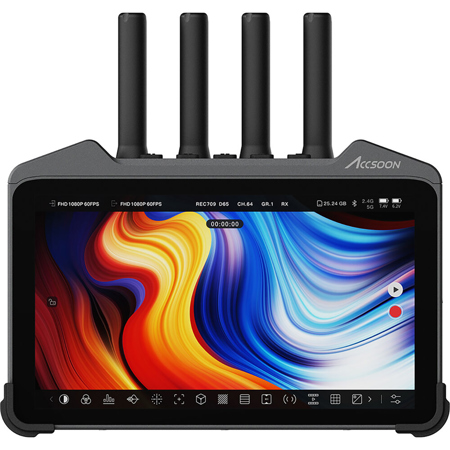

Accsoon CineView M7 Pro 7" Full HD Touchscreen On-Camera Smart Monitor with Wireless Video Receiver

All-In-One Wireless Smart Monitoring Ecosystem

Master Color Accuracy
Stunning, color-accurate professional 7-inch monitors crafted for professional uses.

Unrivaled Display Precision
Each unit is factory-calibrated to achieve near-perfect color accuracy.

• 1000 nits Peak Brightness
• Delta E<2 Cinematic Standard
• 1920 x 1080 Resolution
• 176 Degree /176 Degree Wide Viewing Angle
• REC.709 Coverage
• Gamma 2.4 Grayscale

Note: Color metrics certified by Accsoon Lab under standard testing conditions

Support Custom Screen Calibration
• 1D/3D LUTs Calibration: Compatible with Calman/ColorSpace /Calibrite
• Adjustable Gamma (2.0-2.6)
• Traditional RGB Gain Control

Precise Color Mapping Workflow
Rec.709 D65 Gamut Mapping Engine

Edge-Lit Backlight System, for Precise Bright & Dark Control
Achieving high brightness is easy, but maintaining accurate colors is challenging. CineView M7 Pro features a 1000:1 ultra-high contrast ratio combined with a fully laminated high-transmittance display, effortlessly handling both dark and bright scenes. Built with Edge-Lit backlight system with intelligent brightness control enables pixel-level precision, delivering true-to-life color reproduction without distortion.

High Bright Fully Laminated Display - True Colors Under Direct Sunlight
CineView M7 Pro is equipped with high transparency screen, enhanced by exclusive DXC coating, increasing light transmittance to 99% while significantly reducing reflectivity. Even in bright outdoor environments, the screen maintains exceptional clarity and color accuracy.

• Exclusive DXC Coating
• <0.6% Ultra-Low Reflection
• -99% High Transparency

All in One Wireless Workstation
CineView M7 Pro features integrated long-range wireless video transmitter and receiver capabilities, seamlessly connecting to any Accsoon CineView transmitter. It leverages Accsoon's patented Dual-Band transmission technology for ultra-low latency wireless monitoring. Nail every shot with cinematic grade tools like LUT box, false color and waveforms-all controlled through customizable buttons.

• Compatibility with CineView TX/RX system up to DCI 4K60 wireless monitoring

Note: CineView Master 4K, CineView 2 SDI, CineView SE/HE/Quad (Compatible Device)

Transmitter. Receiver. Monitor All in One
• 2.4+5GHz Accsoon patented Dual-Band technology
• 350m Transmission range
• 60ms Ultra-low latency

The Tools Professionals Expect
Including False Color, Histogram, Zebras, Waveform, and Vectorscope, among other advanced features. Customizable physical buttons On/Off toggle, color and size control

One Step Ahead Redefining Smart Monitoring
CineView M7 Pro powered by 8K high-performance processors and a smart operating system is designed to adapt to the evolving needs of modern production.

• Intuitive Interaction
• Smart OS
• Evolving Monitoring Experience

Note: Supports third-party application (Smart OS)

Smart Evolution: Your Portable Production Workstation
• Network connectivity, intuitive interaction, and file management with efficiency
• GPU+NPU based computing system designed for higher image process capabilities
• 500% Smoother Ul responsiveness
• 200% Faster image processing

Seamless Interaction, everything under your control
• Intuitive Interface: Responsive, smartphone-like menus
• In-Cell Touch Display: Thinner, lighter with faster touch response times
• Single/Multi-Touch Support
• Smart File Management: Transfer, organize, and process files seamlessly
• Instant File Transfer & Share: Built-in Wi-Fi enables camera-to-cloud uploads, direct file sharing
• Pro-Grade Live Streaming: RTMP/SRT Live Streaming with LUT burnt-in Live streaming made easy without capture card or PC
• Smart and Future-Proof: Built on future-proof operating systems designed to adapt to the evolving needs of modern production

On-set Monitoring, Reimagined
CineView M7 Pro delivers cinematic standard calibrated color with 127-point 3D LUT precision. Its LUT Box function enables multi-screen color consistency via SDI/HDMI outputs, revolutionizing on-set color workflow.

Unrivaled Display Color Precision
• cdi file support
• Effortlessly import and apply 3D LUTS up to 127 points
• Higher accuracy with 3D LUTs tetrahedral Interpolation
• LUT burnt-in monitoring, recording, streaming, and cloud sharing

LUT Box
Real-time LUT box, applying transforms to HDMI, SDI or Wi-Fi outputs, or burning LUTs directly into recorded footage

Format Conversion Flexibility
Engineered with groundbreaking architecture, CineView M7 Pro delivers high processing ability to handle 961+ video format combinations effortlessly - from 4K60 to 1080P, SDI & HDMI cross-conversion, even different frame rate outputs.

DCI 4K60 Image Processing
• Different Frame Rate Output: Choose from cinematic 24fps to broadcast 60fps standards
• HDMI/SDI Convert
• Resolution Convert: 4K-1080P cross-conversion
• Simultaneous HDMI & SDI Output
• Cinema Color Spaces

Note: 4K60 supported via HDMI only; SDI limited to 1080p60. Certain color spaces unavailable at specific resolutions

Record Playback Share
Flexible Storage Solutions for Diverse Workflow

Customize Your Recording
• Up to 4K60 Recording
• H.264/H.265 codec options
• CBR/VBR Control
• Smart media management for different file size
• Recording with 3D LUTs burnt-in
• Internal storage for on-device playback

Note: All recording resolution and frame rate are identical to real-time HDMI output configurations

7" Cinema Display 5" Portability

Aerospace-Grade Aluminum Body
A premium grade solid design for additional protection

Quad-Antenna Dual-Band Architecture
Accsoon's patented transmission technology ensures rock-solid wireless reliability

• Smart Cooling with Speed Control

Professional Accessories
Custom cage rig, durable protection and easy portability (sold separately)

Full-Featured I/O: Flexible Power Options

Interface
• SD Card Slot: External SD card storage support
• USB 3.0 Port: External USB drive/SSD storage support
• 3G-SDI In/3G-SDI Out
• 3.5mm Microphone Jack: Standard 3.5mm TRS microphone jack, Flexible audio source selection: MIC or video embedded audio
• HDMI 2.0 In/HDMI 2.0 Out
• 3.5mm Headphone Jack: Standard 3.5mm CTIA Headphone jack

Versatile Power Solutions
• Dual NP-F Battery Slots
• USB PD Input (Note: Requires 9V/3A or higher)
• DC Power Input
• USB-C 5V Output
