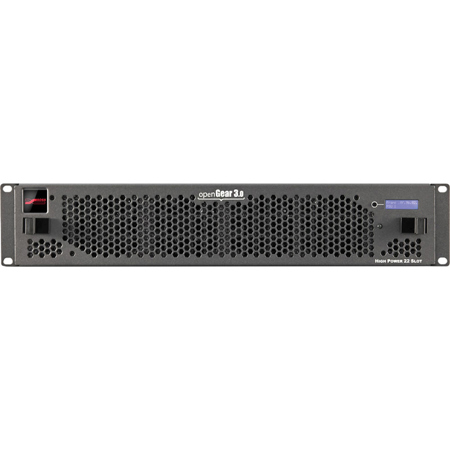

Apantac openGear 3.0 OG3-FR-C-P 21 Slot High Density Modular Frame with Cooling Fans and High Power (without GigE Network Control)

SKU: ACOG3FRCP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Apantac OG3-FR-C-P Specifications

  • Card Slot

    Number of Slots: 21

  • Reference Input: Number of Inputs

    2 looping

  • Reference Input: Level

    1 Vpp nominal

  • Reference Input: Signal

    Analog video sync (black burst or tri-level), or AES/EBU DARS

  • Reference Input: Impedance

    75Ohms terminating

  • Reference Input: Return Loss

    >30 dB to 30 MHz

  • Reference Input: Maximum DC on Ref Input

    +/-1V

  • Maximum Power

    +12 V Rail
    Per Card Occupying 4 Slots: 5 A, 60 W
    Per Card Occupying 2 Slots: 2.5 A, 30 W
    Per Card Occupying 1 Slot: 1.25 A, 15 W
    -7.5 V Rail
    Per Card Occupying 4 Slots: 0.8 A, 6 W
    Per Card Occupying 2 Slots: 0.4 A, 3 W
    Per Card Occupying 1 Slot: 0.2 A, 1.5 W
    Total: 300 W, total power consumption not to exceed 15 W maximum per card slot

  • Maximum Power (cont.)

    Frame Controller and Fans
    +12 V Rail: 3 A, 36 W
    -7.5 V Rail: 0.2 A (1.5 W)
    Total: 37.5 W maximum
    GFC-8322 Card
    +12 V Rail: 0.2 A (2.4 W)
    -7.5 V Rail: 0.2 A (1.5 W)
    Total: 3.9 W maximum.

  • Power Supply

    PS-OG3
    Input: 100 to 240 VAC, 47 to 63 Hz, 500 W
    Output 1: 12V, 28 A, 336 W nominal
    Output 2: -7.5 V, 5 A, 37.5 W nominal
    Total: Sum of both outputs not to exceed 375 W maximum.

  • Ambient Temperature Range

    32 to 104 deg. F (0 to 40 deg. C)

  • Humidity

    <95% non-condensing

  • Dimensions (HxWxD)

    3.50 x 19.00 x 17.7" (8.89 x 48.26 x 44.96cm) (2RU)

  • Weight

    20.00 lbs (9.07kg) with 2 PS-OG3 power supplies installed

About Apantac OG3-FR-C-P

Superior flexibility, power and control from the 3rd generation of the openGear platform. The broadcast world's first and only open-hardware platform and your platform of choice for your broadcast infrastructure needs. openGear 3.0 is the evolution of the industry's first and only open hardware and software platform. The next generation openGear frame, OG3-FR combines function, flexibility and power with advanced features like high powered 450 watt redundant power supplies, Gigabit Ethernet access to every card slot, 20 openGear card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution and a front LCD display for easy frame, IP address and fault identification.

• Robust 450 watt power supply with integral cooling
• Standard Ethernet connectivity
• 2RU frame houses up to 20 openGear cards
• Supports any mix of analog, digital, video and audio modules in the same frame
• Modular I/O panels for connector flexibility
• Removable front door for easy fan servicing
• Frames come standard with cooling
• Front LCD display for name, IP and fault identification
• 2 independent looping references with connection to each card slot
• 5-year transferable warranty

2RU Frame
The OG3-FR is a 2RU modular frame, designed to accommodate up to 20 cards from the openGear family.

Common Frame Features
Two looping reference inputs are buffered and distributed to all module slots. A frame mounted Ethernet port allows a network control module to be added without occupying a module slot. PowerLock cord retainers guard against accidental power loss.

Modular Rear I/O Modules
Separate rear I/O modules are ordered with card modules offering a mix of BNC, fiber optic and other connections as required. These rear modules are quick and easy to install.

SNMP
openGear supports SNMP (Simple Network Management Protocol) offering an industry standard interface for system wide monitoring applications. SNMP is loaded direct to the frame eliminating the need for any external gateways and runs on a separate software port allowing for simultaneous control from both DashBoard and SNMP clients. This is useful in applications where system wide monitoring is performed using SNMP and real-time control is performed using DashBoard.

DataSafe
DataSafe dramatically reduces downtime when failed modules are swapped out. All module parameters are stored on the local frame network card and automatically restored when a hot-swap is performed. With some cards reaching well over 100 parameters, including audio channel delays and video proc level, DataSafe ensures a proper reconfiguration of replacement cards without the hassle of trying to remember previous settings. DataSafe can be enabled or disabled on a per slot basis through the frame's network controller card. DataSafe's intelligent design will only restore parameters when it detects a compatible replacement product. DataSafe is only available with the advanced networking control option.

Modular Frame Architecture
The OG3-FR offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio and fiber. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear cards in the OG3 frame.

Robust Power Supplies
The OG3-FR can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 450 watt supply can fully power a loaded frame and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED and a front mounted power switch.

Cooling
The OG3-FR frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back airflow. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Control
The OG3-FR comes standard with Ethernet connectivity for basic configuration and monitoring of openGear cards through the DashBoard control system. An optional advanced networking card, the MFC-0G3-N, adds an on-board Gigabit Ethernet switch, with GigE access to each of the 20 processing card slots. The advanced networking control also allows multiple DashBoard connections and adds advanced features such as DataSafe and optional SNMP.

What's in the box:

  • Apantec openGear 3.0 OG3-FR-C-P 21-Slot High Density Modular Frame
  • Apantec 5 Year Warranty
