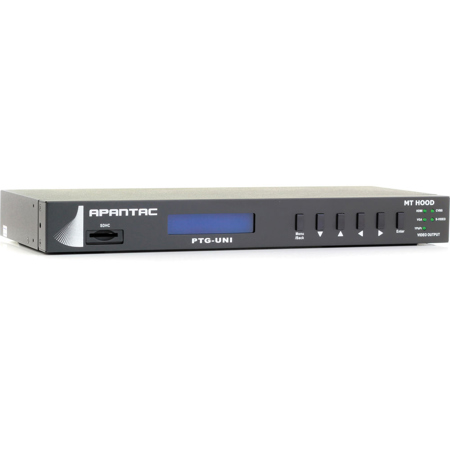

Apantac PTG-UNI HDMI Universal Pattern Generator

SKU: ACPTGUNI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Apantac PTG-UNI Specifications

  • Output Connectors

    1x HDMI Type A, 1x DB-15 Female, 3x BNC, 1x BNC, 1 miniDIN 4 Female

  • Outputs

    HDMI, VGA, YPbPr, CVBS, S-Video

  • Buttons

    6

  • Maximum Resolution

    UXGA / 1080P

  • Highest Frequency

    225MHz

  • Power

    Locking 12V DC

  • Dimensions (D x W x H)

    384 x 173 x 45mm / 15.12 x 6.81 x 1.77"

  • Weight

    1885g / 66.49oz

About Apantac PTG-UNI

• Supports Multiple Formats (HDMI, VGA, YPbPr, CVBS and S-Video)
• HDMI, HDCP and DVI compliant
• Supports a total of 51 timings (up to UXGA/1080P)
• Provides a total of 31 patterns
• Accepts customized bitmap (.bmp) patterns via SD/SDHC card slot
• User Friendly Interface with up/down/left/right bottons and LCM display
• Supports analog and digital audio (SPDIF) out with 48KHZ sample rate, 1 KHz tone
• 12 V DC power
• 1 Rack Unit

What's in the box:

  • Apantac PTG-UNI HDMI Universal HDMI Pattern Generator
  • 12 VDC Power Supply
  • Apantac 3 Year Limited Warranty
