Acratech GV2 Ballhead with Gimbal Feature, with all Rubber Knobs, Without Quick Release, Supports 25 lbs.

SKU: ACRGV2WOC

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?TAYLOR C : Well designed, easy to clean, and access all moving parts.

Reviews about this item

Review Summary

2017-02-04T11:38:35

Rated 5 out of 5

Well built and sturdy

I have the Acratech leveling base and pan head that I've used for years. Both have held up very well, neither showing any signs of wear. Needing a sturdier ball head, the first place I looked was Acratech. I also wanted a gimbal head, but I don't take enough photos needing a gimbal to purchase a stand alone. This ball head is said to handle gimbal functions. I have as yet not used it for such. It is rated to a 400 mm lens. I have the Nikon 200-500 mm lens and am assured by Acratech that this ball head will handle the lens as long as a tripod leg is under the weight of the lens. The ball head is a beauty and all functions are smooth and knobs hold tightly, are rubber coated, and don't get in the way of other operations. My overall use will be macro and close up work, but also some gimbal-function needs.

STEPEHEN R.

2017-01-09T14:31:59

Rated 4 out of 5

Very well made

Very well made. Works as intended. Overpriced.

JIM P.

2012-06-17T21:00:00

Rated 5 out of 5

Ballhead on steroids!

I tried several different heads on my monopod until I put this one on it. I'm done trying different monopod heads. This head tops them all. I purchased this without a clamp and topped it off with my RSS clamp. Using an RSS L plate on my camera and the gimbal feature of this ballhead gives my camera a well balanced, stable monopod platform with smooth vertical movements in the gimbal position. The best platform I've found for a monopod. The gimbal feature is surprisingly versatile and smooth, but, I doubt it would compete with a true gimbal head. Don't kid yourself...there's good reason a true gimbal head costs what it does. I haven't tried this on a tripod...it's staying on my monopod.

DAVE R.

2012-05-06T21:00:00

Rated 5 out of 5

Outstanding

I love the dual control for tightening and releasing. It is very easy to set the tension for different camera/lens combination weights to get optimal control. It is also nice that the knob can't come off.

JOHN M.

2011-11-25T19:00:00

Rated 5 out of 5

Lightweight and very stable.

Light and easy to use. Would like the camera bases to have screws won't fall out when not in use.

RICHARD B.

2011-09-17T21:00:00

Rated 5 out of 5

The definition of

I use this ballhead mostly for macro work with the fabuoulus Manfroto 055XPROB and a Novaflex CASTEL-Q precision rail. All angles - overhanging and up-side-down.. Solid support! Of course everything attaches with ARCATECH Arca Swiss mounts ! Very nice friction control - not on/off like some.... Smooth and Progressive. This is one of those products that are an absolute joy to work with. The price - yes high - but this is a porsche - and once you drive one you will not go back.

JOHN M.

2011-09-05T21:00:00

Rated 5 out of 5

Great ballhead

I love this ball head. Lightweight and easy to use.

Mel

2011-09-03T21:00:00

Rated 5 out of 5

Lightweight, versatile

I have not tried other high-end ballheads, but this is everything I need for daily use. It provides a very stable platform for my DSLRs. My combo of D7000 with a 300mm F4 probably maxes out its capacity.

Yuen S.

2011-03-05T19:00:00

Rated 4 out of 5

Beautifully Engineered

OK, I read many reviews and decided to pop for this model. The engineering is amazing; thoughtful and out of the box. I have only used a few times and pleased overall with it's performance. I have noticed that you must tighten the the knob holding the ball in place pretty well when using larger DSLRs (I use a D300). I assign my lack of familiarity with the controls. I am impressed with the design and uses enabling movement in all directions and leveling as an added bonus. So far, I am very impressed with this head. The range of motion is terrific. I have noticed that I will need to re-work the head where it attaches to the tripod because it has a tendency to loosen and unscrew. Again, it may be my lack of familiarity (it's been a long, cold winter here)

The G.

2011-03-05T19:00:00

Rated 5 out of 5

King of Ballheads

I love how light and well built this ball head is. The rubber knobs enable precision adjustments with ease. The ball and movement within the socket is ultra smooth. Overall well built and completely satisfied. If your thinking about it, get it! Easily holds my D700 and 70-200vr2 with ease. Totally dependable and flexible for all types of uses.

Potato p.

2010-09-04T21:00:00

Rated 5 out of 5

beautiful engineering

Nicely engineered tripod head. Fully functional and well designed. With little practice, it becomes a wonderful tool to assist in recording images.

CHRISTOPHER V.

2010-07-04T21:00:00

Rated 5 out of 5

Good Support

This ball head is one of the best heads we have every used. The head provides rock solid support and is very light weight. We have found to increase support and minimize the slightest camera movement; you might consider an L-bracket over a camera plate. We switched to L-brackets for our camera, the camera body remained firmly attached with no movement of any kind. So if you are looking for a light weight and firm support, this is the head you want.

Richard

2010-03-20T21:00:00

Rated 5 out of 5

Excellent Ballhead

Compared to my other ballhead there is no drift when I use my Sigman 150-500mm zoom. It's balanced and very easy to use.

RICHARD B.

2009-08-08T21:00:00

Rated 5 out of 5

A real winner

By far the best and most versatile ballhead I have ever used!

John Z.

2008-02-25T19:00:00

Rated 4 out of 5

Give me its little brother anyday!

Quality construction? Most definitely. Light weight? Incomparable. Gimbal head? Come on now! After using the incredible "Ultimate Ball-head" from this company, I just had to add this newer version after reading all of the hype. But in a nutshell, the gimbal aspect is not what I'd expected. I also had the horrifying experience of seeing an EOS-1D Mk111 & 300mm f/2.8L IS combo detach itself not once, but twice from the head (I'm using Wimberley plates; supposedly compatible), but fortunately I caught it in time on both occasions. This combination is supposed to fall well inside the head's weight range capabilities, but this experience aside, it's smoothness when slotted into the 90 degree "Gimbal" recess leaves a lot to be desired. Far too jerky, and not even close to the Wimberley Sidekick (let alone the WH-200!) to be considered a true gimbal head. My old Kirk BH-1 does this job equally as well (if not better). It's also extremely unnerving to see that large camera & lens sitting out to one side of such a delicate head, especially as mine is mounted on a 2 Series Gitzo Basalt tripod! It's also much closer to being a conventional ballhead than its cheaper sibling, which I believe to be far better value for money. The gimbal aspect aside, it's got to be one of the easiest to maintain ballheads out there (along with the Ultimate version), so I would still have to recommend it. Just don't go beyond the lens weight of say, a 70-200 f/2.8.

Yukihyo

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Acratech GV2 Specifications

  • Load Capacity

    over 25 lb (11.4 kg)

  • Height

    4.25" (108mm)

  • Tension Control

    Yes

  • Separate Panning Lock

    Yes

  • Finish

    Black anodized

  • Tripod Mount Thread Size

    Dual 1/4"-20 and 3/8"

  • Weight

    < 0.76 lb (345 g)

1 Accessories for Acratech GV2 Ballhead with Gimbal Feature, with all Rubber Knobs, Without Quick Release, Supports 25 lbs.

  • All Accessories (1)
  • Tripod Head Accessories (1)

About Acratech GV2

FEATURED REVIEWS

Lightweight, versatile

By Yuen S.

I have not tried other high-end ballheads, but this is everything I need for daily use. It provides a very stable platform for my DSLRs. My combo of D7000 with a 300mm F4 probably maxes out its capacity.

Excellent Ballhead

By RICHARD B.

Compared to my other ballhead there is no drift when I use my Sigman 150-500mm zoom. It's balanced and very easy to use.

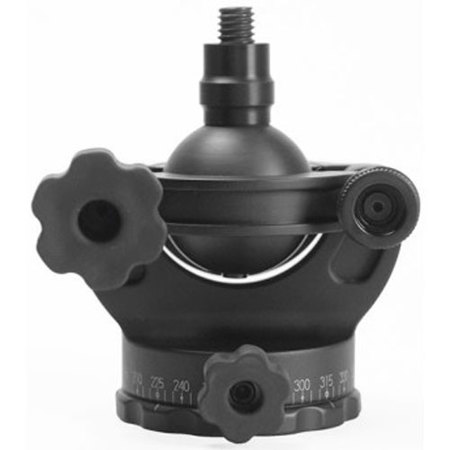

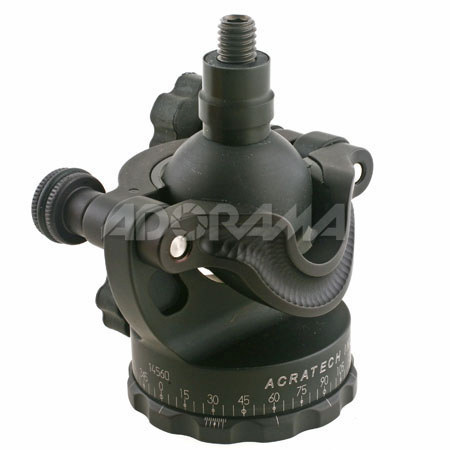

The new Acratech GV2 Ballhead is uniquely designed to function both as a ballhead and as a Gimbal head.

Traditional ballhead designs work well for most photography but when longer lenses with tripod collars are used; it can be difficut to control them. In the past it was necessary to carry a separate Gimbal head or Gimbal attachment for your ballhead. Our Acratech GV2 Ballhead solves this problem by functioning as a Gimbal head simply by rotating the ball into the Gimbal slot on the side of theballhead. We put a bushing on the stem of the ball and a pin on the bottom of the ball to provide smooth rotation. It provides totalease of use and freedom of movement. Our Ultimate GV2 Ballhead works well with lenses up to a 400 4.0.

Acratech GV2 Features

  • Weighs less than 1 lb (.45kg) with quick release clamp.
  • Easily holds over 25 lbs (11.4kg) at any angle.
  • Full movements allow any camera position.
  • Precision C.N.C. machined.
  • Shown with left side controls
  • Compatible with Kirk, Arca, R.R.S., and many other QR plates.
  • Beautiful satin black anodized finish.
  • Fits all standard tripods (1/4-20 and 3/8-16 threads).
  • Engraved degree markings.
  • Solid precision feel.
  • Made in U.S.A.
  • Ball will not shift when tightened.
  • Oilless and greaseless ball will not attract or hold dirt and debris.
  • All knobs are secured so they cannot vibrate loose and fall off.

Key Features

  • Lever-operated quick-release clamp
  • Works well with lenses up to 400mm f/4.0 & any tripod with a 1/4"-20 or 3/8"-16 threaded screw
  • Full movements allow any camera position
  • Precision CNC-machined
  • Solid, precision feel
  • Engraved panning degree markings

What's in the box:

  • Acratech GV2 Ball Head
  • 1/4 "-20 Reducer Bushing
  • Detent Pin
  • Rubber Knobs
  • Acratech 10 Year Warranty
