Advanced Communication System IFB Communication System with Dialer
See all Advanced Communication System items

Advanced Communication System IFB Communication System with Dialer, Built-In Microphone, Two, 1/4" & 1/8", Phone Jacks Monitor Amplifier Output, 8 Ohms Output Impedance

SKU: ACSM25

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CYNTHIA G : For work Audio Engineer

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Advanced Communication System IFB Communication System with Dialer Specifications

  • Monitor Amplifier: Connector

    2kOhms balanced input XLR-3 female

  • Monitor Amplifier: Output

    8 Ohms impedance. Two, 1/4" and 1/8", phone jacks

  • Monitor Amplifier: Power output

    300 mW

  • Mic Pre-Amplifier: Input

    Built in electret condenser microphone

  • Mic Pre-Amplifier: Output

    1.2kOhms

  • System: Power

    9V Alkaline battery or regulated external power supply

  • System: Total quiescent current

    10 mA

  • System: Construction

    Die cast aluminum

  • Dimensions (L x W x H)

    4.75 x 2.56 x 1.6" / 120.65 x 65.02 x 40.64mm

About Advanced Communication System IFB Communication System with Dialer

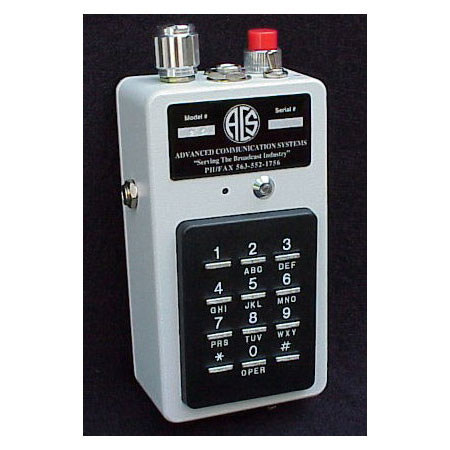

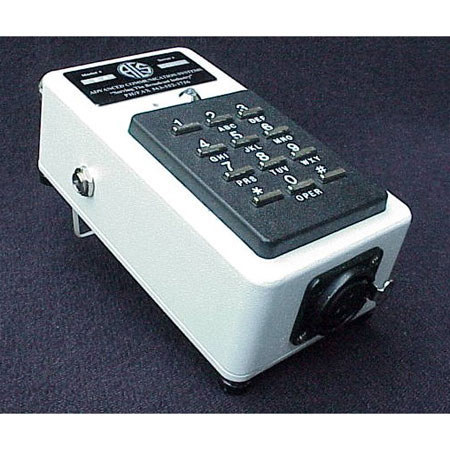

Advanced integrated circuit design, state of the art system. Compact, rugged, lightweight and efficient. With 1/4" and 1/8" output jacks, this unit is used by broadcasters as IFB monitor amplifier or as a communication system with dialing capability. Features open microphone switch and momentary push button switch.

Advanced Communication System IFB Communication System with Dialer Features

  • Diode protected circuit polarity
  • Keyboard with Touch Tone Encoder
  • Incoming call light indicator
  • External power jack
  • Die cast aluminum body with glacier gray texture finish
  • Lid thumb screws for quick and easy battery change

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Diode protected circuit polarity
  • Incoming call light indicator
  • External power jack
  • Die cast aluminum body
  • Lid thumb screws for quick and easy battery change

What's in the box:

  • Advanced Communication System IFB Communication System with Dialer
  • Belt Clip
  • Battery
  • Advanced Communication System Warranty
