Advanced Communication System Pro-Communication System with Dialer
See all Advanced Communication System items

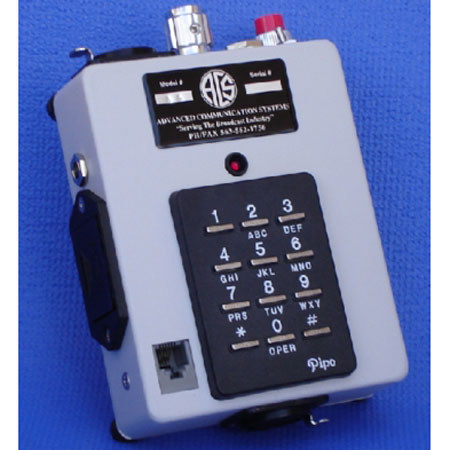

Advanced Communication System Pro-Communication System with Dialer, 8 Ohms Output Impedance, XLR-4 Female Headset/XLR-3 Female Connector/RJ-11 Modular Jack

SKU: ACSM35

This item is no longer available.

See all Used options (2) from $13
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Advanced Communication System Pro-Communication System with Dialer Specifications

  • Connectors

    Low impedance headset XLR-4 female
    2 kOhms balanced input XLR-3 female and RJ-11 modular jack

  • Output

    Two independent channels 8 ohms impedance

  • Power output

    350 mW

  • Power Source

    9V Alkaline battery or regulated external AC adapter

  • Total quiescent current

    10 mA

  • Body

    Diecast aluminum

  • Dimensions (L x W x H)

    4.7 x 3.7 x 1.35" / 119.38 x 93.98 x 34.29mm

About Advanced Communication System Pro-Communication System with Dialer

This high quality, all integrated circuit system is truly versatile, designed for several applications in the broadcast industry. Used with low impedance headsets, this unit features two independent output channels, one for the headset output, the other for the IFB output with 1/4" and 1/8" jacks. Also features open microphone switch in addition to the momentary pushbutton switch.

Advanced Communication System Pro-Communication System with Dialer Features

  • Diode protected circuit polarity
  • Keyboard with Touch Tone Encoder
  • Incoming call light indicator
  • Externally accessible battery compartment
  • External power jack for regulated AC adapter
  • Diecast aluminum body with glacier gray texture finish

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Diode protected circuit polarity
  • Incoming call light indicator
  • Externally accessible battery compartment
  • External power jack for regulated AC adapter
  • Diecast aluminum body

What's in the box:

  • Advanced Communication System Pro-Communication System
  • Belt Clip
  • Battery
  • Connecting Cable
  • Advanced Communication System Warranty
