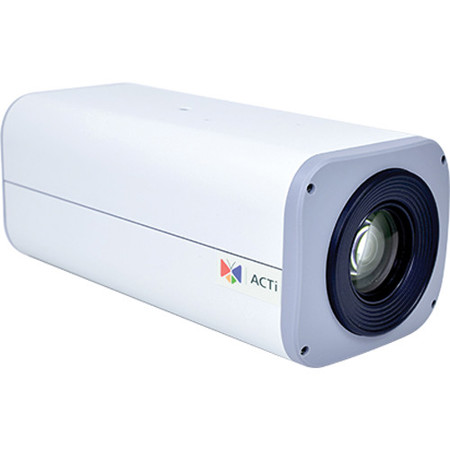

ACTi B210 10MP Day & Night Box Camera with f6.3-63mm / F2.2-3.5 Lens
See all ACTi items

ACTi B210 10MP Day & Night Box Camera with f6.3-63mm / F2.2-3.5 Lens, 10x Optical Zoom

SKU: ACTB210

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi B210 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66MP)

  • Horizontal Resolution

    1500 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.2 (30 IRE, 2400 deg.K); B/W: 0.05 lux at F2.2 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52dB

  • Focal Length / Aperture

    Zoom, f6.3 - 63mm / F2.2 - 3.5

  • Zoom Ratio / Speed

    10x optical / 2.3 sec (wide to tele)

  • Zoom Application

    Camera installation

  • Iris

    P-iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    50.6 deg. to 4.59 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Max. Frame Rate vs. Resolution

    7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Privacy Mask

    Up to 17 preset points including home position with up to 4 configurable regions for each Zoom position

  • Image Enhancement

    Basic WDR (70 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal Block

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Digital Output

    1, Terminal Block

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 7.68W (built-in heater on)

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (W x H x D)

    81 x 71 x 176mm / 3.19 x 2.80 x 6.93"

  • Weight

    677g / 23.88oz

About ACTi B210

With its high-tech 10 Megapixel resolution and 4K/1080p video output, the B210 Day & Night Box Camera is designed to deliver crystal-clear, detailed images in any lighting condition. This advanced security camera is equipped with a sophisticated day and night function, ensuring reliable surveillance around the clock.

The camera boasts a 10x optical zoom lens with a focal length range of f6.3 - 63mm and an aperture range of F2.2 - 3.5. This innovative P-Iris lens system, coupled with an auto focus feature, allows for precise control of the iris, enabling sharper images with optimized depth of field and superior image quality.

The B210 camera also features Basic Wide Dynamic Range (WDR) with a 70 dB capacity, which helps to balance the lighting in scenes with high contrast ratios, ensuring clear images in all lighting conditions.

With a frame rate of 30 fps at a resolution of 1920 x 1080, this state-of-the-art camera captures smooth, high-definition video, making it an ideal solution for your security needs.

The camera supports both H.264 and MJPEG codecs, offering flexibility in balancing video quality and bandwidth requirements. Additionally, the Power over Ethernet (PoE) feature simplifies installation by allowing both power and data to be transmitted over a single Ethernet cable.

In summary, the B210 10MP Day & Night Box Camera is a sophisticated, high-tech solution for your surveillance needs, offering advanced features and superior image quality.

ACTi B210 Features

  • High-tech 10 Megapixel resolution for crystal-clear, detailed images
  • Advanced day and night function for reliable 24/7 surveillance
  • 10x optical zoom lens with f6.3 - 63mm / F2.2 - 3.5 aperture range for superior image quality
  • Basic Wide Dynamic Range (WDR) with 70 dB capacity for clear images in all lighting conditions
  • Smooth, high-definition video capture at 30 fps at 1920 x 1080 resolution
  • Supports H.264 and MJPEG codecs with Power over Ethernet (PoE) feature for easy installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear footage with the ACTi camera's impressive 10MP image sensor.
  • Enjoy flexible surveillance with the 10x optical zoom, perfect for detailed security.
  • Day & Night mode ensures continuous monitoring, providing around-the-clock security.
  • Easily integrate this ONVIF compliant camera with your existing security network system.
  • Get detailed video with H.264 compression, optimizing storage without losing quality.
  • Advanced motion detection alerts you to any unusual activity, enhancing your security.

What's in the box:

  • ACTi B210 10MP Day & Night Box Camera with f6.3-63mm / F2.2-3.5 Lens
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Terminal Block (for Serial Port)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
