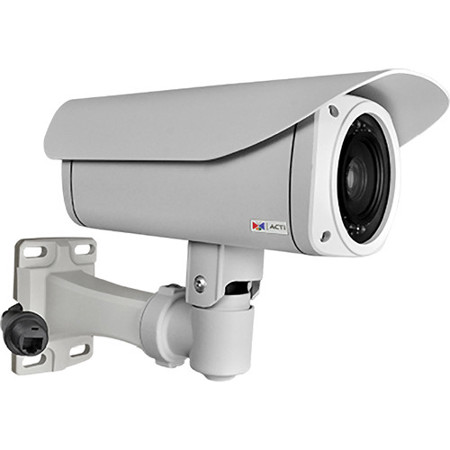

ACTi B45 2MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F1.6-3.0 Lens, 10x Optical Zoom

SKU: ACTB45

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi B45 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Effective Pixels

    1984 (H) x 1225 (V) (2.43MP)

  • Horizontal Resolution

    1450 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Superior

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED x 27 (850nm)

  • IR Working Distance

    40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Zoom, f4.9 - 49 mm / F1.8 - 3.0

  • Zoom Ratio / Speed

    10x optical / 2.5 sec (wide to tele)

  • Zoom Application

    Camera Installation; Auto Zoom by Event; Manual Operation

  • Iris

    DC iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    57.8 deg. - 6.9 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    30 fps at 1980 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320x240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Privacy Mask

    4 configurable regions for each of 17 preset points

  • Image Enhancement

    Basic WDR (75 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) and DC 12V / 12W (built-in heater and IR on)

  • Bundled Accessories

    Bracket, Weatherproof connector kit

  • Environmental Casing

    Weatherproof (IP67 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Pole, Ceiling, Gang box

  • Starting Temperature

    -40 to 50 deg. C / -40 to 122 deg. F(within 30 mins)

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67,NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual Setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Dimensions (W x D x H)

    122.4 x 101.37 x 240.4mm / 4.82 x 3.99 x 9.46"

  • Weight

    2.36kg / 5.20lbs

About ACTi B45

Enhance your security system with the B45 2MP Outdoor Day & Night Bullet Camera, a high-tech and advanced solution for your surveillance needs. This sophisticated camera boasts a 2-megapixel resolution, delivering crisp 1080p high-definition images for clear and detailed monitoring.

Experience superior surveillance both day and night, thanks to its superior low light sensitivity and adaptive IR LED technology. This innovative feature ensures optimal performance even in low light conditions, capturing every detail with precision.

The state-of-the-art B45 camera is equipped with a 10x optical zoom lens, featuring an f4.9-49mm / F1.6-3.0 range, DC iris, and auto focus. This allows for detailed close-ups and wide-angle views, ensuring comprehensive coverage of your property.

With a basic Wide Dynamic Range (WDR) of 75 dB, the camera effectively balances light levels in high contrast scenes, ensuring clear image quality in all lighting conditions. It delivers a smooth video stream at 30 frames per second at a resolution of 1920 x 1080, providing real-time surveillance footage.

Designed for outdoor use, the B45 camera comes with a weatherproof IP67 rating and a vandal-proof metal casing (IK10). This ensures the camera's durability and resilience against harsh weather conditions and potential vandalism, making it an ideal choice for outdoor security.

Incorporating H.264 and MJPEG compression technologies, the camera ensures efficient data management for smooth and reliable streaming. Additionally, the camera supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables.

In summary, the B45 2MP Outdoor Day & Night Bullet Camera is a comprehensive, advanced, and reliable solution for your outdoor surveillance needs.

ACTi B45 Features

  • High-definition 2MP Outdoor Day & Night Bullet Camera for clear, detailed surveillance
  • Superior low light sensitivity and adaptive IR LED for optimal performance in dim conditions
  • 10x optical zoom lens with f4.9-49mm / F1.6-3.0 range, DC iris, and auto focus for comprehensive coverage
  • Basic Wide Dynamic Range (WDR) of 75 dB for balanced light levels in high contrast scenes
  • Weatherproof IP67 rating and vandal-proof metal casing for durable outdoor use
  • Efficient H.264 and MJPEG compression technologies with Power over Ethernet (PoE) support for smooth streaming and simplified installation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture crystal-clear footage with this 2MP security camera, day or night for reliable surveillance.
  • Enjoy a wide range of view with the 10x optical zoom, perfect for monitoring large outdoor areas.
  • Weatherproof IP67 casing ensures this outdoor security camera withstands harsh conditions, year-round.
  • Get superior night vision with adaptive IR LEDs, providing clear images up to 40m even in total darkness.
  • Easy remote access lets you view live video and manage security camera settings from anywhere, anytime.
  • Advanced motion detection sends instant alerts, keeping you informed of any activity on your property.

What's in the box:

  • ACTi B45 2MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F1.6-3.0 Lens
  • Sunshield
  • Sunshield Screws
  • Hexagon Screwdriver
  • Camera Base Wrench
  • Bracket Wrench
  • Female Conduit Gland
  • Female Cable Gland
  • Washer
  • Male Conduit Gland
  • Drill Template Sticker
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
