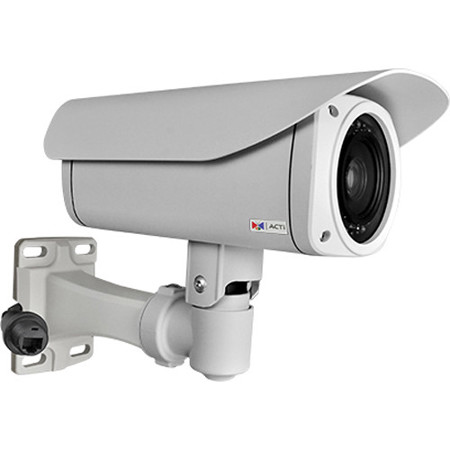

ACTi B46 5MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F1.6-3.0 Lens

ACTi B46 5MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F1.6-3.0 Lens, 10x Optical Zoom, 1920x1080, 30fps, Adaptive IR, Basic WDR, H.264, MJPEG, PoE

SKU: ACTB46
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the 10x Zoom Lens feature mean?

The 10x Zoom Lens feature means that the camera can magnify the image up to 10 times its original size. This allows for detailed monitoring even from a distance.

What is the advantage of having Adaptive IR LED technology?

Adaptive IR LED technology allows the camera to adjust its infrared light intensity to match the scene. This prevents overexposure in night vision mode and ensures clear images regardless of the lighting conditions.

What does the weatherproof rating IP67 mean?

The IP67 rating indicates that the camera is completely protected against dust and can also withstand being submerged in up to 1 meter of water for up to 30 minutes. This makes it suitable for outdoor use in various weather conditions.

What are H.264, MJPEG, and PoE capabilities?

H.264 and MJPEG are video compression formats. H.264 is more efficient and provides higher quality videos at lower bit rates. MJPEG is simpler and easier to process. PoE stands for Power over Ethernet, which allows the camera to receive power and data over a single Ethernet cable, simplifying installation and reducing cable clutter.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi B46 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04MP)

  • Horizontal Resolution

    1500 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED x 27 (850nm)

  • IR Working Distance

    40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Zoom, f4.9 - 49 mm / F1.8 - 3.0

  • Zoom Ratio / Speed

    10x optical / 2.5 sec (wide to tele)

  • Zoom Application

    Camera Installation; Auto Zoom by Event; Manual Operation

  • Iris

    DC iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    49.7 deg. - 5.8 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Privacy Mask

    4 configurable regions for each of 17 preset points

  • Image Enhancement

    Basic WDR (74 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Save video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC card slot (card not included)

  • Power Source

    PoE Class 3 (IEEE802.3af) / 5.6 W; DC 12V (adapter not included) / 4.8 W

  • Environmental Casing

    Weatherproof (IP67 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Pole, Ceiling, Gang box

  • Starting Temperature

    -30 to 50 deg. C / -22 to 122 deg. F(within 30 mins)

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Auto Firmware Upgrade

    Yes

  • GPS Position

    Manual Setting

  • Dimensions (W x D x H)

    317 x 122 x 224mm / 12.48 x 4.80 x 8.82"

  • Weight

    2.3kg / 5.07lbs

  • UPC Code

    0800549789448

About ACTi B46

Be at the forefront of surveillance technology with the B46 5MP Outdoor Day & Night Bullet Camera. This high-tech device boasts a 5-megapixel resolution with 1080p, ensuring crystal clear and detailed images in all conditions. Experience the convenience of round-the-clock surveillance with its sophisticated Day & Night functionality, enhanced by Adaptive IR LED technology.

The advanced 10x Zoom Lens with f4.9 - 49mm / F1.8 - 3.0, DC Iris, and Auto Focus capabilities allow for precise and flexible monitoring. Capture a wider scope with ease, thanks to the camera's wide-angle view. The camera operates smoothly at 30 frames per second at a resolution of 1920 x 1080, delivering seamless and high-quality video footage.

The B46 Bullet Camera is not just innovative but also robust. It comes with a weatherproof rating of IP67, making it resistant to harsh outdoor conditions. Additionally, its vandal-proof metal casing (IK10) ensures it stands up to potential damage, making it a reliable choice for outdoor surveillance.

Equipped with Basic WDR (74 dB), this state-of-the-art camera can handle various lighting conditions, ensuring clear images even in challenging light scenarios. The camera also supports H.264, MJPEG, and PoE capabilities, offering versatility and convenience in its operation.

In summary, the B46 5MP Outdoor Day & Night Bullet Camera is a sophisticated, high-resolution surveillance solution, designed to deliver superior performance in all weather conditions and lighting scenarios.

ACTi B46 Features

  • High-tech 5MP Outdoor Day & Night Bullet Camera with 1080p resolution for clear, detailed images
  • Advanced Adaptive IR LED technology for superior day and night surveillance
  • Sophisticated 10x Zoom Lens with f4.9 - 49mm / F1.8 - 3.0, DC Iris, and Auto Focus capabilities for precise monitoring
  • Weatherproof (IP67) and vandal-proof metal casing (IK10) for durable and reliable outdoor use
  • Basic WDR (74 dB) feature for optimal performance in various lighting conditions
  • Supports H.264, MJPEG, and PoE capabilities for versatile and convenient operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-tech 5MP Outdoor Day & Night Bullet Camera with 1080p resolution for clear, detailed images
  • Advanced Adaptive IR LED technology for superior day and night surveillance
  • Weatherproof (IP67) and vandal-proof metal casing (IK10) for durable and reliable outdoor use
  • Basic WDR (74 dB) feature for optimal performance in various lighting conditions
  • Supports H.264, MJPEG, and PoE capabilities for versatile and convenient operation

What's in the box:

  • ACTi B46 5MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F1.6-3.0 Lens
  • Sunshield
  • Sunshield Screws
  • Hexagon Screwdriver
  • Camera Base Wrench
  • Bracket Wrench
  • Female Conduit Gland
  • Female Cable Gland
  • Washer
  • Male Conduit Gland
  • Drill Template Sticker
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Quick Installation Guide
  • ACTi 3 Year Warranty
