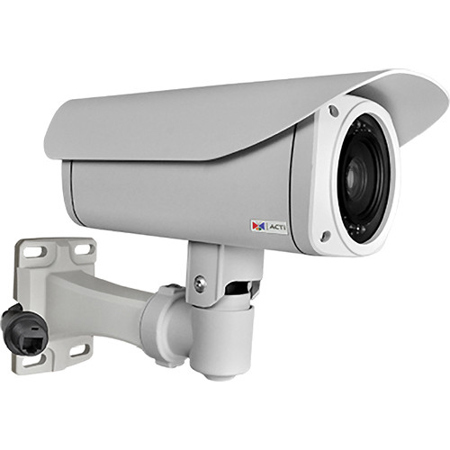

ACTi B47 3MP Outdoor Day & Night Bullet Camera with f5.2-62.4mm / F1.8-3.0 Lens, 12x Optical Zoom

SKU: ACTB47

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi B47 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Effective Pixels

    2048 (H) x 1536 (V) (3.15MP)

  • Horizontal Resolution

    1450 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED x 27 (850nm)

  • IR Working Distance

    40 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Zoom, f5.2 - 62.4 mm / F1.8 - 3.0

  • Zoom Ratio / Speed

    12x optical ; 2.3 sec (wide to tele)

  • Zoom Application

    Camera Installation; Auto Zoom by Event; Manual Operation

  • Iris

    DC iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    50.2 deg. - 4.69 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    20 fps at 2048 x 1536; 30 fps at 1980 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320x240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Privacy Mask

    4 configurable regions for each of 17 preset points

  • Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) and DC 12V / 12W (built-in heater and IR on)

  • Bundled Accessories

    Bracket, Weatherproof connector kit

  • Environmental Casing

    Weatherproof (IP67 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Pole, Ceiling, Gang box

  • Starting Temperature

    -40 to 50 deg. C / -40 to 122 deg. F(within 30 mins)

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67,NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual Setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Dimensions (W x D x H)

    122.4 x 101.37 x 240.4mm / 4.82 x 3.99 x 9.46"

  • Weight

    2.36kg / 5.20lbs

About ACTi B47

An advanced surveillance solution, the B47 3MP Outdoor Day & Night Bullet Camera is engineered to deliver high-tech security monitoring in challenging outdoor environments. This sophisticated camera boasts a high-resolution 3-megapixel sensor capable of capturing crisp, detailed 1080p footage at a smooth 30 frames per second, ensuring that every critical moment is recorded with clarity.

Equipped with an innovative 12x optical zoom lens, ranging from f5.2 to 62.4mm with an aperture of F1.8-3.0, this camera provides exceptional flexibility in framing shots, allowing for precise identification of subjects at varying distances. The lens features a DC iris and Auto Focus functionality, which further enhances image sharpness and accuracy.

The camera's state-of-the-art Day & Night capabilities are augmented by an Adaptive IR LED system, which automatically adjusts to the lighting conditions to provide optimal illumination for night-time surveillance without overexposure. This ensures that the camera captures usable footage around the clock, even in complete darkness.

With Superior Wide Dynamic Range (WDR) of 110 dB, the B47 camera expertly handles scenes with complex lighting, balancing shadows and highlights to produce images with clear visibility in both bright and dark areas. This feature is particularly beneficial for monitoring spaces with sudden light changes, such as entrances with backlighting.

Designed to withstand the elements, the camera is encased in a weatherproof (IP67) and vandal-proof metal housing (IK10), making it an ideal choice for outdoor surveillance where durability and reliability are paramount. The camera's robust construction ensures continuous operation in adverse weather conditions and provides protection against tampering or physical damage.

Furthermore, the camera supports both H.264 and MJPEG compression, optimizing storage and bandwidth usage without compromising video quality. Power over Ethernet (PoE) capability simplifies installation by allowing power and data to be transmitted over a single cable, reducing the need for additional wiring and power sources.

The B47 3MP Outdoor Day & Night Bullet Camera is a perfect fit for those seeking a high-resolution, feature-rich surveillance system that excels in diverse lighting conditions and offers the resilience required for outdoor security. Whether monitoring a parking lot, residential street, or any other area requiring vigilant oversight, this camera stands as a top-tier choice for professional-grade surveillance.

ACTi B47 Features

  • High-resolution 3MP sensor capturing clear 1080p footage at 30 frames per second for detailed surveillance
  • State-of-the-art 12x optical zoom lens with f5.2-62.4mm range and F1.8-3.0 aperture for precise subject identification
  • Adaptive IR LED system for optimal night-time surveillance and Superior Wide Dynamic Range (110 dB) for balanced image in diverse lighting
  • Weatherproof (IP67) and vandal-proof (IK10) metal casing for robust outdoor use and resistance against tampering
  • Supports H.264 and MJPEG compression to optimize storage and bandwidth usage
  • Power over Ethernet (PoE) capability for simplified installation with single cable for power and data transmission

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear video with this 3MP security camera, perfect for outdoor surveillance.
  • Enjoy 12x optical zoom on this outdoor camera, allowing you to focus on distant objects.
  • This IP67 weatherproof camera ensures reliable security, even in harsh conditions.
  • Get superior night vision with built-in IR LEDs, offering clear monitoring up to 40 meters.
  • Remote access lets you view live footage from anywhere, enhancing your home security system.
  • Easy setup with included accessories; mount this bullet camera on walls, poles, or ceilings.

What's in the box:

  • ACTi B47 3MP Outdoor Day & Night Bullet Camera with f5.2-62.4mm / F1.8-3.0 Lens
  • Sunshield
  • Sunshield Screws
  • Hexagon Screwdriver
  • Camera Base Wrench
  • Bracket Wrench
  • Female Conduit Gland
  • Female Cable Gland
  • Washer
  • Male Conduit Gland
  • Drill Template Sticker
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
