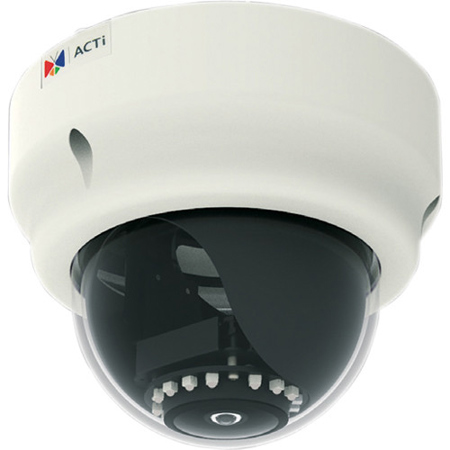

ACTi B53 1080p Day & Night Indoor IR Dome Camera

ACTi B53 1080p Day & Night Indoor IR Dome Camera, 3MP, 30fps, H.264, MJPEG, PoE

SKU: ACTB53
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the significance of the 3 Megapixel resolution in the B53 1080p Day & Night Indoor IR Dome Camera?

The 3 Megapixel resolution in the B53 1080p Day & Night Indoor IR Dome Camera ensures high-definition video quality, allowing for clear and detailed surveillance footage.

What does the day and night functionality in this camera mean?

The day and night functionality in the B53 1080p Day & Night Indoor IR Dome Camera allows for around-the-clock surveillance. The adaptive IR LED technology ensures superior image quality, regardless of the lighting conditions.

What are the benefits of the Wide Dynamic Range (WDR) feature in this camera?

The Wide Dynamic Range (WDR) feature in the B53 1080p Day & Night Indoor IR Dome Camera balances light and dark areas in the same scene for optimal image quality. This ensures clear visibility even in challenging lighting conditions.

What does the Power over Ethernet (PoE) capability in this camera do?

The Power over Ethernet (PoE) capability in the B53 1080p Day & Night Indoor IR Dome Camera simplifies the installation process by reducing the need for separate power cables. This feature also contributes to the camera's overall security.

What are the H.264 and MJPEG compression formats used for in this camera?

The H.264 and MJPEG compression formats in the B53 1080p Day & Night Indoor IR Dome Camera optimize storage space and bandwidth usage without compromising the video quality.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi B53 Specifications

  • Device Type

    Indoor Dome Camera

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3''

  • Effective Pixels

    2048 (H) x 1536 (V) (3.15 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED (Adjustable IR Exposure Compensation) x 10 (850nm)

  • IR Working Distance

    40m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5 approx. 1/2000 sec (manual mode); 1/5 approx. 1/10000 sec (auto mode)

  • TV Lines

    1450

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Fixed focal, f3.6mm / F1.8

  • Iris

    Fixed iris

  • Focus

    Fixed focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    129.56 deg. (overview area), 79 deg. (high detail area)

  • Viewing Angle Adjustment

    Pan: 0 approx. 350 deg. ; Tilt: 17 approx. 163 deg. ; Rotate: 0 approx. 350 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    20 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold, and manual; Brightness;
    Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
    Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE 802.3af) / 6.49W
    DC 12V (adapter not included) / 4.68W

  • Environmental Casing

    Vandal resistant (IK09), Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.7 x 4.5" / 14.48 x 11.43cm

  • Weight

    1.120lbs / 0.51kg

About ACTi B53

Bring enhanced security to your property with the B53 1080p Day & Night Indoor IR Dome Camera. This high-tech security device boasts a 3 Megapixel resolution, delivering 1080p high-definition video for clear and detailed surveillance footage.

The advanced day and night functionality, complemented by adaptive IR LED technology, ensures superior image quality around the clock. Whether it's broad daylight or the middle of the night, this sophisticated camera captures every detail with precision.

Equipped with a fixed lens featuring f1.9mm / F2.8, the B53 Dome Camera provides a super wide-angle view, allowing for comprehensive coverage of your property. The camera operates at a smooth 30 frames per second at a resolution of 1920 x 1080, offering real-time monitoring with no detail missed.

The B53 Dome Camera also boasts a superior Wide Dynamic Range (WDR) of 110dB, effectively balancing light and dark areas in the same scene for optimal image quality. This innovative feature ensures clear visibility even in challenging lighting conditions.

Designed with durability in mind, this state-of-the-art camera is vandal-resistant (IK09), offering added peace of mind for your security needs. With its Power over Ethernet (PoE) capabilities, installation is simplified, reducing the need for separate power cables.

Incorporating H.264 and MJPEG compression formats, the B53 1080p Day & Night Indoor IR Dome Camera optimizes storage space and bandwidth usage without compromising video quality. This advanced security solution is perfect for those seeking 24/7 surveillance in both residential and commercial settings.

ACTi B53 Features

  • High-definition 3 Megapixel resolution for clear, detailed surveillance footage
  • Advanced day and night functionality with adaptive IR LED technology for 24/7 monitoring
  • Fixed lens with f1.9mm / F2.8 and super wide-angle view for comprehensive coverage
  • Superior Wide Dynamic Range (WDR) of 110dB for optimal image quality in varied lighting
  • Vandal-resistant (IK09) design and Power over Ethernet (PoE) capabilities for easy, secure installation
  • Incorporates H.264 and MJPEG compression formats for efficient storage and bandwidth usage

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enjoy crystal-clear 1080p video quality with this ACTi indoor dome security camera.
  • With night vision up to 40m, this camera ensures round-the-clock home surveillance.
  • Get instant alerts with advanced motion detection, enhancing your home security system.
  • Easy installation with PoE, this security camera is a breeze to set up in any room.
  • Remotely access your camera feed from anywhere, keeping your home secure and monitored.
  • This indoor camera is vandal resistant (IK09), ensuring durability and reliable security.

What's in the box:

  • ACTi B53 1080p Day & Night Indoor IR Dome Camera
  • Transparent Dome Cover
  • ACTi 3 Year Limited Warranty
