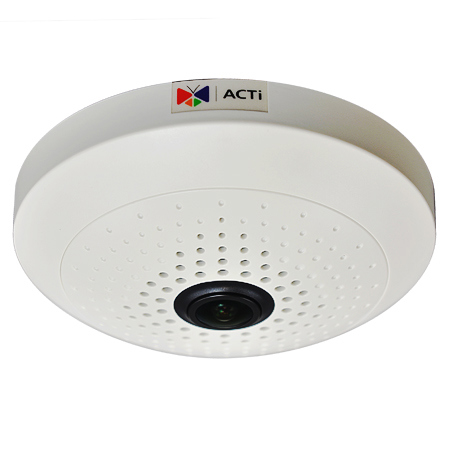

ACTi B54 1080p Day & Night Indoor Fisheye Dome Camera
See all ACTi items

ACTi B54 Day & Night Indoor Fisheye Dome Camera, 2592x1944, 5MP, 15fps, H.264, MJPEG, PoE

SKU: ACTB54

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi B54 Specifications

  • Device Type

    Indoor Fisheye Dome

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2''

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 approx. 1/2000 sec (manual mode); 1/5 approx. 1/10000 sec (auto mode)

  • TV Lines

    1500

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Fixed (Fisheye lens), f1.19 mm / F2.0

  • Iris

    Fixed iris

  • Focus

    Fixed focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    180 deg. (overview area), 109.8 deg. (high detail area)

  • Viewing Angle Adjustment

    Pan: 0 approx. 350 deg. ; Tilt: 17 approx. 163 deg. ; Rotate: 0 approx. 350 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 15 fps at 1440 x 1080;
    15 fps at 1280 x 960; 15 fps at 800 x 600; 15 fps at 640 x 480; 15 fps at 320 x 240

  • View Mode

    Fisheye view, 180 deg. / 360 deg. deg. Panorama, ePTZ

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Basic WDR (74 dB); White balance: automatic, hold and manual; Brightness;
    Contrast; Sharpness (auto); Automatic gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Cable with 3.5mm phone jack

  • Audio-Out

    Cable with 3.5mm phone jack

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;
    Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE 802.3af) / 4W
    DC 12V (adapter not included) / 3.2W

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.91 x 1.88" / 15.01 x 4.78cm

  • Weight

    0.75lbs / 0.34kg

About ACTi B54

Discover the B54 Day & Night Indoor Fisheye Dome Camera, a sophisticated surveillance solution designed to provide comprehensive security monitoring. This state-of-the-art camera boasts a 5-megapixel sensor capable of delivering crisp, high-resolution images at 1080p, ensuring that every detail is captured with clarity.

Equipped with a hemispheric fisheye lens featuring an f1.19mm / F2.0 aperture, the camera provides an expansive field of view, making it ideal for wide-area surveillance. This innovative lens design allows for a panoramic view, reducing the need for multiple cameras and ensuring complete coverage of your indoor space.

The camera's advanced Day & Night functionality enables it to adapt to varying lighting conditions, ensuring consistent performance around the clock. Whether in bright daylight or in low-light environments, the camera captures clear images, making it a reliable choice for 24/7 surveillance.

With Basic Wide Dynamic Range (WDR) of 74 dB, the B54 camera balances the contrast of light and shadow, delivering usable video under challenging lighting conditions. This feature is particularly beneficial in scenarios where the camera faces intense backlight or varying light levels within the same scene.

The camera operates at a smooth 15 frames per second (fps) at a resolution of 2592 x 1944, providing detailed and fluid video playback. This high-tech camera also supports both H.264 and MJPEG compression formats, optimizing storage and bandwidth usage without compromising video quality.

For added convenience, the camera is PoE (Power over Ethernet) compatible, allowing for both power and data transmission over a single network cable. This simplifies installation and reduces the need for additional power supplies, making it an efficient choice for modern security systems.

In summary, the B54 Day & Night Indoor Fisheye Dome Camera is an advanced, high-tech security device that offers sophisticated features such as high resolution, wide dynamic range, and efficient compression. Its innovative design and state-of-the-art capabilities make it an excellent choice for those seeking a reliable and high-performing indoor surveillance camera.

ACTi B54 Features

  • High-resolution 5-megapixel sensor for crisp, detailed images at 1080p
  • Hemispheric fisheye lens with f1.19mm / F2.0 aperture for wide-area surveillance
  • Advanced Day & Night functionality for consistent performance in varying light conditions
  • Basic Wide Dynamic Range (WDR) of 74 dB for balanced lighting in challenging conditions
  • H.264 and MJPEG compression support for optimized storage and bandwidth usage
  • PoE (Power over Ethernet) compatible for simplified installation and reduced power supply needs

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with the 5MP ACTi security camera, ensuring clear surveillance footage.
  • Enjoy a wide 180° view with the fisheye lens, perfect for comprehensive home security coverage.
  • Rely on day & night functionality for 24/7 surveillance, providing peace of mind around the clock.
  • Set up is a breeze with PoE, simplifying installation of your new indoor security camera system.
  • Receive instant alerts with motion detection, keeping you informed of any unusual activity.
  • Access your camera remotely via mobile app for live viewing and playback from anywhere.

What's in the box:

  • ACTi B54 1080p Day & Night Indoor Fisheye Dome Camera
  • Screw Kit
  • Drill Template Sticker
  • Terminal Block (for Power)
  • Terminal Block (for DI/DO)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
