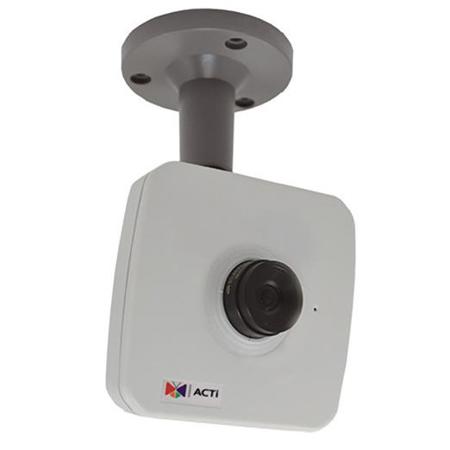

ACTi E11 1MP Indoor IP Cube Camera with Fixed Lens
See all ACTi items

ACTi E11 1MP Indoor IP Cube Camera with Fixed Lens

SKU: ACTE11

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E11 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/4"

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg.K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec
    Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Fixed focal, f4.2mm / F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    CS mount (interchangeable lens)

  • Lens: Horizontal Viewing Angle

    53.8 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    30fps at 1280 x 720
    30fps at 640 x 480
    15fps 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (69dB)
    White balance: automatic, hold and manual
    Brightness
    Contrast
    Sharpness (auto)
    Auto gain control
    Digital noise reduction
    Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Built-in microphone

  • Audio: Out

    3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPs encryption
    Password protected user levels
    Anonymous login
    IEEE802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Upload video, Snapshot to FTP server

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.15W

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Integration: Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    3.8 x 3.8 x 1.8" / 9.65 x 9.65 x 4.57cm

  • Weight

    0.45lbs / 0.20kg

About ACTi E11

• 1 Megapixel with 720p
• Fixed Lens with f4.2mm / F1.8
• Basic WDR (69 dB)
• 30 fps at 1280 x 720

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear 720p HD video with this ACTi security camera for reliable surveillance.
  • Enjoy easy setup with this indoor IP camera, perfect for home or small business use.
  • Get reliable monitoring with motion detection, sending alerts to keep you informed.
  • Use remote access to view live video on your devices, ensuring peace of mind.
  • This compact cube camera offers a fixed lens with a wide 53.8° viewing angle.
  • Benefit from basic WDR, improving image quality in varying light conditions.

What's in the box:

  • ACTi E11 Indoor IP Cube Camera with Basic WDR & Fixed Lens
  • Bracket
  • ACTi 3 Year Limited Warranty
