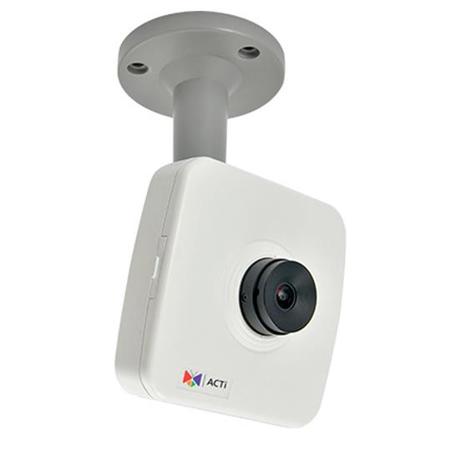

ACTi E14 10MP Indoor IP Cube Camera with Fixed Lens

ACTi E14 10MP Indoor IP Cube Camera with Fixed Lens

SKU: ACTE14
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the E14 Indoor IP Cube Camera?

The E14 Indoor IP Cube Camera has a high-resolution 10-megapixel sensor that delivers 4K and 1080p video quality.

What is the purpose of the Basic Wide Dynamic Range (WDR) in this camera?

The Basic Wide Dynamic Range (WDR) of 70 dB in the E14 Indoor IP Cube Camera balances light and dark areas in the image to provide clear visuals in high-contrast environments.

What is the benefit of the Power over Ethernet (PoE) feature?

The Power over Ethernet (PoE) feature simplifies the installation of the E14 Indoor IP Cube Camera by eliminating the need for separate power cables.

What codecs does the E14 Indoor IP Cube Camera support?

The E14 Indoor IP Cube Camera supports H.264 HP and MJPEG codecs. These codecs help to optimize storage space while maintaining high-quality video.

What is the frame rate of the E14 Indoor IP Cube Camera?

The E14 Indoor IP Cube Camera offers a frame rate of 30 fps at a 1920 x 1080 resolution, ensuring smooth, real-time video playback.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E14 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66 MP)

  • Day / Night

    No

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec
    Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm / F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    CS mount (interchangeable lens)

  • Lens: Horizontal Viewing Angle

    99 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    7fps at 3648 x 2736
    7fps at 3648 x 2160
    7fps at 2592 x 1944
    7fps at 2048 x 1536
    30fps at 1920 x 1080
    30fps at 1280 x 720
    30fps at 800 x 600
    30fps at 640 x 480
    15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB)
    White balance automatic, hold, and manual
    Brightness
    Contrast
    Sharpness (auto)
    Auto gain control
    Digital noise reduction
    Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Built-in microphone

  • Audio: Out

    3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPs encryption
    Password protected user levels
    Anonymous login
    IEEE802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)
    Sound detection

  • Alarm: Response

    Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP server

  • Interface: Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.84W

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Integration: Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: GPS Position

    Manual setting

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    3.8 x 3.8 x 1.8" / 9.65 x 9.65 x 4.57cm

  • Weight

    0.82lbs / 0.37kg

About ACTi E14

It's time to elevate your indoor surveillance with the E14 Indoor IP Cube Camera. This high-performance device boasts a 10-megapixel resolution, delivering crystal-clear 4K and 1080p video quality that captures every detail. The fixed lens with an f3.6mm/F1.8 aperture ensures sharp, well-lit images, even in challenging lighting conditions.

The E14 Indoor IP Cube Camera is equipped with Basic Wide Dynamic Range (WDR) of 70 dB, balancing light and dark areas to provide clear images in high-contrast environments. This feature is essential for indoor surveillance, ensuring that every corner of your space is visible and detailed.

With a frame rate of 30 fps at a 1920 x 1080 resolution, this camera guarantees smooth, real-time video playback. The wide-angle lens offers a comprehensive view of your indoor space, making it an ideal choice for monitoring large areas.

The camera supports H.264 HP and MJPEG codecs, optimizing your storage space while maintaining high-quality video. Plus, with Power over Ethernet (PoE) capability, the E14 Indoor IP Cube Camera simplifies installation by eliminating the need for separate power cables.

In summary, the E14 Indoor IP Cube Camera with Basic WDR & Fixed Lens is a powerful, efficient, and reliable choice for your indoor surveillance needs. Its superior image quality, advanced features, and easy installation make it a standout choice in the realm of IP cameras.

ACTi E14 Features

  • High-resolution 10MP Indoor IP Cube Camera for superior surveillance
  • Fixed lens with f3.6mm/F1.8 aperture for sharp, well-lit images
  • Basic Wide Dynamic Range (WDR) of 70 dB for balanced, clear visuals in high-contrast environments
  • Smooth video playback with 30 fps at 1920 x 1080 resolution
  • Supports H.264 HP and MJPEG codecs for optimized storage and quality
  • Power over Ethernet (PoE) capability for simplified installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear surveillance video with the ACTi E14's impressive 10MP image sensor.
  • Enjoy a wide 99° view, perfect for comprehensive indoor security camera coverage of any room.
  • Get motion detection alerts directly to your device, enhancing your home security system.
  • Use the built-in microphone for sound detection, adding an extra layer to your security cameras.
  • Quickly access live video via your mobile app for remote monitoring and peace of mind.
  • Benefit from Basic WDR, ensuring clear images even in rooms with varying light conditions.

What's in the box:

  • ACTi E14 Indoor IP Cube Camera with Basic WDR & Fixed Lens
  • Bracket
  • ACTi 3 Year Limited Warranty
