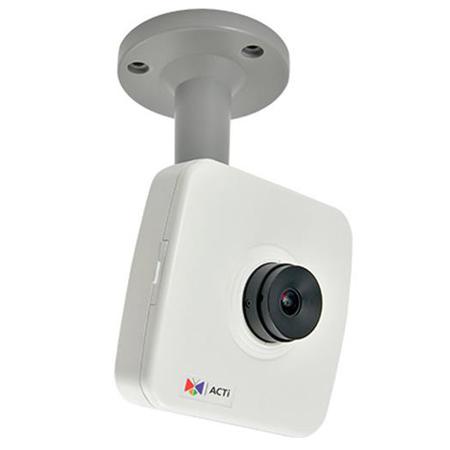

ACTi E15 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens, 5MP, 2592x1944, 15fps, H.264, MJPEG, PoE

SKU: ACTE15

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E15 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04 MP)

  • Day / Night

    No

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec
    Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1350

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed (Fisheye lens), f1.19mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview Area: 180 deg.
    High Detail Area: 109.8 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2592 x 1944
    15fps at 2048 x 1536
    15fps at 1440 x 1080
    15fps at 1280 x 960
    15fps at 800 x 600
    15fps at 640 x 480
    15fps at 320 x 240

  • Video: View Mode

    Fisheye view, 180 deg. / 360 deg. Panorama, ePTZ

  • Video: Multi-Streaming

    Simultaneous dual steams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB)
    White balance automatic, hold and manual
    Brightness
    Contrast
    Sharpness (auto)
    Auto gain control
    2D+3D digital noise reduction
    Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Built-in microphone

  • Audio: Out

    3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPS encryption
    Password protected user levels
    Anonymous login
    IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)
    Sound detection

  • Alarm: Response

    Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP

  • Interface: Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.55W

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Integration: Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: GPS Position

    Manual setting

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    3.8 x 3.8 x 1.8" / 9.65 x 9.65 x 4.57cm

  • Weight

    0.54lbs / 0.24kg

About ACTi E15

The E15 Indoor IP Fisheye Cube Camera is a high-resolution, 5-megapixel device designed to deliver superior image quality for your indoor surveillance needs. This advanced camera features a fixed lens with an f1.19mm / F2.0 aperture, capable of capturing clear, detailed images even in low-light conditions.

Equipped with Basic Wide Dynamic Range (WDR) technology, the camera can balance contrasting lighting conditions, ensuring a dynamic range of up to 74 dB. This means you can expect clear, detailed images even in challenging light scenarios.

The camera's impressive performance is further enhanced by its ability to record at a speed of 15 frames per second at a resolution of 2592 x 1944. This ensures smooth, high-definition video capture for comprehensive indoor monitoring.

One of the standout features of the E15 Indoor IP Fisheye Cube Camera is its 180/360-degree fisheye view. This wide field of view allows for extensive area coverage, reducing the number of cameras needed for full surveillance.

Supporting both H.264 and MJPEG compression formats, this camera ensures efficient data management for your surveillance system. Additionally, the camera is PoE (Power over Ethernet) compatible, allowing for simplified installation and reduced cabling.

In summary, the E15 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens is a high-performance, feature-rich surveillance solution, designed to deliver superior image quality and extensive coverage for your indoor security needs.

ACTi E15 Features

  • High-resolution 5-megapixel Indoor IP Fisheye Cube Camera for superior indoor surveillance
  • Fixed lens with f1.19mm / F2.0 aperture for clear, detailed images in low-light conditions
  • Basic Wide Dynamic Range (WDR) technology ensuring clear images in contrasting light
  • Records at 15 frames per second at 2592 x 1944 resolution for high-definition video capture
  • 180/360-degree fisheye view for extensive area coverage with fewer cameras
  • Supports H.264 and MJPEG compression formats for efficient data management
  • PoE (Power over Ethernet) compatibility for simplified installation and reduced cabling

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture every detail with this 5MP security camera, perfect for home or office use.
  • Enjoy a wide 180° view with the fisheye lens, minimizing blind spots for comprehensive surveillance.
  • Get reliable monitoring with motion detection, sending alerts directly to your device for quick response.
  • Experience easy setup with PoE, simplifying installation and reducing cable clutter for your IP camera.
  • Access your camera remotely via your smartphone or computer for real-time viewing anytime, anywhere.
  • Benefit from clear video even in low light with basic WDR, ensuring quality night vision recording.

What's in the box:

  • ACTi E15 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens
  • Bracket
  • ACTi 3 Year Limited Warranty
