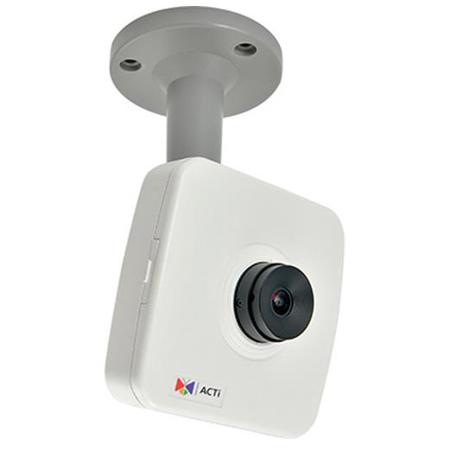

ACTi E16 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens
See all ACTi items

ACTi E16 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens, 10MP, 3648x2736, 7fps, H.264, MJPEG, PoE

SKU: ACTE16

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E16 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66 MP)

  • Day / Night

    No

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec
    Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed (Fisheye lens), f1.37mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview Area: 180 deg.
    High Detail Area: 109.8 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    7fps at 3648 x 2736
    7fps at 2592 x 1944
    7fps at 2048 x 1536
    7fps at 1440 x 1080
    7fps at 1280 x 960
    7fps at 800 x 600
    7fps at 640 x 480
    7fps at 320 x 240

  • Video: View Mode

    Fisheye view, 180 deg. / 360 deg. Panorama, ePTZ

  • Video: Multi-Streaming

    Simultaneous dual steams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70 dB)
    White balance automatic, hold and manual
    Brightness
    Contrast
    Sharpness (auto)
    Auto gain control
    2D+3D digital noise reduction
    Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Built-in microphone

  • Audio: Out

    3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPS encryption
    Password protected user levels
    Anonymous login
    IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)
    Sound detection

  • Alarm: Response

    Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP

  • Interface: Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 3.84W

  • Mount Type

    Wall, Ceiling

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector)

  • Integration: Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: GPS Position

    Manual setting

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (W x H x D)

    3.8 x 3.8 x 1.8" / 9.65 x 9.65 x 4.57cm

  • Weight

    0.55lbs / 0.25kg

About ACTi E16

Take your home security to the next level with the advanced E16 Indoor IP Fisheye Cube Camera. This high-tech security device boasts an impressive 10-megapixel resolution, ensuring crystal-clear, detailed images and video every time. The sophisticated fixed lens with f1.37mm / F2.0 enhances image quality, capturing every detail with precision.

Experience the benefits of Basic WDR (70 dB), a feature designed to balance lighting conditions, ensuring optimal visibility even in challenging light scenarios. With a frame rate of 7 fps at a resolution of 3648 x 2736, this innovative camera delivers smooth, high-quality video footage.

One of the standout features of this state-of-the-art camera is its 180/360-degree fisheye view. This wide-angle view allows for comprehensive monitoring of a larger area, making it an ideal choice for those seeking extensive coverage.

The E16 Indoor IP Fisheye Cube Camera also supports H.264 and MJPEG codecs and is powered by PoE (Power over Ethernet), making installation and operation a breeze. This advanced security camera is not just a device, but a reliable solution for your home monitoring needs.

ACTi E16 Features

  • High-tech Indoor IP Fisheye Cube Camera with 10-megapixel resolution for clear, detailed images and video
  • Sophisticated fixed lens with f1.37mm / F2.0, enhancing image quality and precision
  • Features Basic WDR (70 dB) for optimal visibility even in challenging light conditions
  • Delivers smooth video footage at 7 fps with a resolution of 3648 x 2736
  • 180/360-degree fisheye view for comprehensive monitoring of a larger area
  • Supports H.264 and MJPEG codecs, powered by PoE (Power over Ethernet) for easy installation and operation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with this 10MP security camera, ensuring crystal-clear surveillance footage.
  • Enjoy a wide 180° view with the fisheye lens, perfect for comprehensive home security coverage.
  • Get motion detection alerts directly on your mobile app, keeping you informed of any activity.
  • Install this indoor IP camera easily on walls or ceilings for optimal placement and monitoring.
  • Use the basic WDR feature for balanced images in varying light, enhancing video clarity.
  • Rely on H.264 compression for efficient video storage without sacrificing crucial image quality.

What's in the box:

  • ACTi E16 Indoor IP Fisheye Cube Camera with Basic WDR & Fixed Lens
  • Bracket
  • ACTi 3 Year Limited Warranty
