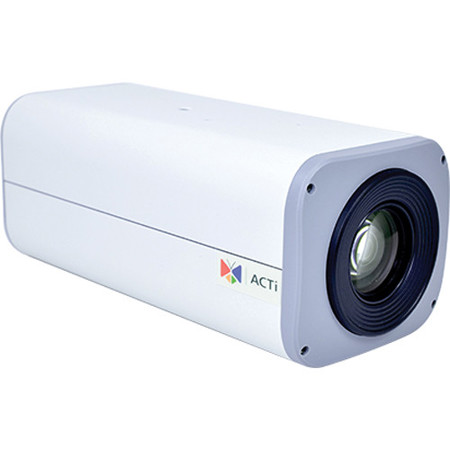

ACTi E210 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4-4.0 Lens

ACTi E210 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4-4.0 Lens, 4.3x Optical Zoom

SKU: ACTE210
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the E210 10MP Day & Night Box Camera?

The E210 10MP Day & Night Box Camera provides high-resolution images with 4K and 1080p capabilities.

Does the E210 10MP Day & Night Box Camera have a zoom feature?

Yes, the camera features a 10x zoom lens with a focal length range of f3.1 - 13.3mm.

Can the E210 10MP Day & Night Box Camera operate in low light conditions?

Absolutely, the camera has a day and night functionality that ensures optimal performance in various lighting conditions.

What is the frame rate of the E210 10MP Day & Night Box Camera?

The camera operates at a frame rate of 30 frames per second at a 1920 x 1080 resolution.

Does the E210 10MP Day & Night Box Camera support different compression formats?

Yes, the camera supports both H.264 and MJPEG compression formats, offering flexibility in balancing image quality and storage needs.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E210 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66MP)

  • Horizontal Resolution

    1450 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F2.8 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Zoom, f3.1 - 13.3mm / F1.4 - 13.3

  • Zoom Ratio /Speed

    4.3x optical / 3 sec (wide to tele)

  • Zoom Application

    Camera installation

  • Iris

    P-iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    109 deg. - 26.4 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536;30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Privacy Mask

    4 Configurable regions

  • Image Enhancement

    Basic WDR (70 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Text Overlay

    User defined text on video

  • Image Orientation

    Image flip and mirror

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 12 W (built-in heater on)

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Auto Firmware Upgrade

    Yes

  • GPS Position

    Manual Setting

  • Dimensions (W x D x H)

    71.4 x 80.6 x 177.26mm / 2.81 x 3.17 x 6.98"

  • Weight

    661g / 23.32oz

About ACTi E210

From capturing high-resolution images to providing seamless day and night surveillance, the E210 10MP Day & Night Box Camera is a versatile solution for your security needs. This powerful box camera boasts a 10-megapixel sensor, delivering crisp, 4K and 1080p resolution images that ensure no detail goes unnoticed.

The camera's day and night functionality ensures optimal performance around the clock. Whether it's the bright light of day or the low light of night, this camera is equipped to handle it all.

The E210 camera features a 10x zoom lens with a focal length range of f3.1 - 13.3mm and an aperture range of F1.4 - 4.0. This P-Iris lens, coupled with auto-focus capabilities, allows for precise focusing during installation and ensures sharp, clear images at all times.

With a frame rate of 30 frames per second at a 1920 x 1080 resolution, this camera provides smooth, high-quality video footage. The Basic Wide Dynamic Range (WDR) of 70 dB further enhances the image quality by balancing the lighting in scenes with high contrast lighting conditions.

The E210 camera supports both H.264 and MJPEG compression formats, offering flexibility in balancing image quality and storage needs. Additionally, the camera's Power over Ethernet (PoE) feature simplifies installation by eliminating the need for separate power cables.

In summary, the E210 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4-4.0 Lens, 4.3x Optical Zoom, 1920x1080, 30fps, Basic WDR, H.264, MJPEG, PoE is a robust and reliable choice for high-quality surveillance.

ACTi E210 Features

  • High-resolution 10MP box camera with 4K and 1080p capabilities for crisp, detailed images
  • Day and night functionality for round-the-clock surveillance
  • 10x zoom lens with f3.1 - 13.3mm focal length and F1.4 - 4.0 aperture for precise focusing
  • 30 frames per second at 1920 x 1080 resolution for smooth, high-quality video footage
  • Basic Wide Dynamic Range (WDR) of 70 dB for balanced lighting in high contrast scenes
  • Supports H.264 and MJPEG compression formats for flexible storage solutions
  • Power over Ethernet (PoE) feature for simplified installation process

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear footage with this security camera's impressive 10MP image sensor.
  • See clearly, day or night, thanks to the camera's reliable day & night functionality.
  • Remotely monitor your property with easy network/IP access for peace of mind.
  • Get a closer look with the 4.3x optical zoom, perfect for detailed surveillance needs.
  • Advanced motion detection alerts you to any suspicious activity, enhancing security.
  • Enjoy flexible mounting options; set up your security camera on walls, ceilings, or poles.

What's in the box:

  • ACTi E210 10MP Day & Night Box Camera with f3.1-13.3mm / F1.4-4.0 Lens
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Terminal Block (for Serial Port)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
