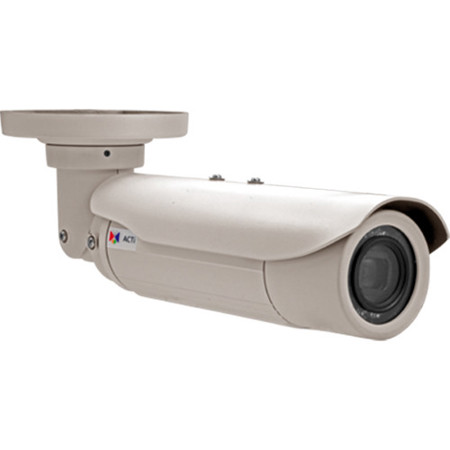

ACTi E417 2MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F2.8-3.5 Lens
See all ACTi items

ACTi E417 2MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F2.8-3.5 Lens, 10x Optical Zoom

SKU: ACTE417

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the E417 2MP Outdoor Day & Night Bullet Camera?

The E417 bullet camera has a high resolution of 2 megapixels, delivering full HD 1080p images for clear and detailed surveillance.

Does the E417 camera work well in low light conditions?

Yes, the E417 bullet camera is equipped with superior low light sensitivity and adaptive IR LED technology, ensuring optimal visibility in low light and night conditions.

What is the zoom capability of the E417 camera?

The E417 camera features a 10x optical zoom lens with a range of f4.9 - 49mm / F2.8 - 3.5. It also has an adaptive iris and auto-focus capabilities for sharp, focused images.

Is the E417 bullet camera durable and weatherproof?

Yes, the E417 camera is housed in a weatherproof (IP68) and vandal-proof metal casing (IK10), making it ideal for outdoor surveillance in various weather conditions.

What type of analytics does the E417 camera offer?

The E417 bullet camera features built-in analytics, providing valuable insights for enhanced security. It also supports H.264 and MJPEG codecs for efficient video compression.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E417 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.8"

  • Effective Pixels

    1944 (H) x 1224 (V) (2.38MP)

  • Horizontal Resolution

    1100 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Superior

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED x 18 (850nm)

  • IR Working Distance

    30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    56 dB

  • Focal Length / Aperture

    Zoom, f4.9 - 49mm / F2.8 - 3.5

  • Zoom Ratio / Speed

    10x optical / 3.3 sec (wide to tele)

  • Zoom Application

    Camera installation

  • Iris

    Adaptive iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    60 deg. - 7.3 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Max. Frame Rate vs. Resolution

    60 fps at 1920 x 1080; 60 fps at 1280 x 720; 30 fps at 640 x 480; 30 fps at 320 x 240

  • Multi-Streaming

    Simultaneous triple streams based on video configurations

  • Bit Rate

    128 Kbps - 12 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer

  • Text Overlay

    User defined text on video

  • Privacy Mask

    20 configurable regions

  • Built-in Analytics

    Object Based Motion Detection, Tamper, Digital Image Stabilizer, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, , Loitering

  • Image Orientation

    Image flip, mirror and rotation

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Cable with 3.5mm phone jack

  • Audio-Out

    Cable with 3.5mm phone jack

  • Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (10 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 9 W; DC 12V (adapter not included)

  • Bundled Accessories

    Integrated bracket

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Pole, Ceiling, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F(within 30 mins)

  • Operating Temperature

    -30 to 50 deg. C / -22 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Auto Firmware Upgrade

    Yes

  • GPS Position

    Manual Setting

  • Dimensions (W x D x H)

    119.42 x 113 x 291mm / 4.70 x 4.45 x 11.46"

  • Weight

    1120g / 39.51oz

About ACTi E417

Be prepared for superior surveillance with the E417 2MP Outdoor Day & Night Bullet Camera. This high-performance camera boasts a 2-megapixel resolution, delivering crystal-clear 1080p images that capture every detail. Whether it's day or night, this camera's superior low light sensitivity and adaptive IR LED technology ensure optimal visibility.

The camera's 10x optical zoom lens, with a range of f4.9 - 49mm / F2.8 - 3.5, features an adaptive iris and auto-focus capabilities, making installation a breeze while ensuring sharp, focused images. With an extreme Wide Dynamic Range (WDR) of 145 dB, the camera can handle high-contrast lighting with ease, delivering balanced, high-quality images.

Experience smooth video playback with a frame rate of 60 fps at a resolution of 1920 x 1080 (60 Hz). This ensures you won't miss a moment, capturing every movement with precision.

Designed for durability, this bullet camera is housed in a weatherproof (IP68) and vandal-proof metal casing (IK10), making it ideal for outdoor surveillance in any weather conditions.

The E417 2MP Outdoor Day & Night Bullet Camera also features built-in analytics, providing valuable insights for enhanced security. With support for H.264 and MJPEG codecs, this camera ensures efficient video compression without compromising on image quality. Power over Ethernet (PoE) technology simplifies installation, providing power and network connectivity through a single cable.

In summary, the E417 2MP Outdoor Day & Night Bullet Camera is a robust, high-performance surveillance solution, offering superior image quality, advanced features, and durable construction for reliable security around the clock.

ACTi E417 Features

  • 2MP high-resolution camera with full HD 1080p clarity for outdoor surveillance
  • Advanced day & night vision with adaptive IR LED and superior low light sensitivity
  • 10x optical zoom lens with auto-focus and adaptive iris for precise image capture
  • Extreme WDR of 145 dB to handle challenging lighting conditions seamlessly
  • Durable, weatherproof (IP68) and vandal-proof (IK10) metal casing for robust protection
  • Built-in analytics and support for H.264, MJPEG codecs with efficient PoE installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear footage with this 2MP security camera, perfect for home or business use.
  • Enjoy superior night vision with adaptive IR LEDs, ensuring clear surveillance up to 98 feet.
  • Weatherproof IP68 rated casing protects your investment, withstanding harsh outdoor conditions.
  • Remotely monitor your property with object-based motion detection and real-time alerts.
  • Install this outdoor security camera easily on walls, poles, or ceilings with included bracket.
  • Benefit from 10x optical zoom, allowing you to focus on distant details with this bullet camera.

What's in the box:

  • ACTi E417 2MP Outdoor Day & Night Bullet Camera with f4.9-49mm / F2.8-3.5 Lens
  • Bracket Plate
  • Sunshield
  • Mounting Screw Kit
  • Sunshield Screw Kit
  • Conduit Gland
  • Cable Gland
  • 2x Gland Rubber Rings
  • Drill Template
  • Terminal Block
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
