ACTi E41B 1MP Outdoor Day & Night Bullet Camera, f2.8-12mm/F1.4 Vari-Focal Lens
See all ACTi items

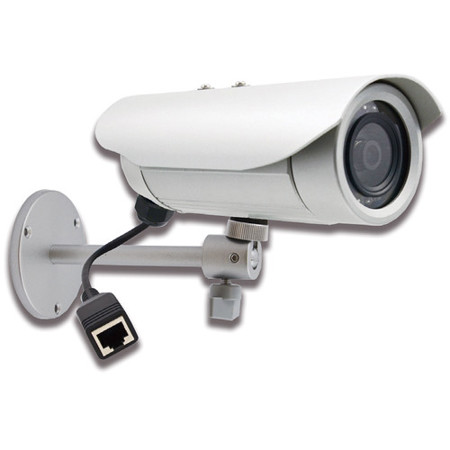

ACTi E41B 1MP Outdoor Day & Night Bullet Camera with f2.8-12mm / F1.4 Vari-Focal Lens

SKU: ACTE41B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E41B Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/4"

  • Effective Pixels

    1280 (H) x 800 (V) (1.02MP)

  • Horizontal Resolution

    700 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED x 15 (850nm )

  • IR Working Distance

    30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    1/5- 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • S/N Ratio

    52 dB

  • Focal Length / Aperture

    Vari-focal, f2.8 - 12 mm / F1.4

  • Iris

    Fixed iris

  • Focus

    Manual focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    59.8 deg. - 24.7 deg.

  • Video Compression

    H.264 (Baseline/ Main/ High profile), MJPEG

  • Maximum Frame Rate vs. Resolution

    30 fps at 1280 x 720; 30 fps at 800 x600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual steams based on two configurations

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Image Enhancement

    Basic WDR (74 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • On-Screen Graphics

    User defined image layer on video

  • Image Orientation

    Image flip, mirror & rotation

  • Audio Compression

    8 kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio-In

    Cable with 3.5mm phone jack

  • Audio-Out

    Cable with 3.5mm phone jack

  • Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, cable without connector

  • Digital Output

    1, cable without connector

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 4.32 W (IR on)

  • Bundled Accessories

    Bracket

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X IK10 (metal casing), UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • Auto Firmware Upgrade

    Yes

  • GPS Position

    Manual Setting

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (Diameter x L)

    77 x 218mm / 3.03 x 8.58"

  • Weight

    955g / 33.69oz

About ACTi E41B

Just unveiled, the E41B 1MP Outdoor Day & Night Bullet Camera is a high-tech surveillance solution designed for those who demand superior image quality and robust performance. This advanced camera boasts a 1-megapixel sensor, delivering crisp 720p resolution video footage.

Engineered with a sophisticated f2.8-12mm / F1.4 vari-focal lens, this camera ensures detailed and clear imaging, regardless of the distance or lighting conditions. The innovative adaptive IR LED technology allows for exceptional night vision, making it an ideal choice for round-the-clock surveillance.

The E41B camera features a basic Wide Dynamic Range (WDR) of 74 dB, enabling it to capture balanced images even in challenging light scenarios. With a high frame rate of 30 fps at 1280 x 720, you can expect smooth, real-time video without any lag.

Built to withstand the elements, this state-of-the-art camera comes with an IP68 rating, certifying it as weatherproof. Its vandal-proof metal casing (IK10) further enhances its durability, making it a reliable choice for outdoor surveillance.

The E41B 1MP Outdoor Day & Night Bullet Camera also supports H.264 and MJPEG codecs, ensuring efficient data compression without compromising on video quality. The Power over Ethernet (PoE) feature simplifies installation by allowing both power and data transmission over a single Ethernet cable.

In summary, the E41B 1MP Outdoor Day & Night Bullet Camera is a sophisticated, high-performance surveillance solution that combines superior image quality, advanced features, and robust construction for reliable outdoor use.

ACTi E41B Features

  • 1MP high-resolution bullet camera with 720p video clarity
  • Adaptive IR LED for superior night vision capabilities
  • f2.8-12mm / F1.4 vari-focal lens for versatile surveillance
  • Basic WDR (74 dB) to handle contrasting lighting scenarios
  • Smooth 30 fps video at 1280 x 720 for real-time monitoring
  • Weatherproof (IP68) and vandal-proof (IK10) metal casing for outdoor durability
  • Supports H.264 and MJPEG codecs with efficient data compression
  • Power over Ethernet (PoE) for streamlined installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear 1MP video, day or night, with this outdoor security camera's progressive scan CMOS sensor.
  • Weatherproof IP68 casing ensures reliable surveillance, protecting your property in any environment.
  • Get detailed monitoring with a vari-focal lens (f2.8-12mm) offering adjustable viewing angles for your needs.
  • Adaptive IR LEDs provide up to 30m night vision, ensuring your home security is covered even in darkness.
  • Motion detection alerts sent straight to your device, so you're always aware of suspicious activity.
  • Easy setup and remote access via your web browser, making home surveillance simple and convenient.

What's in the box:

  • ACTi E41B 1MP Outdoor Day & Night Bullet Camera with f2.8-12mm / F1.4 Vari-Focal Lens
  • Conduit Gland
  • Cable Gland
  • Washer
  • Mounting Screw Kit
  • Sunshield Screw Kit
  • Bracket
  • Bracket Plate
  • Sunshield
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
