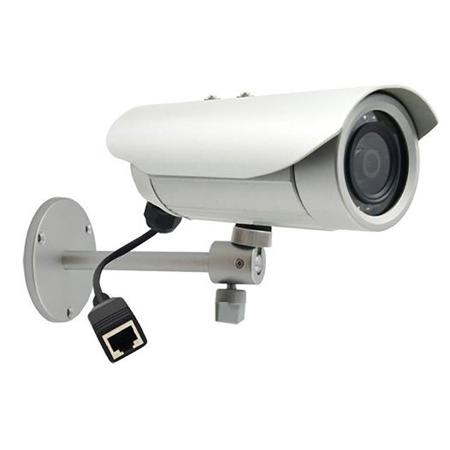

ACTi E48 10MP Day/Night Outdoor IP Bullet Camera with Vari-focal Lens

ACTi E48 10MP Day/Night Outdoor IP Bullet Camera with Vari-Focal Lens

SKU: ACTE48
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the E48 Day/Night Outdoor IP Bullet Camera?

The E48 Day/Night Outdoor IP Bullet Camera has a 10-megapixel sensor which provides high-resolution images in both 4K and 1080p.

What does the Adaptive IR LED feature do?

The Adaptive IR LED feature allows the E48 camera to provide superior surveillance functionality both during the day and at night.

How does the vari-focal lens work?

The vari-focal lens, ranging from f3.1 to 13.3mm and F1.4 to 4.0, allows for versatile and precise focusing.

Is the E48 Day/Night Outdoor IP Bullet Camera weather and vandal proof?

Yes, the E48 camera is built to withstand harsh weather conditions with an IP67 rating for dust and water resistance. It also has a vandal-proof metal casing (IK10) for protection against physical impacts.

What codecs does the E48 camera support and how does it simplify installation?

The E48 camera supports both H.264 and MJPEG codecs. It simplifies installation by featuring Power over Ethernet (PoE) technology which eliminates the need for separate power cables.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E48 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 10 (850 nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Vari-focal, f3.1 - 13.3mm / F1.4 - 4.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    100.5 to 25.8 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    7fps at 3648 x 2736; 7fps at 3648 x 2160; 7fps at 2592 x 1944; 7fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Cable with 3.5mm phone jack

  • Audio: Out

    Cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control Center; Change camera settings; Command other devices; E-mail notification with snapshots;; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, cable without connector

  • Digital Output

    1, cable without connector

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 5.76W

  • Environmental Casing

    Weatherproof (IP67 rated); Vandal proof metal casing (IK10)

  • Mount Type

    Wall, Ceiling, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (L x W x H)

    13.7 x 3.6 x 4.8" / 347.98 x 91.44 x 121.92mm

  • Weight

    2.98lbs / 1.35kg

About ACTi E48

While capturing high-resolution images is a breeze with the E48 Day/Night Outdoor IP Bullet Camera, its 10-megapixel sensor ensures crystal clear visuals in both 4K and 1080p. This advanced outdoor surveillance camera is equipped with an Adaptive IR LED, providing superior day and night functionality. The vari-focal lens, ranging from f3.1 to 13.3mm and F1.4 to 4.0, allows for versatile and precise focusing.

The E48 camera also features Basic Wide Dynamic Range (WDR) with a 70 dB rating, ensuring balanced lighting in all captured footage. With a frame rate of 30 fps at a resolution of 1920 x 1080, you can expect smooth, high-definition video playback. The super wide-angle lens offers an expansive field of view, making it ideal for monitoring large outdoor areas.

Built to withstand harsh weather conditions, this IP bullet camera boasts an IP67 rating, signifying its dust and water resistance. Additionally, its vandal-proof metal casing (IK10) ensures durability and protection against physical impacts.

The camera supports both H.264 and MJPEG codecs, providing flexibility in balancing video quality and storage needs. Furthermore, with Power over Ethernet (PoE) technology, the E48 camera simplifies installation by eliminating the need for separate power cables.

In summary, the E48 Day/Night Outdoor IP Bullet Camera is a robust, high-performance solution for your outdoor surveillance needs, offering superior image quality, adaptability, and resilience.

ACTi E48 Features

  • High-resolution 10-megapixel sensor for clear 4K and 1080p visuals
  • Adaptive IR LED for superior day and night surveillance
  • Vari-focal lens with f3.1 - 13.3mm / F1.4 - 4.0 for precise focusing
  • Basic WDR (70 dB) for balanced lighting in all footage
  • Weatherproof (IP67) and vandal-proof (IK10) for robust outdoor use
  • Supports H.264 and MJPEG codecs with Power over Ethernet (PoE) technology for easy installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear footage with the 10MP ACTi security camera, day or night.
  • This outdoor security camera has weatherproof casing, perfect for any climate.
  • Get superior night vision with adaptive IR LEDs, reaching up to 30m for clear surveillance.
  • Easy setup with PoE, plus remote access via mobile app for 24/7 monitoring.
  • Advanced motion detection sends instant alerts, so you're always in the know.
  • Deter vandalism with the IK10-rated metal casing, built tough for ultimate protection.

What's in the box:

  • ACTi E48 Day/Night Outdoor IP Bullet Camera
  • Bracket
  • Bracket Plate
  • Sunshield
  • Drill Template
  • Mounting Screw Kit
  • Sunshield Screw Kit
  • Conduit Gland
  • Cable Gland
  • 2x Washer
  • Terminal Block
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
