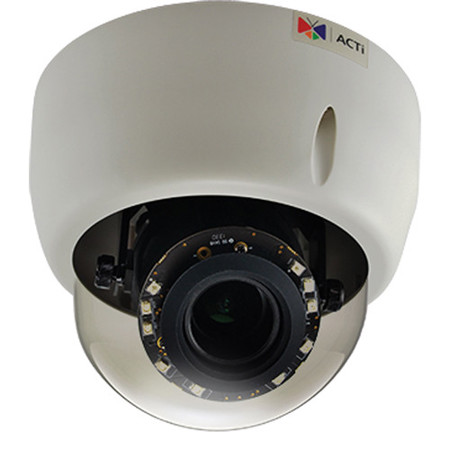

ACTi E617 10MP Indoor Day & Night Dome Camera with f3.1-13.3mm / F1.4-4.0 Lens

ACTi E617 10MP Indoor Day & Night Dome Camera with f3.1-13.3mm / F1.4-4.0 Lens, 4.3x Optical Zoom

SKU: ACTE617
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the benefit of the Adaptive IR LED technology in the E617 10MP Indoor Day & Night Dome Camera?

The Adaptive IR LED technology allows the camera to adjust its infrared light projection based on the distance of an object. This ensures clear and detailed imaging in low light or night conditions, enhancing the camera's surveillance capabilities.

What does the Basic Wide Dynamic Range (WDR) feature do?

The Basic WDR feature in the camera helps balance the contrast of light levels in an image. This means it can capture clear images even in challenging lighting scenarios where there are both very bright and very dark areas.

How does the 4.3x optical zoom enhance the camera's surveillance capabilities?

The 4.3x optical zoom allows you to focus on distant subjects without sacrificing image quality. This is especially useful in large indoor spaces where you might need to monitor activities at varying distances.

What is the advantage of the camera supporting H.264 and MJPEG video compression formats?

Support for H.264 and MJPEG video compression formats allows the camera to efficiently manage bandwidth and storage. This means you can store more footage without compromising on video quality.

What does the IK09 rating mean for the E617 Dome Camera?

The IK09 rating indicates that the camera has a high level of protection against impacts and is resistant to vandalism. This makes it a durable choice for various indoor environments.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E617 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels

    3856 (H) x 2764 (V) (10.66MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg. K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR Working Distance

    30m / 98.42' (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • IR LED

    Adaptive IR LED x 27 (850 nm)

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • Horizontal Resolution

    1450 TVL

  • S/N Ratio

    52dB

  • Focal Length / Aperture

    Zoom, f3.1 - 13.3mm / F1.4 - 4.0

  • Zoom Ratio / Speed

    4.3x optical / 3 sec (1x to 4.3x)

  • Zoom Application

    Camera installation

  • Iris

    P-iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Viewing Angle Adjustment

    Pan: 0 deg. to 350deg; Tilt: 5 deg. - 175 deg. ; Rotate: 0 to 350 deg.

  • Horizontal Viewing Angle

    101.25 deg. to 34.3 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Bit Rate

    128 Kbps - 12 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Max. Frame Rate vs. Resolution

    7 fps at 3648 x 2736; 7 fps at 3648 x 2160; 7 fps at 2592 x 1944; 7 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Privacy Mask

    4 configurable regions

  • Image Enhancement

    Basic WDR (70 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Image Orientation

    Image flip and mirror

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    2, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Digital Output

    2, Terminal block

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 12.6W; DC 12V (adapter not included) / 10.3W

  • Environmental Casing

    Vandal proof (IK09); Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F within 30 mins

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (Diameter x H)

    146 x 123.5mm / 5.75 x 4.86"

  • Weight

    756g / 26.67oz

About ACTi E617

Become the guardian of your indoor space with the E617 10MP Indoor Day & Night Dome Camera, a sophisticated and state-of-the-art security solution designed for comprehensive surveillance. This high-tech camera boasts a remarkable 10-megapixel sensor paired with 4K and 1080p resolution capabilities, ensuring that every detail is captured with crystal-clear precision.

Experience unparalleled coverage with the camera's super wide-angle lens, featuring a versatile focal length range of f3.1-13.3mm and an aperture of f1.4-4.0. The advanced P-Iris and Auto Focus functionalities facilitate effortless installation and optimal image clarity. With a 4.3x optical zoom, you can hone in on distant subjects without sacrificing image quality, making it an ideal choice for monitoring expansive indoor areas.

The E617 camera is engineered to adapt to varying lighting conditions, thanks to its innovative Adaptive IR LED technology. This feature ensures that the camera delivers high-quality, consistent footage both during the day and through the night. The Basic Wide Dynamic Range (WDR) of 70 dB allows the camera to balance contrasting light levels, capturing clear images even in challenging lighting scenarios.

Record smooth, seamless video at a fluid 30 frames per second at a 1920 x 1080 resolution. This advanced frame rate contributes to the camera's ability to capture fast-moving objects with minimal motion blur, enhancing the effectiveness of your surveillance system.

Built to withstand potential tampering or vandalism, the E617 dome camera is rated IK09 for its vandal-resistant construction. This robust design ensures that the camera remains a reliable security asset in various indoor environments.

Supporting both H.264 and MJPEG video compression formats, the camera efficiently manages bandwidth and storage without compromising on video quality. Additionally, the convenience of Power over Ethernet (PoE) simplifies installation by allowing both power and data to be transmitted over a single network cable.

Elevate your security measures with the E617 10MP Indoor Day & Night Dome Camera, an advanced solution that combines innovative features and sophisticated technology to provide vigilant, round-the-clock surveillance for your property.

ACTi E617 Features

  • High-resolution 10MP dome camera with 4K and 1080p capabilities for clear, detailed surveillance
  • Versatile wide-angle lens with f3.1-13.3mm focal length & f1.4-4.0 aperture for expansive coverage
  • Adaptive IR LED technology for superior day and night surveillance performance
  • Basic Wide Dynamic Range (WDR) of 70 dB for balanced imaging in varying light conditions
  • Vandal-resistant construction (IK09 rating) for enhanced durability and reliability in indoor settings
  • Supports H.264 and MJPEG video compression with Power over Ethernet (PoE) for easy installation and efficient data management

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear footage with this 10MP security camera, ensuring no detail is missed.
  • Enjoy superior night vision up to 98ft with our advanced IR LEDs for around-the-clock surveillance.
  • Get instant alerts with customizable motion detection, keeping you informed of any activity.
  • Set up your IP camera quickly and easily with our intuitive installation process. Start protecting now!
  • Remotely monitor your home or business anytime, anywhere with secure remote access features.
  • This weatherproof dome camera is built to withstand the elements, providing reliable security, rain or shine.

What's in the box:

  • ACTi E617 10MP Indoor Day & Night Dome Camera with f3.1-13.3mm / F1.4-4.0 Lens
  • ACTi 3 Year Limited Warranty
