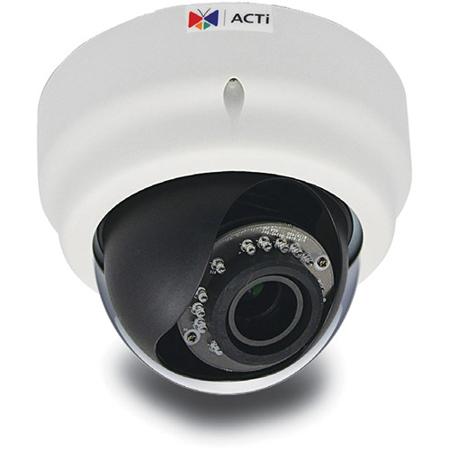

ACTi E61A 1MP Day/Night Indoor IP Dome Camera with Vari-Focal Lens

SKU: ACTE61A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E61A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/4"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Vari-focal, f2.8 - 12mm / F1.4

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    59.8 - 24.7 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (69dB); White balance: automatic, hold, and manual; Brightness; Contrast;Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots;Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.95W (IR on)

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.75 x 4.9" / 14.61 x 12.45cm

  • Weight

    1.86lbs / 0.84kg

About ACTi E61A

From the advanced technology of ACTi, the E61A Day/Night Indoor IP Dome Camera is a state-of-the-art surveillance solution designed for 24/7 indoor security monitoring. This high-tech camera features a 1 Megapixel sensor, delivering crystal clear 720p resolution images, ensuring every detail is captured with precision.

Equipped with an innovative Adaptive IR LED, this camera provides superior night vision capabilities, seamlessly transitioning between day and night modes for continuous surveillance. The sophisticated vari-focal lens with f2.8-12mm / F1.4 allows for flexible viewing angles and depth of field, ensuring comprehensive coverage of your indoor spaces.

The E61A camera boasts a Basic Wide Dynamic Range (WDR) of 74 dB, effectively balancing light and dark areas of the image for optimal clarity. With the ability to record at a smooth 30 frames per second at 1280 x 720 resolution, you can be assured of fluid, high-quality video footage.

Designed with durability in mind, this camera is vandal-resistant (IK09), offering robust protection against physical impacts. Furthermore, the Power over Ethernet (PoE) feature simplifies installation and reduces cable clutter, as it requires only a single cable for both power supply and data transmission.

In summary, the ACTi E61A Day/Night Indoor IP Dome Camera with Adaptive IR LED, Basic WDR & Vari-Focal Lens, 1MP, 1280x720, 30fps, H.264 HP, MJPEG, PoE is a sophisticated, high-tech solution for your indoor surveillance needs, offering advanced features and robust performance.

ACTi E61A Features

  • 1MP high-definition indoor IP dome camera with 720p resolution for clear surveillance footage
  • Adaptive IR LED for superior night vision and 24/7 indoor monitoring
  • Vari-focal lens with f2.8-12mm / F1.4 for customizable field of view and image depth
  • Basic WDR (74 dB) to balance contrasting light conditions in video captures
  • Smooth video at 30 fps in 1280x720 HD, supporting both H.264 HP and MJPEG codecs
  • Vandal-resistant (IK09) design with PoE for easy and secure installation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear video with this 1MP security camera, perfect for indoor surveillance.
  • Enjoy flexible viewing with the vari-focal lens, adjust from 2.8-12mm for optimal focus.
  • See clearly at night with adaptive IR LEDs, providing night vision up to 30 meters.
  • Set up motion detection zones to get alerts, enhancing your home security system.
  • Access your camera remotely via the network, monitor your space from anywhere, anytime.
  • Integrate easily with ACTi software, plus ONVIF compliance for versatile use cases.

What's in the box:

  • ACTi E61A Day/Night Indoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
