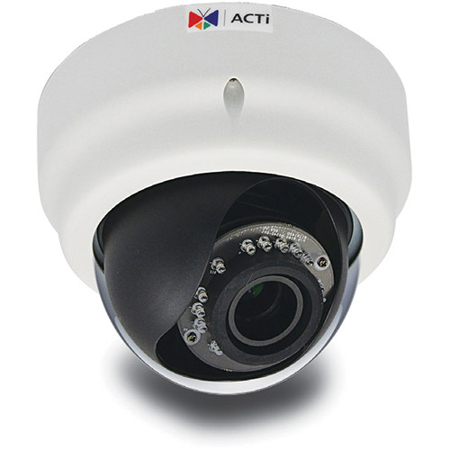

ACTi E62A 3MP Day/Night Indoor IP Dome Camera with Vari-Focal Lens

SKU: ACTE62A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the Adaptive IR LED technology do in the E62A 3MP Indoor IP Dome Camera?

The Adaptive IR LED technology in the E62A 3MP Indoor IP Dome Camera automatically adjusts the intensity of the infrared lighting based on the distance of the object from the camera. This prevents overexposure and ensures clear image capture in low-light or no-light conditions.

What is the advantage of having a vari-focal lens in this camera?

The vari-focal lens in the E62A 3MP Indoor IP Dome Camera allows for versatile field-of-view adjustments. This means it can be used to monitor wide areas or to focus on specific points of interest, making it a flexible solution for different surveillance needs.

What does the Basic WDR feature do?

The Basic Wide Dynamic Range (WDR) feature in the camera helps to balance the exposure of the image in scenes with contrasting light levels. This ensures that both bright and dark areas of the image are clearly visible.

How does the Power over Ethernet (PoE) feature simplify installation?

Power over Ethernet (PoE) allows the camera to receive both power and data over a single network cable. This simplifies installation by reducing the need for additional wiring and power sources.

What does it mean that the camera is vandal-resistant?

The E62A 3MP Indoor IP Dome Camera is designed to be vandal-resistant, meeting the IK09 standard. This means it can withstand potential tampering or physical impact, ensuring the camera stays operational and intact.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ACTi E62A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04 MP)

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1350

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Vari-focal, f2.8 - 12mm / F1.4

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    70.5 - 28.2 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.95W (IR on)

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09, UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.75 x 4.9" / 14.61 x 12.45cm

  • Weight

    1.86lbs / 0.84kg

About ACTi E62A

Take your indoor surveillance to the next level with the E62A 3MP Day/Night Indoor IP Dome Camera, a high-tech solution designed for crystal-clear security monitoring. This sophisticated camera boasts a 3-megapixel sensor capable of delivering full HD 1080p resolution, ensuring that every detail is captured with precision.

Experience unparalleled image clarity both day and night, thanks to the camera's innovative Adaptive IR LED technology. This state-of-the-art feature automatically adjusts the intensity of the infrared lighting to provide optimal illumination in low-light conditions, preventing overexposure and capturing crisp images even in complete darkness.

The camera's advanced vari-focal lens, with a range of f2.8-12mm and a wide aperture of F1.4, allows for versatile field-of-view adjustments, making it perfect for monitoring wide areas or focusing on specific points of interest. With Basic Wide Dynamic Range (WDR) of 74 dB, the camera expertly handles scenes with contrasting light levels, ensuring balanced exposure and clear image quality.

Achieve smooth video playback with a high frame rate of 30 frames per second at a 1920 x 1080 resolution. This ensures that fast-moving objects are captured with clarity, making it easier to identify important details during playback.

The E62A is not only high-tech but also ruggedly built, featuring a vandal-resistant design that meets IK09 standards. This ensures that your surveillance system remains intact and operational even in the face of potential tampering or physical impact.

Equipped with support for H.264 High Profile and MJPEG video compression formats, the camera provides efficient video streaming while maintaining high-quality imagery. The inclusion of Power over Ethernet (PoE) simplifies installation by allowing both power and data to be transmitted over a single network cable, reducing the need for additional wiring and power sources.

Ideal for businesses and homeowners seeking a reliable indoor security camera, the E62A 3MP Day/Night Indoor IP Dome Camera with Adaptive IR LED, Basic WDR, and Vari-Focal Lens is a cutting-edge choice for maintaining vigilant surveillance in any indoor setting.

ACTi E62A Features

  • High-resolution 3MP Indoor IP Dome Camera for superior indoor surveillance
  • Adaptive IR LED technology for clear night vision and day-time monitoring
  • Vari-focal lens with f2.8-12mm / F1.4 for versatile field-of-view adjustments
  • Basic Wide Dynamic Range (WDR) of 74 dB for balanced exposure in contrasting light
  • High frame rate of 30 fps at 1920 x 1080 for smooth, detailed video playback
  • Supports H.264 High Profile and MJPEG video formats for efficient streaming
  • Power over Ethernet (PoE) enabled for simplified installation and connectivity
  • Vandal-resistant design meeting IK09 standards for enhanced durability

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear, detailed video with this 3MP security camera, perfect for indoor surveillance.
  • Enjoy superior night vision with adaptive IR LEDs, providing up to 30m of visibility in complete darkness.
  • Get flexible viewing with the vari-focal lens, adjustable from 2.8 to 12mm for optimal focus.
  • This IP dome camera offers H.264 compression, ensuring efficient bandwidth use without losing quality.
  • Receive instant alerts with video motion detection, keeping you informed of any unusual activity.
  • Easily integrate this ACTi camera with existing systems; it's fully ONVIF compliant for broad compatibility.

What's in the box:

  • ACTi E62A 3MP Day/Night Indoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
