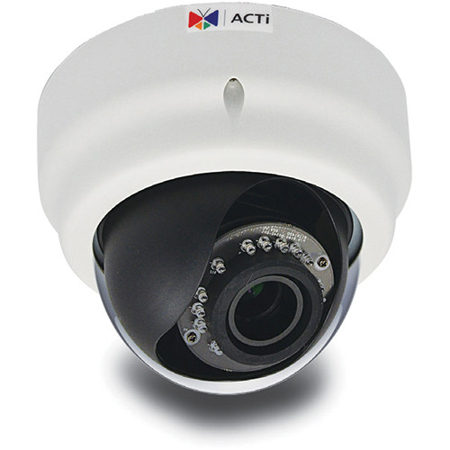

ACTi E63A 5MP Day/Night Indoor IP Dome Camera with Vari-Focal Lens

SKU: ACTE63A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Adaptive IR LED feature in the E63A 5MP Day/Night Indoor IP Dome Camera?

The Adaptive IR LED feature in the E63A 5MP Day/Night Indoor IP Dome Camera allows the camera to adjust its infrared light intensity based on the distance of the object. This ensures optimal illumination and image clarity in all lighting conditions, making it ideal for 24/7 surveillance.

What does the vari-focal lens in the E63A 5MP Day/Night Indoor IP Dome Camera do?

The vari-focal lens in the E63A 5MP Day/Night Indoor IP Dome Camera provides flexibility in adjusting the field of view to suit specific surveillance needs. The lens has an aperture range of f2.8-12mm / F1.4, allowing for a wide or narrow field of view as needed.

What does the Basic WDR feature in the E63A 5MP Day/Night Indoor IP Dome Camera do?

The Basic WDR (Wide Dynamic Range) feature in the E63A 5MP Day/Night Indoor IP Dome Camera helps balance light levels in high contrast scenes. This ensures clear images in all lighting conditions, making it ideal for areas with varying light intensities.

What does the vandal-resistant design of the E63A 5MP Day/Night Indoor IP Dome Camera mean?

The vandal-resistant design (IK09) of the E63A 5MP Day/Night Indoor IP Dome Camera means it has been built to withstand impacts. This enhances the camera's durability and longevity, especially in indoor environments where it may be subject to tampering or accidental damage.

What video codecs does the E63A 5MP Day/Night Indoor IP Dome Camera support?

The E63A 5MP Day/Night Indoor IP Dome Camera supports H.264 HP and MJPEG video codecs. These codecs ensure efficient video compression for high-quality streaming, making it suitable for remote monitoring and integration with various security systems.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ACTi E63A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Vari-focal, f2.8 - 12mm / F1.4

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    66.62 - 28.88 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Frame Rate vs. Resolution

    15fps at 2592 x 1944; 15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions);External device through digital input

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6.49 W (IR on)

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    5.75 x 4.5" / 14.61 x 11.43cm

  • Weight

    1.86lbs / 0.84kg

About ACTi E63A

What you're looking at is the E63A 5MP Day/Night Indoor IP Dome Camera, a high-tech and advanced security solution for your indoor surveillance needs. This sophisticated camera is equipped with a 5-megapixel sensor that delivers crystal clear 1080p resolution video, ensuring every detail is captured with precision.

One of the standout features of this state-of-the-art camera is its day and night functionality, made possible by the Adaptive IR LED. This innovative feature allows the camera to adjust its infrared light intensity according to the distance of the object, ensuring optimal illumination and image clarity in all lighting conditions.

The camera also boasts a vari-focal lens with an aperture range of f2.8-12mm / F1.4, providing you with the flexibility to adjust the field of view to suit your specific surveillance needs. Coupled with the Basic Wide Dynamic Range (WDR) of 74 dB, the camera can effectively balance light levels in high contrast scenes, ensuring clear images in all conditions.

With a frame rate of 30 fps at 1920 x 1080, you can expect smooth, high-quality video footage. Plus, the camera's vandal-resistant design (IK09) ensures it can withstand impacts, adding an extra layer of security.

Supporting H.264 HP and MJPEG codecs, this camera ensures efficient video compression for high-quality streaming. It also supports Power over Ethernet (PoE), allowing for easy installation and integration with existing network systems.

In summary, the E63A 5MP Day/Night Indoor IP Dome Camera is an ideal choice for those seeking a reliable, high-performance indoor surveillance solution.

ACTi E63A Features

  • 5MP high-resolution indoor IP dome camera for detailed surveillance
  • Adaptive IR LED technology for clear night vision and day-time monitoring
  • Versatile vari-focal lens with f2.8-12mm / F1.4 for customized field of view
  • Basic WDR at 74 dB to balance contrast in diverse lighting conditions
  • Smooth video capture at 30 fps in full 1920x1080 HD resolution
  • Vandal-resistant build (IK09) to enhance durability in indoor environments
  • Supports H.264 HP, MJPEG codecs, and PoE for seamless integration

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear 5MP video with this indoor dome security camera, perfect for detailed surveillance.
  • See clearly, day or night! This camera's night vision reaches up to 30m with adaptive IR LED.
  • Get motion detection alerts! The security camera sends notifications upon detecting movement.
  • Access your camera remotely! Monitor your space from anywhere using your device.
  • Easy setup for quick surveillance! Get your home security camera system up and running fast.
  • Wide angle view! This IP camera has a varifocal lens with 66.62 - 28.88 degree horizontal view.

What's in the box:

  • ACTi E63A 5MP Day/Night Indoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
