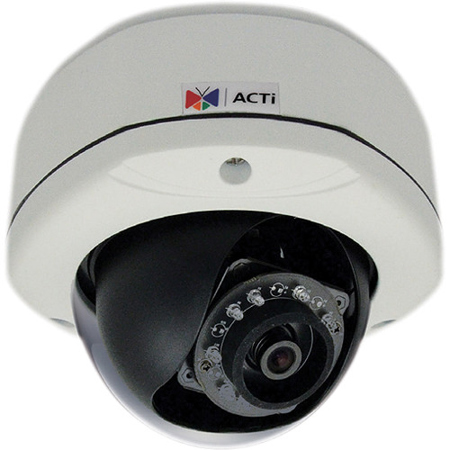

ACTi E71A 1MP Day/Night Outdoor IP Dome Camera with Fixed Lens
See all ACTi items

ACTi E71A 1MP Day/Night Outdoor IP Dome Camera with Fixed Lens

SKU: ACTE71A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E71A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/4"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 10 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Fixed focal, f2.93mm / F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    72.0 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Maximum Frame Rate vs. Resolution

    30fps at 1280 x 720; 30fps at 640 x 480; 15fps 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB ); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.02W (IR on)

  • Environmental Casing

    Weatherproof (IP66 rated); Vandal proof (IK10 rated); Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Dimensions (Dia. x H)

    150 x 117mm / 5.9 x 4.6"

  • Weight

    1006g / 35.49oz

About ACTi E71A

It is a high-tech E71A Day/Night Outdoor IP Dome Camera, equipped with an advanced adaptive IR LED system. This state-of-the-art security device delivers a clear, 1-megapixel resolution at a smooth 30 frames per second, ensuring detailed 720p high-definition surveillance footage. With its sophisticated day and night functionality, this camera provides consistent, round-the-clock monitoring, adapting to varying light conditions for optimal visibility.

The camera features a fixed lens with an aperture of f2.93mm / F2.0, offering a wide field of view for comprehensive coverage. It also boasts a Basic Wide Dynamic Range (WDR) of 74 dB, enhancing the camera's ability to capture images in contrasting light conditions, ensuring clear, balanced footage.

Designed for outdoor use, this innovative camera is both weatherproof and vandal-proof, meeting the stringent IP66 and IK10 standards respectively. This means it can withstand harsh weather conditions and potential physical impacts, making it a reliable choice for your security needs.

Powered by H.264 HP and MJPEG compression technologies, this camera ensures efficient data management, delivering high-quality video streams without compromising on bandwidth. Additionally, the Power over Ethernet (PoE) feature simplifies installation, allowing for both power and data transmission over a single Ethernet cable.

Choose the E71A Day/Night Outdoor IP Dome Camera for a seamless, high-quality surveillance experience, brought to you by ACTi, a trusted name in the realm of high-quality surveillance equipment.

ACTi E71A Features

  • High-tech E71A Day/Night Outdoor IP Dome Camera with adaptive IR LED for 24/7 surveillance
  • Delivers 1-megapixel, 720p high-definition footage at a smooth 30 frames per second
  • Features a fixed lens with f2.93mm / F2.0 aperture for wide coverage and Basic WDR (74 dB) for balanced imaging
  • Weatherproof (IP66) and vandal-proof (IK10) design for reliable outdoor use in diverse conditions
  • Efficient data management with H.264 HP and MJPEG compression technologies
  • Simplified installation with Power over Ethernet (PoE) feature, enabling power and data transmission over a single cable

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear surveillance video with this 1MP security camera, perfect for outdoor monitoring.
  • Enjoy superior night vision with adaptive IR LEDs, providing a 30m range for your property's security.
  • This IP dome camera is weatherproof (IP66) & vandal-proof (IK10), ensuring durability in any environment.
  • Easy setup with PoE; this outdoor camera integrates seamlessly into your existing network system.
  • Get motion detection alerts directly to your device, enhancing your home's security and awareness.
  • Store footage locally with the MicroSD card slot, offering a convenient alternative to cloud storage.

What's in the box:

  • ACTi E71A Day/Night Outdoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Conduit Gland
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
