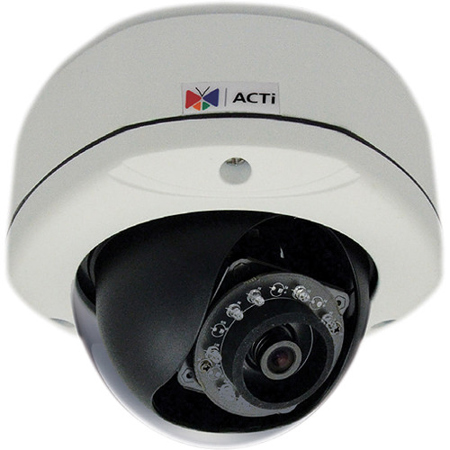

ACTi E74A 3MP Day/Night Outdoor Dome Camera with Fixed Lens
SKU: ACTE74A
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
ACTi E74A Specifications
Image Sensor
Progressive Scan CMOS
Sensor Size
1/3.2"
Day / Night
Yes
Superior Low Light Sensitivity
No
Minimum Illumination
Color: 0.1 lux at F2.0 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)
Color to B/W Switch
ISP based switch, configurable
Mechanical IR Cut Filter
Yes
IR Sensitivity Range
700 to 1100nm
IR LED
Adaptive IR LED (IR Exposure Compensation) x 10 (850nm)
IR Working Distance
30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
Electronic Shutter
Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec
Lens: Focal Length / Aperture
Fixed focal, f2.93mm / F2.0
Lens: Iris
Fixed iris
Lens: Focus
Fixed focus
Lens: Mount Type
Board mount
Lens: Horizontal Viewing Angle
85.7 deg.
Viewing Angle Adjustment
Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.
Video: Compression
H.264 HP, MJPEG
Video: Maximum Frame Rate vs. Resolution
15fps at 2592 x 1944; 15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240
Video: Multi-Streaming
Simultaneous dual streams based on two configurations
Video: Bit Rate
28Kbps to 6Mbps (per stream)
Video: Bit Rate Mode
Constant, Variable
Video: Image Enhancement
Superior WDR (110dB ); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Video: Privacy Mask
4 configurable regions
Video: Text Overlay
User defined text on video
Video: Image Orientation
Image flip and mirror
Audio: Compression
8kHz, Mono, PCM, 16 bit encoding; G.711
Audio: In
Terminal block
Audio: Out
Terminal block
Network: Protocol & Service
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Network: Ethernet Port
1, Ethernet (10/100 Base-T), RJ-45 connector
Network: Security
IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
Alarm Trigger
Video motion detection (3 regions)
Alarm Response
Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output
Digital Input
1, Terminal block
Digital Output
1, Terminal block
Local Storage
MicroSDHC/MicroSDXC memory card slot (card not included)
Power Source / Consumption
PoE Class 2 (IEEE802.3af) / 6.31W (IR on)
Environmental Casing
Weatherproof (IP66 rated); Vandal proof (IK10 rated); Transparent dome cover
Mount Type
Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
Approvals
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X
Starting Temperature
-20 to 50 deg. C / -4 to 122 deg. F
Operating Temperature
-40 to 50 deg. C / -40 to 122 deg. F
Operating Humidity
10 to 85% RH
Dimensions (Dia. x H)
150 x 117mm / 5.9 x 4.6"
Weight
1kg / 2.20lbs
About ACTi E74A
• 3 Megapixel with 1080p
• Day & Night with Adaptive IR LED
• Wide Angle Fixed Lens with f2.93mm / F2.0
• Superior WDR (110 dB)
• 30 fps at 1920 x 1080
• Weatherproof (IP66) and Vandal Proof (IK10)
Warranty Information
This product has a limited warranty of 36 months.
Key Features
- Capture clear details with the 3MP ACTi security camera, perfect for home or business.
- Enjoy superior night vision up to 30m with this outdoor camera, ensuring 24/7 surveillance.
- This weatherproof security camera is IP66 rated, ready for any outdoor conditions, rain or shine.
- Get flexible viewing with pan, tilt, and rotation adjustments on this versatile dome camera.
- Receive instant alerts with video motion detection, keeping your property secure and informed.
- Easy to install and manage via mobile app, monitor your home with this network security camera.
What's in the box:
- ACTi E74A Day/Night Outdoor Dome Camera
- Mounting Screw Kit
- Hexagon Screwdriver
- Terminal Block for Audio and DI/DO
- Drill Template
- Conduit Gland
- Cable Gland
- Quick Installation Guide
- ACTi 3 Year Limited Warranty
