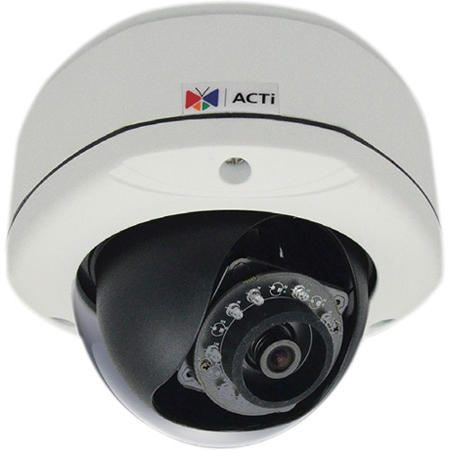

ACTi E77 10MP Day/Night Outdoor IP Dome Camera with Fixed Lens
See all ACTi items

ACTi E77 10MP Day/Night Outdoor IP Dome Camera with Fixed Lens

SKU: ACTE77

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E77 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels(H x V)

    3856 x 2764 (10.66 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F1.8 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 10 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm / F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    101.4 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Maximum Frame Rate vs. Resolution

    7fps at 3648 x 2736; 7fps at 3648 x 2160; 7fps at 2592 x 1944; 7fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB ); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6.49W (IR on)

  • Environmental Casing

    Weatherproof (IP67 rated); Vandal proof (IK10 rated); Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP67, NEMA 4X, UL (for optional PoE injector and power adapter)

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    150.4 x 116.9mm / 5.92 x 4.60"

  • Weight

    1kg / 2.20lbs

About ACTi E77

For superior surveillance and security, the E77 Day/Night Outdoor IP Dome Camera is a top-tier choice. This high-performance camera boasts a 10-megapixel resolution, delivering crystal-clear 4K and 1080p video quality. Whether it's day or night, the adaptive IR LED technology ensures optimal visibility, capturing every detail with precision.

The camera features a fixed lens with an aperture of f3.6mm / F1.8, providing a super wide-angle view for comprehensive coverage. This feature, coupled with the Basic Wide Dynamic Range (WDR) of 70 dB, guarantees excellent image quality even in challenging light conditions.

With a frame rate of 30 fps at a resolution of 1920 x 1080, you can expect smooth, high-definition video playback. This makes it ideal for monitoring large outdoor areas, such as parking lots, public spaces, and commercial premises.

Designed for durability, the E77 Dome Camera is both weatherproof and vandal-proof. It carries an IP67 rating, indicating its ability to withstand harsh weather conditions, and an IK10 rating for its high resistance to impact and vandalism. This ensures the camera's longevity, making it a reliable choice for outdoor surveillance needs.

Incorporating the E77 Day/Night Outdoor IP Dome Camera into your security system means investing in a robust, high-quality surveillance solution that delivers exceptional performance around the clock.

ACTi E77 Features

  • 10MP resolution with 4K/1080p clarity for high-definition surveillance
  • Adaptive IR LED for enhanced night vision and day/night functionality
  • Fixed lens with f3.6mm / F1.8 aperture for a super wide-angle view
  • Basic WDR (70 dB) to capture quality images in various lighting conditions
  • Smooth video with 30 fps at 1920 x 1080 for detailed real-time monitoring
  • Weatherproof (IP67) and vandal-proof (IK10) for outdoor durability and resilience

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear 10MP video with this outdoor security camera, day or night.
  • Get reliable surveillance with IP67 weatherproof & IK10 vandal-proof rated casing.
  • Adaptive IR LED provides up to 30m night vision, ensuring clear footage in darkness.
  • Easy setup with PoE; view live video and manage settings via mobile app.
  • Motion detection alerts sent directly to your device for immediate awareness.
  • Store footage locally with MicroSD or use cloud storage for secure backup.

What's in the box:

  • ACTi E77 Day/Night Outdoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Conduit Gland
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
