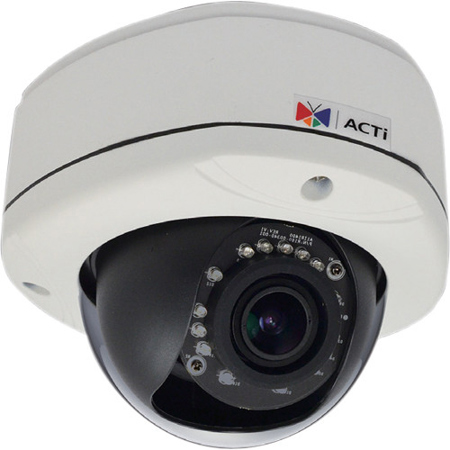

ACTi E86A 3MP Day/Night Outdoor IP Dome Camera with Vari-focal Lens
See all ACTi items

ACTi E86A 3MP Day/Night Outdoor IP Dome Camera with Vari-Focal Lens

SKU: ACTE86A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E86A Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Day / Night

    Yes

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F1.4 (30 IRE, 2400 deg.K); B/W: 0 lux (IR LED on)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 to 1100nm

  • IR LED

    Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)

  • IR Working Distance

    30m (0 lux, 30 IRE, Gain 255, Auto shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000sec; Auto Mode: 1/5 to 1/10000sec

  • Lens: Focal Length / Aperture

    Vari-focal, f2.8 - 12 mm / F1.4

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Manual focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    70.5 to 28.8 deg.

  • Viewing Angle Adjustment

    Pan: 0 - 350 deg.; Tilt: 17 - 163 deg.; Rotate: 0 - 350 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Maximum Frame Rate vs. Resolution

    15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps to 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Superior WDR (110dB ); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions)

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Digital Output

    1, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 6.49W (IR on)

  • Environmental Casing

    Weatherproof (IP66 rated); Vandal proof (IK10 rated); Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Flush, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed; and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    150 x 117mm / 5.91 x 4.61"

  • Weight

    1032g / 36.40oz

About ACTi E86A

An exceptional addition to your security system, the E86A Day/Night Outdoor IP Dome Camera is engineered with cutting-edge features for superior surveillance. This high-performance camera boasts a 3 Megapixel resolution, delivering crystal clear 1080p images for precise detail capture.

Equipped with an Adaptive IR LED, the camera ensures optimal performance during both day and night, providing consistent, high-quality imaging regardless of lighting conditions. The Vari-focal lens with f2.8~12mm / F1.4 allows for versatile viewing angles and superior image clarity, making it an ideal choice for monitoring expansive outdoor areas.

One of the standout features of this outdoor IP dome camera is its Superior Wide Dynamic Range (WDR) of 110 dB. This technology balances light and dark areas in an image, ensuring clear visibility even in high-contrast environments. With a frame rate of 30 fps at 1920 x 1080, you can expect smooth, seamless footage that captures every detail.

Designed for durability, the E86A camera is weatherproof (IP66) and vandal-proof (IK10), ensuring reliable operation in various environmental conditions. It supports H.264 HP and MJPEG codecs, and is powered over Ethernet (PoE) for simplified installation and reduced cabling.

Incorporate the E86A Day/Night Outdoor IP Dome Camera into your security setup for comprehensive, high-quality surveillance that you can rely on.

ACTi E86A Features

  • High-resolution 3 Megapixel camera delivering 1080p images for precise detail capture
  • Adaptive IR LED for superior performance during both day and night
  • Vari-focal lens with f2.8~12mm / F1.4 for versatile viewing angles and image clarity
  • Superior Wide Dynamic Range (WDR) of 110 dB for clear visibility in high-contrast environments
  • Weatherproof (IP66) and vandal-proof (IK10) for reliable operation in various conditions
  • Supports H.264 HP and MJPEG codecs, and is powered over Ethernet (PoE) for simplified installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear video with this 3MP outdoor security camera, perfect for home or business.
  • Get reliable day & night surveillance with infrared night vision up to 30 meters away.
  • Weatherproof IP66 rated casing ensures your dome camera withstands the elements, worry-free.
  • Set up motion detection zones & receive alerts, enhancing your property's security measures.
  • Use the vari-focal lens to adjust the viewing angle for optimal coverage of key areas.
  • Access your security camera remotely via mobile app for live viewing and playback anytime.

What's in the box:

  • ACTi E86A Day/Night Outdoor IP Dome Camera
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and DI/DO
  • Drill Template
  • Conduit Gland
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
