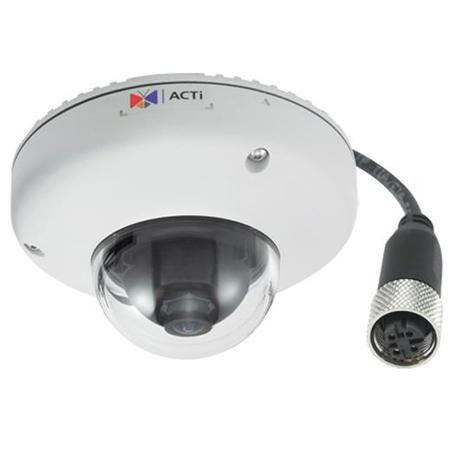

ACTi E918M 3MP Outdoor Mini Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE918M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E918M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Effective Pixels (H x V)

    2048 x 1536 (3.15 MP)

  • Day / Night

    No

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg.K)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1250

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f1.9mm/ F2.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    126.4 deg.

  • Lens: Viewing Angle Adjustment

    Pan: +/-90 deg.; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Maximum Frame Rate vs.Resolution

    20fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Superior WDR (110 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding, G.711

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 4.08W (IR on)

  • Environmental Casing

    Vandal resistant (IK08); Transparent dome cover

  • Mount Type

    Surface, Wall, Pendant, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK08, UL (for optional PoE injector)

  • Starting Temperature

    10 to 50 deg. C / 50 to 122 deg. F

  • Operating Temperature

    10 to 50 deg. C / 50 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Dimensions (Dia. x H)

    4.3 x 2.4" / 109.22 x 60.96mm

  • Weight

    210g / 7.41oz

About ACTi E918M

Be prepared for superior surveillance with the E918M 3MP Outdoor Mini Dome Camera. This high-performance security device boasts a 3-megapixel resolution, delivering crystal clear 1080p video quality. The fixed lens, with an aperture of f1.9mm/F2.8, ensures sharp and detailed images, even in low light conditions.

Experience the advantage of Superior Wide Dynamic Range (WDR) with an impressive 110 dB, enabling the camera to capture greater scene details from shadows and highlights simultaneously. With a frame rate of 30 fps at a resolution of 1920 x 1080, you can expect smooth, high-definition video playback.

The E918M camera also features a super wide-angle lens, providing extensive coverage and reducing the number of cameras needed for comprehensive surveillance.

Designed for outdoor use, this mini dome camera is weatherproof with an IP68 rating, ensuring it can withstand harsh weather conditions. It's also vandal-proof with an IK10 rating, offering high-level protection against impacts. The vibration-proof feature, compliant with EN50155 standards and equipped with an M12 connector, makes this camera ideal for use in transportation systems like buses and trains.

In terms of video compression, the E918M supports both H.264 HP and MJPEG formats, optimizing storage and bandwidth without compromising video quality. It also supports Power over Ethernet (PoE), simplifying installation by allowing both power and data transmission over a single Ethernet cable.

In summary, the E918M 3MP Outdoor Mini Dome Camera is a robust, high-quality surveillance solution, offering superior image quality, extensive coverage, and exceptional durability.

ACTi E918M Features

  • High-resolution 3MP outdoor mini dome camera with clear 1080p video quality
  • Superior Wide Dynamic Range (WDR) of 110 dB for detailed imaging
  • Weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155) for robust protection
  • Super wide-angle lens for extensive surveillance coverage
  • Supports H.264 HP and MJPEG video compression for optimized storage
  • Power over Ethernet (PoE) enabled for simplified installation

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear, wide-angle surveillance with this mini dome security camera's fisheye lens.
  • Enjoy superior WDR (110 dB) for balanced video in varying light with this outdoor camera.
  • This vandal-resistant (IK08) security camera is perfect for reliable outdoor home protection.
  • Get detailed 3MP video, ensuring critical details are visible in your security camera footage.
  • Easy setup with PoE; this compact camera integrates seamlessly into your existing network.
  • Monitor your property remotely; receive alerts & save snapshots with this network camera.

What's in the box:

  • ACTi E918M 3MP Outdoor Mini Fisheye Dome Camera with M12 Connector
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
