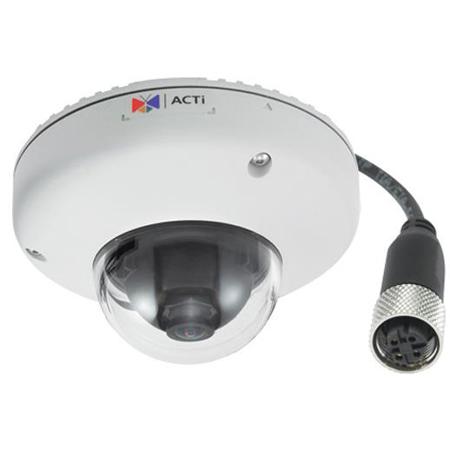

ACTi E921M 5MP Outdoor Mini Fisheye Dome Camera with M12 Connector & Fixed Lens
See all ACTi items

ACTi E921M 5MP Outdoor Mini Fisheye Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE921M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E921M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels (H x V)

    2592 x 1944 (5.04 MP)

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg.K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1350

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed (Fisheye lens), f1.19mm/ F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview area: 180 deg., High detail area: 109.8 deg.

  • Lens: Viewing Angle Adjustment

    Rotation: +/-90 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Resolution vs. Frame Rate

    15fps at 2592 x 1944; 15fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Mode

    Fisheye Streaming; Dewarped Streaming: 180 deg. /360 deg. Panorama; ePTZ

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Mic-in and line-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), M12 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 1 (IEEE802.3af) / 3.36W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP68, NEMA 4X, EN50155

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Dimensions (Dia. x H)

    4.3 x 2.4" / 109.22 x 60.96mm

  • Weight

    1.01lbs / 0.46kg

About ACTi E921M

For professional surveillance and security needs, the E921M Outdoor Mini Fisheye Dome Camera offers superior performance and durability. This high-resolution 5MP camera captures clear, detailed images at a resolution of 2592x1944 pixels, ensuring every detail is visible. The fixed lens with f1.19 mm / F2.0 provides a wide field of view, capturing a comprehensive 180/360-degree fisheye view of your surroundings.

The camera operates at a smooth 15 frames per second, providing real-time video without lag. It also features Basic Wide Dynamic Range (WDR) with a 74 dB rating, which balances the lighting in high-contrast scenes to deliver clear images in all lighting conditions.

Built for outdoor use, the E921M camera is weatherproof with an IP68 rating, ensuring it can withstand harsh weather conditions. It's also vandal-proof with an IK10 rating and vibration-proof as per EN50155 standards, making it a robust and reliable choice for outdoor surveillance.

The camera uses H.264 HP and MJPEG video compression technologies for efficient storage and streaming, and it's powered via Power over Ethernet (PoE) for easy installation and reduced cabling. The M12 connector ensures a secure and stable connection, even in environments with high vibration.

In summary, the E921M Outdoor Mini Fisheye Dome Camera is a high-performance, durable, and reliable solution for your outdoor surveillance needs, offering high-resolution imaging, wide field of view, and robust build quality.

ACTi E921M Features

  • High-resolution 5MP outdoor surveillance camera for detailed imaging
  • Features a fixed lens with f1.19 mm / F2.0 for a 180/360-degree fisheye view
  • Basic Wide Dynamic Range (WDR) with 74 dB for balanced, clear images in all lighting conditions
  • Weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155) for robust outdoor use
  • Utilizes H.264 HP and MJPEG video compression for efficient storage and streaming
  • Power over Ethernet (PoE) enabled for easy installation and reduced cabling

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with this 5MP security camera, offering high-resolution surveillance.
  • Enjoy a wide 180-degree view with the fisheye lens, minimizing blind spots for comprehensive coverage.
  • This outdoor security camera is weatherproof (IP68) and vandal-proof (IK10), built to endure harsh conditions.
  • Get remote access to live video streams on your devices, ensuring peace of mind wherever you are.
  • Benefit from motion detection, receiving instant alerts when activity is detected near your property.
  • Simplify setup with PoE, reducing cable clutter for a clean and efficient security camera installation.

What's in the box:

  • ACTi E921M Outdoor Mini Fisheye Dome Camera with M12 Connector
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
