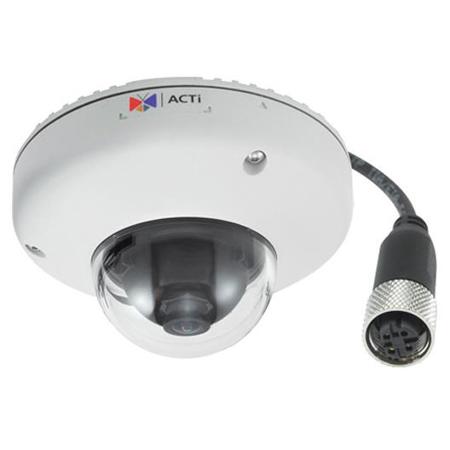

ACTi E922M 10MP Outdoor Mini Dome Camera with M12 Connector & Fixed Lens

ACTi E922M 10MP Outdoor Mini Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE922M
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the E922M Outdoor Mini Dome Camera?

The E922M Outdoor Mini Dome Camera offers a high-quality 10-megapixel sensor that delivers stunning 4K and 1080p resolution for crisp and clear images.

What is the benefit of the Basic Wide Dynamic Range (WDR) technology in the E922M Outdoor Mini Dome Camera?

The Basic Wide Dynamic Range (WDR) technology in the E922M Outdoor Mini Dome Camera balances light levels in challenging conditions, offering an impressive dynamic range of 70 dB. This feature ensures detailed images even in bright sunlight or low light.

What compression formats does the E922M Outdoor Mini Dome Camera support?

The E922M Outdoor Mini Dome Camera supports both H.264 HP and MJPEG compression formats, ensuring efficient video storage and transmission without compromising on quality.

Is the E922M Outdoor Mini Dome Camera durable for outdoor use?

Yes, the E922M Outdoor Mini Dome Camera is designed for outdoor use. It is weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155), making it reliable for use in harsh environments.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi E922M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.3"

  • Effective Pixels (H x V)

    3856 x 2764 (10.66 MP)

  • Day / Night

    No

  • Superior Low Light Sensitivity

    No

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg.K)

  • Mechanical IR Cut Filter

    No

  • IR Sensitivity Range

    No

  • IR LED

    No

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1450

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f3.6mm/ F1.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview area: 129.56 deg., High detail area: 79.0 deg.

  • Lens: Viewing Angle Adjustment

    Pan: +/-90 deg.; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 HP, MJPEG

  • Video: Max. Resolution vs. Frame Rate

    6fps at 3648 x 2736; 6fps at 3648 x 2160; 6fps at 2592 x 1944; 7fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps 1280 x 720; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (70dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Mic-in and line-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), M12 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 1 (IEEE802.3af) / 3.84W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP68, NEMA 4X, EN50155

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Dimensions (Dia. x H)

    4.3 x 2.4" / 109.22 x 60.96mm

  • Weight

    0.94lbs / 0.43kg

About ACTi E922M

Enhance your outdoor surveillance capabilities with the E922M Outdoor Mini Dome Camera. This high-quality, advanced camera boasts a 10-megapixel sensor that delivers stunning 4K and 1080p resolution, ensuring crisp, clear images in any lighting condition. The fixed lens, with its f3.6 mm / F1.8 aperture, captures a super wide-angle view, providing comprehensive coverage of your surroundings.

Equipped with Basic Wide Dynamic Range (WDR) technology, this camera can balance light levels in challenging conditions, offering an impressive dynamic range of 70 dB. This feature ensures that you capture detailed images even in bright sunlight or low light, making it an ideal choice for outdoor surveillance.

The E922M camera records at a smooth 30 frames per second at a resolution of 1920x1080, providing fluid, high-definition video footage. This innovative camera supports both H.264 HP and MJPEG compression formats, ensuring efficient video storage and transmission without compromising on quality.

Built to withstand harsh outdoor conditions, this sophisticated camera is weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155). The durable M12 connector ensures a secure, reliable connection, even in challenging environments. Whether you're monitoring a home, business, or public space, the E922M Outdoor Mini Dome Camera offers superior surveillance performance.

ACTi E922M Features

  • High-quality 10MP Outdoor Mini Dome Camera for superior outdoor surveillance
  • Advanced 4K and 1080p resolution with a fixed f3.6 mm / F1.8 lens for crisp, clear images
  • Basic Wide Dynamic Range (WDR) technology for improved image quality in challenging lighting conditions
  • Smooth recording at 30fps at 1920x1080 resolution for high-definition video footage
  • Supports H.264 HP and MJPEG compression formats for efficient video storage and transmission
  • Durable and weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155) for reliable performance in harsh environments

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture clear, detailed surveillance with the 10MP ACTi security camera.
  • Enjoy a wide 129.56° view, perfect for comprehensive outdoor security coverage.
  • This weatherproof (IP68) ACTi camera stands guard, rain or shine, all year.
  • Get reliable video with H.264 compression, optimizing storage for your footage.
  • Deter vandalism with the IK10-rated, vandal-proof dome security camera design.
  • Easy setup & PoE ensures a streamlined installation of your new security camera.

What's in the box:

  • ACTi E922M Outdoor Mini Dome Camera with M12 Connector
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
