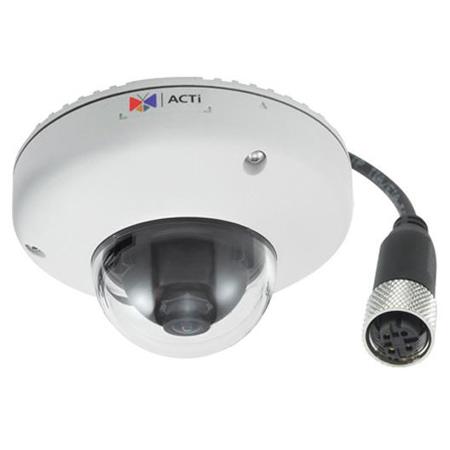

ACTi E923M 10MP Outdoor Mini Fisheye Dome Camera with M12 Connector & Fixed Lens
SKU: ACTE923M
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Failure Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
ACTi E923M Specifications
Image Sensor
Progressive Scan CMOS
Sensor Size
1/3.2"
Effective Pixels (H x V)
3856 x 2764 (10.66 MP)
Day / Night
No
Superior Low Light Sensitivity
No
Minimum Illumination
Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K)
Mechanical IR Cut Filter
No
IR Sensitivity Range
No
IR LED
No
Electronic Shutter
Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec
TV Lines
1450
S/N Ratio
52dB
Lens: Focal Length / Aperture
Fixed (Fisheye lens), f1.37mm/F2.0
Lens: Iris
Fixed iris
Lens: Focus
Fixed focus
Lens: Mount
Board mount
Lens: Horizontal Viewing Angle
Overview Area: 180 deg., High Detail Area: 109.8 deg.
Lens: Viewing Angle Adjustment
Rotation: +/-90 deg.
Video: Compression
H.264 HP, MJPEG
Video: Max. Resolution vs. Frame Rate
6fps at 3648 x 2736; 6fps at 2592 x 1944; 7fps at 2048 x 1536; 6fps at 1440 x 1080; 6fps 1280 x 960; 6fps at 640 x 480; 6fps at 320 x 240
Video: Mode
Fisheye Streaming; Dewarped Streaming: 180 deg. /360 deg. Panorama, ePTZ
Video: Multi-Streaming
Simultaneous dual streams based on two configurations
Video: Bit Rate
28Kbps - 6Mbps (per stream)
Video: Bit Rate Mode
Constant, Variable
Video: Image Enhancement
Basic WDR (70dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
Video: Privacy Mask
4 configurable regions
Video: Text Overlay
User defined text on video
Video: Image Orientation
Image flip and mirror
Audio: Input
Mic-in and line-in, cable with 3.5mm phone jack
Network: Protocol & Service
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Network: Ethernet Port
1, Ethernet (10/100 Base-T), M12 connector
Network: Security
IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
Alarm: Trigger
Video motion detection (3 regions)
Alarm: Response
Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP
Local Storage
MicroSDHC/MicroSDXC memory card slot (card not included)
Power Source / Consumption
PoE Class 1 (IEEE802.3af) / 3.84W
Environmental Casing
Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration proof (EN50155); Transparent dome cover
Mount Type
Surface, Gang box
Starting Temperature
-20 to 50 deg. C / -4 to 122 deg. F
Operating Temperature
-20 to 50 deg. C / -4 to 122 deg. F
Operating Humidity
10 to 85% RH
Approvals
CE (EN 55022 Class B, EN 55024); FCC (Part15 Subpart B Class B); IK10; IP68; NEMA 4X; EN50155
Unified Solution
Fully compatible with ACTi software
ISV Integration
Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser
Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
Dimensions (Dia. x H)
4.3 x 2.4" / 109.22 x 60.96mm
Weight
1.095lbs / 0.5kg
About ACTi E923M
• 10 Megapixel
• Fixed Lens with f1.37 mm / F2.0
• Basic WDR (70 dB)
• 7 fps at 2048 x 1536
• 180/360 Degree Fisheye View
• Weatherproof (IP68), Vandal Proof (IK10) and Vibration proof (EN50155, M12 Connector)
Warranty Information
This product has a limited warranty of 36 months.
Key Features
- Capture clear, wide-angle views with the 10MP fisheye lens security camera for complete coverage.
- Get detailed surveillance footage with this outdoor camera's high resolution and fixed lens clarity.
- Deter theft with a vandal-proof (IK10 rated) security camera that withstands tampering and harsh impacts.
- Install this mini-dome camera easily on any surface or gang box for versatile security monitoring.
- Monitor your property in any weather with a weatherproof (IP68 rated) surveillance camera.
- Use video motion detection to receive alerts and save storage space by only recording events.
What's in the box:
- ACTi E923M Outdoor Mini Fisheye Dome Camera with M12 Connector
- Drill Template
- Screw Kit
- Hexagon Screwdriver
- Dome Cover Tab
- Quick Installation Guide
- ACTi 3 Year Limited Warranty
