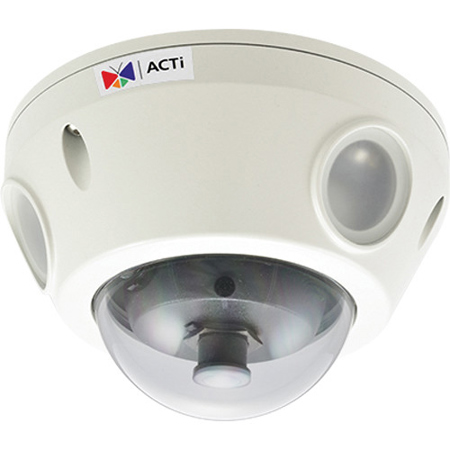

ACTi E925 5MP Day/Night Outdoor Mini Fisheye Dome Camera with Fixed Lens
See all ACTi items

ACTi E925 5MP Day/Night Outdoor Mini Fisheye Dome Camera with Fixed Lens

SKU: ACTE925

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ACTi E925 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3.2"

  • Effective Pixels (H x V)

    2592 x 1944 (5.04 MP)

  • Horizontal Resolution

    1350 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K); B/W: 0 lux at F2.0

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED (Adjustable IR Exposure Compensation) x 3 (850nm)

  • IR Working Distance

    15m (0 lux, 30 IRE, Gain 255, manual shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f1.19mm/F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview Area: 189 deg., High Detail Area: 115.3 deg.

  • Lens: Viewing Angle Adjustment

    Rotate: +/-90 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Resolution vs. Frame Rate

    15fps at 2592 x 1944; 15fps at 2048 x 1536; 15fps at 1440 x 1080; 15fps at 1280 x 960; 15fps at 800 x 600; 15fps at 640 x 480; 15fps at 320 x 240

  • Video: Mode

    Fisheye view, 180 deg. /360 deg. Panorama, ePTZ

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Basic WDR (74dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Line-in and mic-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions); Sound detection

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.04W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Wall, Pendant, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024); FCC (Part15 Subpart B Class B); IK10; IP68; NEMA 4X; EN50155; UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    4.5 x 2.8" / 114.3 x 71.12mm

  • Weight

    1.03lbs / 0.47kg

About ACTi E925

What sets the E925 Day/Night Outdoor Mini Fisheye Dome Camera apart is its superior imaging capabilities and robust design. With a high-resolution 5-megapixel sensor delivering 1080p quality, this camera captures every detail with precision. Its adaptive IR LED technology ensures clear, sharp images, regardless of the time of day or lighting conditions.

The fixed lens with f1.19 mm / F2.0 offers a wide field of view, capturing more in each frame. The camera's Basic WDR (74 dB) feature further enhances image quality by balancing light and dark areas in high-contrast scenes. With a frame rate of 15 fps at a resolution of 2592 x 1944, you can expect smooth, high-definition video footage.

The E925 camera offers a unique 180/360-degree fisheye view, providing comprehensive coverage of your surroundings. This makes it an ideal choice for outdoor surveillance, where wide-angle monitoring is crucial.

Designed to withstand harsh conditions, this camera is weatherproof (IP68), vandal-proof (IK10), and vibration-proof (EN50155, M12 Connector). This ensures reliable performance in a variety of environments, from bustling city streets to quiet suburban neighborhoods.

In terms of video compression, the E925 supports both H.264 and MJPEG formats, offering flexibility in balancing video quality and storage requirements. Plus, with Power over Ethernet (PoE) support, installation is simplified, reducing the need for separate power cables.

In summary, the E925 Day/Night Outdoor Mini Fisheye Dome Camera with Adaptive IR LED, Basic WDR & Fixed Lens offers superior imaging capabilities, robust design, and flexible installation options, making it a standout choice for your surveillance needs.

ACTi E925 Features

  • 5MP high-resolution sensor for detailed 1080p video capture
  • Adaptive IR LED technology for clear day and night surveillance
  • Wide-angle f1.19 mm / F2.0 lens with 180/360-degree fisheye view
  • Basic Wide Dynamic Range (WDR) at 74 dB for balanced exposure
  • Durable, weatherproof (IP68) and vandal-proof (IK10) construction
  • Supports H.264 and MJPEG with efficient PoE installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture crystal-clear 5MP surveillance with this outdoor security camera, day or night.
  • Get wide-angle coverage with the 189° fisheye lens, perfect for monitoring large areas.
  • Weatherproof IP68 rated housing ensures reliable security camera performance in any conditions.
  • Adaptive IR LED provides up to 15m night vision, capturing clear footage even in total darkness.
  • Motion detection alerts sent right to your device for prompt security notifications.
  • Easy setup and integration with ACTi software for a seamless surveillance experience.

What's in the box:

  • ACTi E925 Day/Night Outdoor Mini Fisheye Dome Camera
  • Drill Template
  • Screw Kit
  • Hexagon Screwdriver
  • Dome Cover Tab
  • Cable Gland
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
