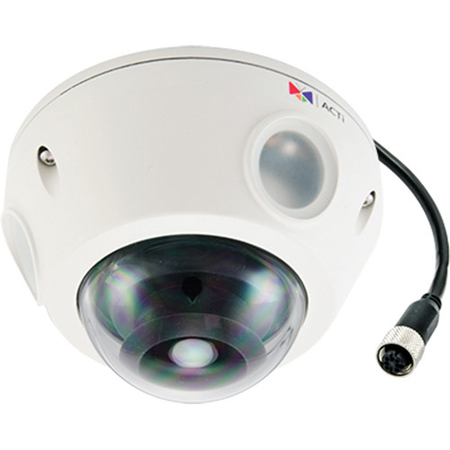

ACTi E928M 3MP Day/Night Outdoor Mini Dome Camera with M12 Connector & Fixed Lens

SKU: ACTE928M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi E928M Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/3"

  • Effective Pixels (H x V)

    2048 x 1536 (3.15 MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Standard

  • Minimum Illumination

    Color: 0.1 lux at F2.0 (30 IRE, 2400 deg. K); B/W: 0 lux at F2.0

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    Adaptive IR LED (Adjustable IR Exposure Compensation) x 3 (850nm)

  • IR Working Distance

    15m (0 lux, 30 IRE, Gain 255, manual shutter mode)

  • Electronic Shutter

    Manual Mode: 1/5 to 1/2000 sec; Auto Mode: 1/5 to 1/10000 sec

  • TV Lines

    1250

  • S/N Ratio

    52dB

  • Lens: Focal Length / Aperture

    Fixed focal, f2.93mm/F2.0

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount

    Board mount

  • Lens: Horizontal Viewing Angle

    85.7 deg.

  • Lens: Viewing Angle Adjustment

    Pan: +/-90 deg. ; Tilt: 0 to 90 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Resolution vs. Frame Rate

    20fps at 2048 x 1536; 30fps at 1920 x 1080; 30fps at 1280 x 720; 30fps at 800 x 600; 30fps at 640 x 480; 15fps at 320 x 240

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Superior WDR (110dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Input

    Line-in and mic-in, cable with 3.5mm phone jack

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), M12 connector

  • Network: Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions); Sound detection

  • Alarm: Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or Snapshot to FTP

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 2 (IEEE802.3af) / 5.04W

  • Environmental Casing

    Weatherproof (IP68 rated); Vandal proof (IK10 rated); Vibration Proof (EN50155); Transparent dome cover

  • Mount Type

    Surface, Gang box

  • Starting Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024); FCC (Part15 Subpart B Class B); IK10; IP68; NEMA 4X; EN50155; UL (for optional PoE injector)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available; ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    4.5 x 2.8" / 114.3 x 71.12mm

  • Weight

    1.04lbs / 0.47kg

About ACTi E928M

Experience unparalleled surveillance with the E928M Day/Night Outdoor Mini Dome Camera, a high-tech solution designed for comprehensive outdoor security. This advanced camera boasts a 3-megapixel sensor capable of delivering crisp, full HD 1080p video at a smooth 30 frames per second, ensuring every detail is captured with precision.

Equipped with a sophisticated Adaptive IR LED, the E928M provides exceptional night vision, automatically adjusting to the level of ambient light to ensure clear, detailed images even in complete darkness. The camera's fixed lens, with a focal length of 2.93mm and an aperture of F2.0, offers a wide field of view for extensive coverage of your outdoor spaces.

The state-of-the-art Superior Wide Dynamic Range (WDR) of 110 dB allows the camera to balance the most challenging lighting conditions, ensuring that both brightly lit and shadowed areas are visible and clear. This makes the E928M an ideal choice for environments with high contrast and changing light levels.

Constructed to withstand the elements, the camera is weatherproof with an IP68 rating, meaning it is fully protected against dust and can withstand continuous immersion in water. Additionally, it is vandal-proof with an IK10 rating, ensuring it can resist physical impacts, and vibration-proof according to EN50155 standards, making it robust enough to handle any outdoor condition.

The inclusion of an M12 connector highlights the camera's innovative design, ensuring secure and reliable connections that are essential for outdoor applications. With Power over Ethernet (PoE) capability, the E928M simplifies installation by allowing both power and data to be transmitted over a single network cable, reducing the need for additional wiring and power sources.

Whether you're looking to secure a commercial property, monitor a public space, or protect your home, the E928M Day/Night Outdoor Mini Dome Camera with Adaptive IR LED, Superior WDR, and Fixed Lens is your go-to choice for a sophisticated and reliable outdoor surveillance system.

ACTi E928M Features

  • 3MP full HD 1080p resolution for crystal-clear surveillance footage
  • Adaptive IR LED technology for superior night vision capabilities
  • Wide-angle fixed lens at f2.93mm/F2.0 for expansive outdoor coverage
  • Superior WDR at 110 dB to handle diverse lighting conditions seamlessly
  • Weatherproof IP68 and vandal-proof IK10 ratings for durable outdoor use
  • PoE-enabled for streamlined installation with a single network cable

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear 3MP surveillance footage with this outdoor security camera, day or night.
  • Weatherproof IP68 rating ensures reliable security camera performance in any environment.
  • Get superior WDR (110dB) for balanced video in high-contrast lighting with this camera.
  • Adaptive IR LED provides up to 15m night vision, ensuring your property is always protected.
  • Vandal-proof IK10 housing protects your security investment from tampering and damage.
  • Easy setup with PoE and M12 connector makes this mini dome camera ideal for any location.

What's in the box:

  • ACTi E928M Day/Night Outdoor Mini Dome Camera with M12 Connector
  • Screw Kit
  • Drill Template
  • Hexagon Screwdriver
  • Extra Desiccant Bag
  • Cosmetic Cover
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
