Actiontec Ethernet to Coax MoCA Network Adapter for Cable TV Households Specifications

  • RF Interface

    Connector: F-type
    Impedance: 75Ohms

  • Network Center Frequency Range

    1150 - 1500MHz

  • Network Frequency Range

    1125 - 1525MHz

  • Max Transmit Power

    +3 dBm (52 dBmV)

  • Link Conditions

    Min Attenuation (> 250 Mbps):10dB min
    Max Attenuation (> 250 Mbps):50dB max
    Max Attenuation (>30 Mbps):68dB max

  • Network Size

    16 devices (including NC)

  • Max Physical Data Rate

    Up to 270 Mbps

  • Coax Application Data Rate

    Up to 175 Mbps bi-directional combined

  • Ethernet Interface

    Connector Type: RJ-45
    Configuration: One port
    Protocol: IEEE802.3x, 100M Fast Ethernet

  • MoCA Version

    MoCA 1.1

  • Link Delay

    Typical: 3.5 ms
    Max: 9 ms

  • Regulatory Approvals

    FCC
    UL
    MoCA

  • Minimum System Requirements

    TCP/IP network protocol installed for Internet connectivity
    An available RJ-45 Ethernet port
    Coexists with most broadband services
    Coexists with cable TV services
    Uses the existing Coaxial cabling
    No computer or special software is required

  • Power Requirements

    Power Consumption: < 5 Watts
    Input Range: 100-240 VAC, 50/60Hz

  • Ambient Temperature Range

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature Range

    23 to 149 deg. F (-5 to 65 deg. C)

  • Operating Humidity

    10 to 95% non-condensing

  • UPC Code

    789286808011

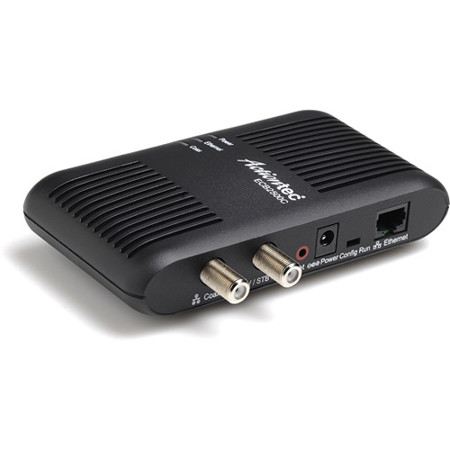

About Actiontec Ethernet to Coax MoCA Network Adapter for Cable TV Households

Designed for cable broadband subscribers, the ECB2500C MoCA Network Adapter makes it easy and affordable to add the reliability of a wired Internet connection through the home's existing coaxial cables. Based on the highly popular MoCA (Multimedia over Coax Alliance) standard, the adapter delivers speeds up to 270 Mbps wherever there's a coaxial port. The ECB2500C is an ideal solution for connecting the gaming console, HDTV or other home theater device that requires a fast, reliable, 'always on' Internet connection. It's also a great way to relieve bandwidth pressure on your home wireless network.

• Supports full Ethernet speed
• Uses existing coax cabling
• Reduced beacon power level
• Up to 1004MHz RF signal pass through
• Coexistence with cable TV services

Fast for High Performance Home Entertainment Networking
The ECB2500C MoCA adapter delivers a strong and stable connection (up to 270 Mbps) that will allow you to experience silky-smooth streaming HD video without the lags and buffering associated with lower performance connections. The product supports QOS to manage your bandwidth, ensuring critical applications like video streaming get allocated the priority bandwidth.

Works Wherever you Have a Coax Outlet
MoCA technology turns your home's existing coaxial wires into a high-speed, whole home network. Wherever you have a coaxial port, you can get high speed Internet access., perfect for online gaming or streaming an HD movie. This means you can connect a device in the home theater, even bring an awesome gaming experience to the basement, without having to run Ethernet cable all over the house or struggle with wireless dead zones or spotty signal strength.

Compatible with Cable Service
The ECB2500C is designed specifically for homes with Cable TV and is compatible with virtually any device that has an Ethernet port, including Blu-ray, Xbox 360, PS3, streaming media devices, computers and more. It does not support homes with satellite TV.

What's in the box:

  • Actiontec Ethernet to Coax MoCA Network Adapter
  • Owner's Manual
  • Actiontec 1 Year Limited Warranty
