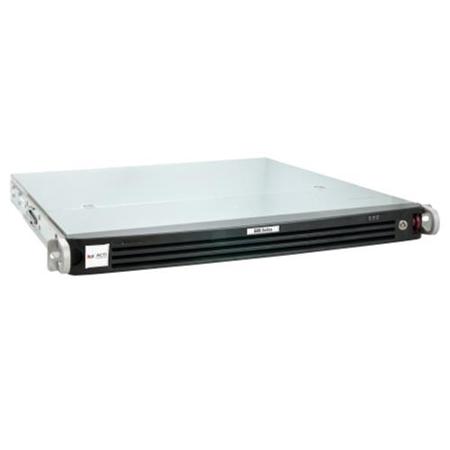

ACTi ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR, No HDD
See all ACTi items

ACTi ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR with Recording 4x 1080p/30fps, No HDD

SKU: ACTENR190

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR support cameras from different manufacturers?

Yes, the ENR-190 NVR is designed to work with a variety of cameras, as long as they are compatible with the NVR's specifications.

What type of external storage device can I use with the ENR-190 NVR?

You can use any external hard drive that is compatible with the NVR's technical specifications. Please refer to the product manual for detailed information.

Can I view live footage remotely using the Mobile or Web Client?

Yes, the ENR-190 NVR provides live view functionality through both the Mobile and Web Client. This allows you to monitor your surveillance system remotely.

What does it mean that this NVR is a standalone device?

A standalone NVR means that the device can function independently without the need for a computer. All it needs is a compatible external storage device to store the recorded footage.

What are the event trigger, response, and notification features?

These features allow the NVR to react to specific events or triggers, such as motion detection. When triggered, the NVR can be set to respond in certain ways, like starting a recording, and send notifications to the user.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi ENR-190 Specifications

  • Maximum Number of Clients

    1 local, 2 remote

  • Maximum Number of Cameras

    16

  • Video Compression

    H.264

  • Audio Compression

    PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback)

  • Maximum Camera Resolution

    Local display: Up to 4-Megapixel
    Remote display: Up to 10-Megapixel

  • Live View: Display Layout Mode

    1, 2, 4, 6, 8, 9, 10, 12, 13, 16

  • Live View: Layout Tour (Auto Patrol)

    Automatic switch between different display layouts

  • Live View: Digital Zoom

    Zoom in digitally by mouse

  • Live View: Event status

    Display status for network/record/motion/DI/video loss upon every video region

  • Live View: Dual Stream Management

    Live view of stream 1 or stream 2 of dual stream devices

  • PTZ: Control

    Pan, tilt and zoom controls
    speed control

  • PTZ: Preset Points and Tours

    Go/set preset points

  • PTZ: Number of Preset Points

    32

  • PTZ: Joystick

    USB based joystick supported

  • PTZ: Default Protocol

    URL command

  • Scheduled Recording

    Record video with user defined schedule

  • Event Recording

    Record video when the alarm event is triggered, including the pre-event buffered video clip

  • Event Speed-up Recording

    Record I frame only in normal status, and record full frames when the alarm event is triggered

  • Manual Recording

    Instant recording upon mouse click

  • Recording Frame Rate

    Max 480 fps total
    Max 30 fps per camera

  • Maximum Recording Throughput

    48Mbps

  • Recording Dual Stream Management

    Recording of stream 1 or stream 2 of dual stream devices

  • Interface

    Serial ATA

  • Maximum HDD Capacity

    4x 6TB (HDD not included)

  • HDD Bay

    Maximum 4 disks (disk not included)

  • Time Based Video Search

    Search video recordings by time, channel or bookmark

  • Event Based Video Search

    Search event triggered video recordings

  • Playback Control

    Forward and backward playback with speeds 1/2x-1x-32x
    pause
    stop

  • Synchronized Playback

    16 channels

  • Manual Snapshot

    Create snapshot from playback for export

  • Video Cropping

    Crop a short video clip from long recording file and save it as an independent file
    video clip length:(1-30mins)

  • Video Export

    Export video clips in AVI/RAW format

  • Event Trigger

    Video motion detection
    External device through digital input
    Network loss and recovery

  • Event Response

    Record video
    Play alert beep
    Activate external device through digital output
    E-mail notification with snapshots
    Enlarge
    video loss
    Pop-up instant playback
    Go to PTZ preset point

  • Permission Control

    Multi-group/users, liveview/playback/setup/remote level permission

  • Operating System

    Embedded Linux

  • System Status Monitor

    Real time status reports on remote browser

  • Language

    Multi-language support

  • PC Web Browser

    Microsoft Internet Explorer 9, 10 or 11

  • Remote Client PC System Requirement

    Intel Core 2 Quad 2.66GHz, 32/64-bit, 4GB RAM

  • Mobile Client Program

    Mobile device application (ACTi Mobile Client) supports live view
    PTZ control
    Event or time based search and playback Supported devices: iPhone, iPad, iTouch and Android device

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    10% to 85% RH

  • Power Source / Consumption

    100-240V AC 50/60Hz; 64W

  • Approvals

    ENR-140: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
    Adapter: CE, FCC, UL, PSE, Efficiency Level V

  • USB

    USB 2.0, 2 ports

  • Ethernet Port

    LAN1: 1000Base-T
    LAN2: 10/100Base-T (WAN port)

  • Display port

    HDMI

  • Integration: Unified Solution

    Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software

  • Integration: Open Platform Solution

    Support ONVIF compliant devices

  • Dimensions (W x H x D)

    17.3 x 1.7 x 19.9" / 439.42 x 43.18 x 505.46mm

  • Weight

    12.12lb / 5.5kg

1 Accessories for ACTi ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR with Recording 4x 1080p/30fps, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About ACTi ENR-190

Experience the advanced capabilities of the ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR, a high-tech solution for your security surveillance needs. This sophisticated device is designed to manage and record footage from up to 16 cameras or video encoders, providing comprehensive surveillance coverage.

Each camera connected to this innovative NVR can capture crisp, clear video at 1080p/30fps, ensuring high-quality footage for your security needs. The standalone NVR does not require a computer to function, offering a more reliable and independent surveillance system.

The ENR-190 NVR features a 4-bay rackmount design, making it a compact and efficient choice for your surveillance setup. It supports live view of up to 16 channels simultaneously, allowing for real-time monitoring. Additionally, it offers synchronized playback on a local network for up to 16 channels, providing a seamless review of your recorded footage.

With the ability to export video in both RAW and AVI formats, this NVR ensures compatibility with various playback devices. It also includes event trigger, response, and notification features, enhancing its functionality and user experience.

For easy access and control, the ENR-190 NVR comes with a Mobile Client and Web Client, allowing you to manage your surveillance system remotely. This device does not include a hard drive, making it flexible for use with an external storage device of your choice.

The ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR is a smart choice for those seeking an intelligent and comprehensive surveillance solution. It comes with 16 free channel licenses included, making it a cost-effective addition to your security system. Experience the difference with this advanced, high-tech NVR.

ACTi ENR-190 Features

  • Advanced 16-channel NVR supports up to 16 cameras for comprehensive coverage
  • High-definition recording at 1080p/30fps for clear, detailed surveillance footage
  • 4-bay 1U rackmount design for space-saving, efficient security system setup
  • Standalone operation with synchronized local playback across all channels
  • Versatile video export options with RAW and AVI format compatibility
  • Remote access and management with user-friendly Mobile and Web Clients

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage 16 channels with this network video recorder, perfect for comprehensive surveillance systems.
  • Enjoy remote access to your security camera footage anytime, anywhere via mobile or PC.
  • Maximize storage capacity with 4 HDD bays, allowing for extensive video recording archives.
  • Get detailed video quality with support for 4-Megapixel local and 10-Megapixel remote display.
  • Use smart motion detection to trigger event recording, ensuring you never miss critical activity.
  • Integrate seamlessly with ACTi cameras and ONVIF devices for a unified security solution.

What's in the box:

  • ACTi ENR-190 16-Channel 4-Bay 1U Rackmount Standalone NVR (No HDD)
  • Power Cord (US Type)
  • 16x HDD Screws
  • 16-Channel Free License
  • Universal Converter
  • Mouse
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
