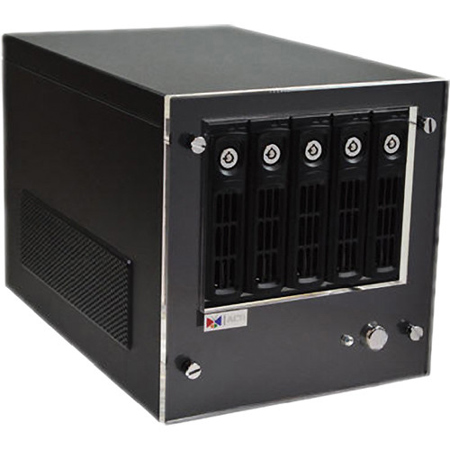

ACTi GNR-3000 64-Channel 5-Bay Tower Standalone NVR

ACTi GNR-3000 64-Channel 5-Bay Tower Standalone NVR with Recording 64x 1080p/30fps

SKU: ACTGNR3000
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum number of cameras or video encoders the GNR-3000 can manage?

The GNR-3000 can manage up to 64 cameras or video encoders, making it suitable for large-scale surveillance systems.

What video formats does the GNR-3000 support for exporting?

The GNR-3000 supports both RAW and AVI formats for video exporting.

How does the event trigger, response, and notification system work?

This system in the GNR-3000 keeps you informed of any significant events in your surveillance area in real-time.

What platforms can I use to access my surveillance system with the GNR-3000?

The GNR-3000 is equipped with a Mobile Client, Web Client, and Workstation, providing you with multiple platforms for accessing your surveillance system.

Does the GNR-3000 support cameras from brands other than ACTi?

Yes, the GNR-3000 supports non-ACTi cameras via a licensed Camera Device Pack, providing you with the flexibility to integrate various camera brands into your system.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi GNR-3000 Specifications

  • Maximum Number of Clients

    4 (without local client)

  • Maximum Number of Cameras

    64

  • Free License

    32 Channels

  • Compression

    H.264, MPEG-4, MJPEG

  • Maximum local display resolution

    1920 x 1200

  • Live View: Display Layout Mode

    Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
    Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64

  • Live View: View Manager

    An interface to define display layouts and the pre-set cameras within layout in the public or private view

  • Live View: View Patrol

    Automatic switch between different views or devices

  • Live View: View Panel

    Contains the list of pre-defined views for quick launch

  • Live View: Digital Zoom

    Zoom in/out digitally by PiP (Picture-in-Picture)

  • Live View: Camera Tree

    Drag and drop video source from camera tree into display layout
    Display camera status on the tree

  • Live View: Manual Recording / Snapshot

    Instant recording upon mouse click / Instant snapshot upon mouse click or hot key

  • Live View: Event Panel

    Display event status upon alarm or upon connection loss or recovery

  • Live View: Two-way Audio

    Audio sound from and to all the audio supported devices
    Audio broadcast to multiple devices at the same time

  • Live View: Dual Stream Management

    Live view of stream 1 or stream 2 of dual stream devices

  • Live View: Instant Playback

    Instant playback in live view window

  • e-Map: Layout

    Area maps with camera icons, small live view windows
    Hyperlinked

  • e-Map: Map Switch and Tour

    Manual switch and auto tour modes selectable

  • e-Map: Setup

    e-Map image upload
    Camera positioning
    Map linking

  • e-Map: PTZ Mode

    Mouse PTZ mode to control e-Map video streams

  • PTZ: Control

    Pan, tilt and zoom controls
    Speed control
    Both buttons and mouse controls

  • PTZ: Preset Points and Tours

    Create preset points
    Create auto tours between preset points

  • PTZ: Number of Preset Points

    32

  • PTZ: Joystick

    USB based joystick supported

  • PTZ: Default Protocol

    Auto-detect camera's PTZ protocol
    Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

  • Scheduled Recording

    Record video with user defined schedule

  • Event Recording

    Record video when the alarm event is triggered, including the pre-event buffered video clip

  • Speed Up

    Different recording frame rate settings for non-event and triggered event

  • Manual Recording

    Instant recording upon mouse click

  • Recording Dual Stream Management

    Recording of stream 1 or stream 2 of dual stream devices

  • Recording Frame Rate

    Max 1920 fps total
    Max 30 fps per camera

  • Maximum Recording Throughput

    300Mbps

  • Interface

    Serial ATA

  • HDD Bay

    Maximum 5 disks (1 system disk included)

  • RAID Level

    Software RAID 0, 1

  • External Storage Support

    eSATA, iSCSi, USB mass storage

  • Time Based Video Search

    Search video recordings by time or channel

  • Event Based Video Search

    Search alarm triggered video recordings

  • Playback Control

    Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame
    pause
    stop

  • Synchronized Playback

    Up to 9 channels for local display
    up to 64 channels for remote client

  • Manual Snapshot

    Instant snapshot from playback upon mouse click

  • Digital Zoom

    Zoom in/out digitally by PiP (Picture-in-Picture)

  • Video Cropping

    Crop a short video clip from long recording file and save it as an independent file

  • Video Export

    Export video clips in AVI or RAW format
    Text overlay supported

  • Event Trigger

    Video motion detection
    Passive IR sensor
    External device through digital input
    Network loss and recovery
    Server loss and recovery
    Disk full
    Disk not found

  • Event Response

    Record video
    Pop-up window with live video
    Switch to hotspot window
    Play beep sound
    Activate external device through digital output
    Upload snapshot to FTP server
    Execute system command to activate other programs
    E-mail notification with snapshots
    Command a PTZ device to go to a preset point

  • Manual Event

    Manually activate external devices through digital output via live view monitor

  • Scheduler

    Define the schedule of event manager

  • Permission Control

    Multi-group/users, liveview/playback/setup/remote level permission

  • Operating System

    Win 7 Std. Embedded

  • Language

    Multi-language support

  • Remote Access: PC Client Program

    User interface program (Workstation) with live view
    PTZ
    Playback
    e-Map
    Event management
    Setup

  • Remote Access: PC Web Browser

    Microsoft Internet Explorer 8.0 or 9.0 with live view
    PTZ
    Playback
    Event management
    Setup

  • Remote Access: Mobile Client Program

    Mobile device application (MobileGo) supports live view
    PTZ control
    Event or time based search and playback Supported devices: iPhone, iPad, iPod Touch

  • Remote Access: Remote Client PC

    1-16 channels: Intel Core 2 Quad 2.4GHz, 4GB RAM
    17-64 channels: Intel Core i7-920 2.67GHz, 4GB RAM

  • Operating Temperature

    0 to 40 deg. C/ 32 to 104 deg. F

  • Operating Humidity

    10% to 85% RH

  • Power Source / Consumption

    110V to 220V AC 50/60Hz /200W

  • Approvals

    CE (EN 55022 Class B, EN 55024)
    FCC (Part15 Subpart B Class B)

  • USB

    USB 2.0, 4 ports

  • Ethernet Port

    2, Ethernet (1000 Base-T), RJ-45 connector

  • Display port

    VGA

  • Integration: Unified Solution

    Fully compatible with ACTi cameras
    encoders
    Central management system
    TV wall and intelligent video surveillance software

  • Integration: Open Platform Solution

    Support ONVIF compliant devices

  • Dimensions (W x H x D)

    7.9 x 8 x 12" / 200.66 x 203.2 x 304.8mm

  • Weight

    Without HDD: 8.55lb / 3.88kg

About ACTi GNR-3000

How powerful and efficient is the GNR-3000 64-Channel 5-Bay Tower Standalone NVR with Recording 64x 1080p/30fps This high-performance device is designed with a 5-bay desktop that features software RAID (0,1), providing you with the flexibility and security you need for your data storage.

This standalone NVR is capable of managing up to 64 cameras or video encoders, making it an ideal solution for large-scale surveillance systems. It offers recording capabilities for up to 64 channels, ensuring comprehensive coverage of your security needs.

The GNR-3000 also provides a live view for up to 16 channels locally and up to 64 channels remotely, offering you real-time monitoring wherever you are. Its synchronized playback feature allows for local viewing of up to 9 channels and remote viewing of up to 64 channels, providing you with a seamless viewing experience.

With the ability to export video in both RAW and AVI formats, this device ensures that your footage is always in the best quality for review or evidence. It also features an event trigger, response, and notification system, keeping you informed of any significant events in your surveillance area.

The GNR-3000 is equipped with a Mobile Client, Web Client, and Workstation, providing you with multiple platforms for accessing your surveillance system. Its location-based management with eMap allows for easy navigation and control of your security setup.

This device comes with a 32-channel free license included, giving you a head start in setting up your surveillance system. Additionally, it supports non-ACTi cameras via a licensed Camera Device Pack, providing you with the flexibility to integrate various camera brands into your system.

In summary, the GNR-3000 64-Channel 5-Bay Tower Standalone NVR with Recording 64x 1080p/30fps is a robust and versatile device that offers comprehensive surveillance solutions for your security needs.

ACTi GNR-3000 Features

  • High-performance 5-bay desktop with software RAID (0,1) for secure data storage
  • Manage and record up to 64 channels, ideal for large-scale surveillance systems
  • Offers live view and synchronized playback for up to 64 channels remotely
  • Features event trigger, response, and notification system for real-time updates
  • Equipped with Mobile Client, Web Client, and Workstation for flexible access
  • Supports non-ACTi cameras via licensed Camera Device Pack for system versatility

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage 64 channels with this ACTi NVR, recording crystal-clear video at 1080p/30fps for comprehensive surveillance.
  • Enjoy remote access via PC, web browser, or mobile app, keeping your security video recorders at your command.
  • Benefit from motion detection, which triggers recording and alerts, ensuring critical events are captured.
  • Expand your storage capacity with 5 HDD bays, allowing for extensive video archiving and data retention.
  • Experience high resolution live view with customizable display layouts, optimizing your monitoring capabilities.
  • Set up is easy, fully compatible with ACTi cameras and ONVIF devices for a seamless security solution.

What's in the box:

  • ACTi GNR-3000 64-Channel 5-Bay Tower Standalone NVR
  • Power Cord
  • System Disk
  • 32-Channel Free License
  • ACTi 3 Year Limited Warranty
