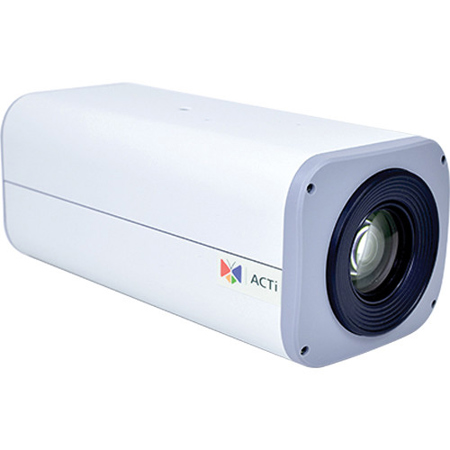

ACTi I27 4MP Day & Night Box Camera with f4.3-129mm / F1.6-5.0 Lens, 30x Optical Zoom

SKU: ACTI27

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ACTi I27 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.8"

  • Effective Pixels

    2688 (H) x 1520 (V) (4.09MP)

  • Day / Night

    Yes

  • Low Light Sensitivity

    Superior

  • Minimum Illumination

    Color: 0.1 lux at F1.6 (30 IRE, 2400 deg. K); B/W: 0.05 lux at F1.6 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch; Configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode)

  • Horizontal Resolution

    1850 TVL

  • S/N Ratio

    56dB

  • Zoom Ratio / Speed

    30x optical / 2.87 sec (wide to tele)

  • Zoom Application

    Camera installation; Auto zoom by event; Manual operation

  • Focal Length / Aperture

    Zoom, f4.3 - 129mm / F1.6 - 5.0

  • Iris

    DC iris

  • Focus

    Auto focus

  • Lens Mount

    Board mount

  • Horizontal Viewing Angle

    58.9 deg. to 2.11 deg.

  • Video Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Bit Rate

    28 Kbps - 6 Mbps (per stream)

  • Bit Rate Mode

    Constant, Variable

  • Max. Frame Rate vs. Resolution

    15 fps at 2688 x 1520; 15 fps at 2560 x 1440; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; 15 fps at 320 x 240

  • Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Image Enhancement

    Extreme WDR (145 dB); White balance: automatic, hold and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer

  • Image Orientation

    Image flip and mirror

  • Privacy Mask

    4 configurable regions

  • Text Overlay

    User defined text on video

  • Audio Compression

    8kHz, Mono, PCM, 16 bit encoding; G. 711

  • Audio-In

    Terminal block

  • Audio-Out

    Terminal block

  • Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Security

    IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control

  • Alarm Trigger

    Video motion detection (3 regions); External device through digital input; Sound detection

  • Alarm Response

    Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output

  • Digital Input

    1, Terminal block

  • Serial Port

    1, RS-485/RS-422, Terminal block

  • Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Digital Output

    1, Terminal block

  • Power Source / Consumption

    PoE Class 3 (IEEE802.3af) / 7.2W; DC 12V (adapter not included) / 6.12W

  • Environmental Casing

    Optional housing (IP 66 rated)

  • Mount Type

    Wall, Ceiling, Corner, Pole

  • Starting Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Operating Humidity

    10 to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); UL (for optional PoE injector and power adapter)

  • Unified Solution

    Fully compatible with ACTi software

  • ISV Integration

    Software Development Kit (SDK) available, ONVIF compliant

  • GPS Position

    Manual setting

  • Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality)
    Safari with QuickTime installed another browsers with VLC installed (partial functionality)

  • VMS-based Analytics

    Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation, (require PC-based or standalone IVS or ALPR Server)

  • Dimensions (W x H x D)

    81 x 71 x 176mm / 3.19 x 2.80 x 6.93"

  • Weight

    720g / 25.40oz

About ACTi I27

• 4 Megapixel with 1080p
• Day & Night with Superior Low Light Sensitivity
• 30x Zoom Lens with f4.3 - 129mm / F1.6 - 5.0, DC Iris, Auto Focus
• Advanced WDR (75 dB)
• 30 fps at 1920 x 1080

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture clear video with this 4MP security camera, perfect for detailed surveillance.
  • See clearly, day or night, with superior low light sensitivity & day/night functionality.
  • Use the 30x optical zoom to focus on distant objects, enhancing your security coverage.
  • Get alerts with advanced motion detection, ensuring you never miss a critical event.
  • Remotely monitor your property via mobile app for peace of mind wherever you are.
  • Store footage locally on a MicroSD card for convenient access to recorded video.

What's in the box:

  • ACTi I27 4MP Day & Night Box Camera with f4.3-129mm / F1.6-5.0 Lens
  • Terminal Block (for Power)
  • Terminal Block (for Audio and DI/DO)
  • Terminal Block (for Serial Port)
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
