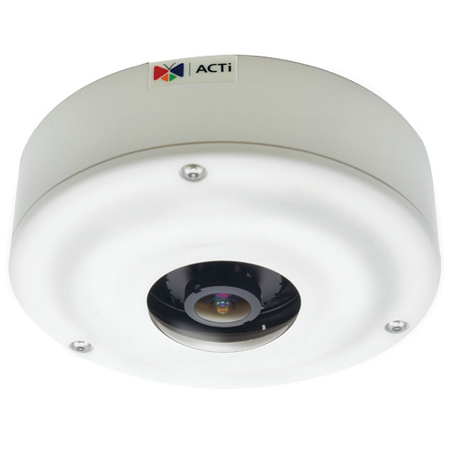

ACTi I71 5MP Day/Night ePTZ Hemispheric Outdoor IP Dome Camera with Fixed Lens
See all ACTi items

ACTi I71 5MP Day/Night ePTZ Hemispheric Outdoor IP Dome Camera with Fixed Lens

SKU: ACTI71

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the I71 Day/Night ePTZ Hemispheric Outdoor IP Dome Camera?

The camera boasts a high-resolution 5-megapixel sensor and delivers 1080p clarity for superior image quality.

What is the advantage of the fisheye lens in this camera?

The innovative fisheye lens with f1.05mm / F2.8 offers a comprehensive 180/360-degree panorama view, providing dewarped streaming for a distortion-free, wide-angle perspective.

Does the camera perform well in low-light conditions?

Yes, the camera has superior low light sensitivity which ensures clear, detailed images even in dimly lit conditions, enhancing its day and night surveillance capabilities.

What is the significance of the Power over Ethernet (PoE) feature?

The Power over Ethernet (PoE) feature simplifies the installation process and power supply of the camera, making it a convenient and efficient choice for your security needs.

How durable is the I71 Day/Night ePTZ Hemispheric Outdoor IP Dome Camera?

The camera is built to withstand harsh outdoor conditions. It is both weatherproof (IP68) and vandal-proof (IK10), offering reliable performance and durability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi I71 Specifications

  • Image Sensor

    Progressive Scan CMOS

  • Sensor Size

    1/2.5"

  • Effective Pixels

    2592 (H) x 1944 (V) (5.04 MP)

  • Horizontal Resolution

    1850 TVL

  • Day / Night

    Yes

  • Low Light Sensitivity

    Superior

  • Minimum Illumination

    Color: 0.1 lux at F2.8 (30 IRE, 2400 deg. K)
    B/W: 0.05 lux at F2.8 (30 IRE, 2400 deg. K)

  • Color to B/W Switch

    ISP based switch, configurable

  • Mechanical IR Cut Filter

    Yes

  • IR Sensitivity Range

    700 - 1100nm

  • IR LED

    No

  • Electronic Shutter

    Manual mode: 1/5 to 1/2000sec
    Auto mode: 1/5 to 1/10000sec

  • S/N Ratio

    56dB

  • Lens: Focal Length / Aperture

    Fixed (fisheye lens), f1.05mm / F2.8

  • Lens: Iris

    Fixed iris

  • Lens: Focus

    Fixed focus

  • Lens: Mount Type

    Board mount

  • Lens: Horizontal Viewing Angle

    Overview area: 180 deg.
    High detail area: 109.8 deg.

  • Video: Compression

    H.264 (Baseline / Main / High profile), MJPEG

  • Video: Max. Frame Rate vs. Resolution

    Fisheye view mode:
    15 fps at 2592 x 1944
    15 fps at 2048 x 1536
    30 fps at 1440 x 1080
    30 fps at 1280 x 960
    30 fps at 800 x 600
    30 fps at 640 x 480
    15 fps at 320 x 240

    Dewarped view mode:
    12 fps at 2592 x 1944
    12 fps at 2048 x 1536
    12 fps at 1920 x 1080
    12 fps at 1280 x 720
    12 fps at 640 x 480
    12 fps at 320 x 240

  • Video: View Mode

    Fisheye view
    Dewarped view: 180 / 360 deg. Panorama, ePTZ

  • Video: Multi-Streaming

    Simultaneous dual streams based on two configurations

  • Video: Bit Rate

    28Kbps - 6Mbps (per stream)

  • Video: Bit Rate Mode

    Constant, Variable

  • Video: Image Enhancement

    Advanced WDR (80dB)
    White balance: automatic, hold and manual
    Brightness
    Contrast
    Sharpness (auto)
    Automatic gain control
    2D+3D digital noise reduction
    Flickerless
    Defogging

  • Video: Privacy Mask

    4 configurable regions

  • Video: Text Overlay

    User defined text on video

  • Video: Image Orientation

    Image flip and mirror

  • Audio: Compression

    8kHz, Mono, PCM, 16 bit encoding; G.711

  • Audio: In

    Terminal block

  • Audio: Out

    Terminal block

  • Network: Protocol & Service

    TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP,ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P

  • Network: Ethernet Port

    1, Ethernet (10/100 Base-T), RJ-45 connector

  • Network: Security

    IP address filtering
    HTTPs encryption
    Password protected user levels
    Anonymous login
    IEEE802.1X network access control

  • Alarm: Trigger

    Video motion detection (3 regions)
    External device through digital input
    Sound detection

  • Alarm: Response

    Notify control center
    Go to ePTZ preset point or preset tour
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video or snapshot to FTP server
    Activate external device through digital output

  • Interface: Digital Input

    2, Terminal block

  • Interface: Digital Output

    2, Terminal block

  • Interface: Local Storage

    MicroSDHC/MicroSDXC memory card slot (card not included)

  • Power Source / Consumption

    PoE Class 3 (IEEE 802.3af) / 7.06W
    DC 12V (adapter not included) / 6.12W

  • Environmental Casing

    Weatherproof (IP68 rated)
    Vandal proof (IK10)
    Transparent dome cover

  • Mount Type

    Surface, Pendant, Wall, Corner, Pole, Gang box

  • Starting Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Temperature

    -40 to 50 deg. C / -40 to 122 deg. F

  • Operating Humidity

    10% to 85% RH

  • Approvals

    CE (EN 55022 Class B, EN 55024)
    FCC (Part15 Subpart B Class B)
    IP68
    NEMA 4X
    IK10
    UL (for optional PoE injector and power adapter)

  • Integration: Unified Solution

    Fully compatible with ACTi software

  • Integration: ISV Integration

    Software Development Kit (SDK) available
    ONVIF compliant

  • Integration: GPS Position

    Manual setting

  • Integration: Firmware Access Browser

    Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)

  • Dimensions (Dia. x H)

    6 x 2.6" / 152.4 x 66.04mm

  • Weight

    2.0lb / 0.91kg

About ACTi I71

Before you decide on a security solution, consider the I71 Day/Night ePTZ Hemispheric Outdoor IP Dome Camera. This high-tech device boasts a 5-megapixel sensor, delivering crystal-clear 1080p resolution for superior image quality. Its advanced Wide Dynamic Range (WDR) of 87 dB ensures optimal performance in varying light conditions, making it an ideal choice for round-the-clock surveillance.

The camera's innovative fisheye lens with f1.05mm / F2.8 specifications offers a comprehensive 180/360-degree panorama view, providing dewarped streaming for a distortion-free, wide-angle perspective. This feature enhances the camera's ability to monitor large areas, making it a perfect fit for outdoor surveillance.

With a frame rate of 12 fps at a resolution of 2592x1944, this state-of-the-art camera captures smooth, high-resolution video footage. Its superior low light sensitivity ensures clear, detailed images even in dimly lit conditions, enhancing its day and night surveillance capabilities.

The I71 ePTZ camera also supports H.264 and MJPEG codecs, optimizing storage and bandwidth without compromising video quality. Its Power over Ethernet (PoE) feature simplifies installation and power supply, making it a convenient and efficient choice for your security needs.

Built to withstand harsh outdoor conditions, this sophisticated camera is both weatherproof (IP68) and vandal-proof (IK10), offering reliable performance and durability. Whether you need to secure a commercial property or monitor a residential area, the I71 Day/Night ePTZ Hemispheric Outdoor IP Dome Camera is a robust and advanced solution for your surveillance needs.

ACTi I71 Features

  • High-resolution 5-megapixel sensor delivering 1080p clarity for superior image quality
  • Advanced 87 dB Wide Dynamic Range (WDR) for optimal performance in various light conditions
  • Innovative fisheye lens with f1.05mm / F2.8 for a comprehensive 180/360-degree panorama view
  • Superior low light sensitivity for enhanced day and night surveillance
  • Supports H.264 and MJPEG codecs, optimizing storage and bandwidth usage
  • Power over Ethernet (PoE) feature for simplified installation and power supply
  • Weatherproof (IP68) and vandal-proof (IK10) for reliable outdoor performance and durability

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every detail with the 5MP camera, ensuring high-quality surveillance footage.
  • Enjoy a wide 180° view, minimizing blind spots with this hemispheric security camera.
  • Weatherproof IP68 casing ensures reliable outdoor use, protecting against harsh conditions.
  • Advanced motion detection sends instant alerts, keeping you informed of any activity.
  • Remote access via mobile offers peace of mind, letting you monitor your property anytime.
  • Benefit from superior low light sensitivity, providing clear night vision in dim environments.

What's in the box:

  • ACTi I71 Day/Night ePTZ Hemispheric Outdoor IP Dome Camera
  • Cable Gland
  • Conduit Gland
  • Hexagon Screwdriver
  • Screw Plugs
  • Screws for Surface Mount
  • Terminal Block for Power
  • Terminal Block for DI/DO
  • Terminal Block for Audio In/Out
  • Drill Template
  • Quick Installation Guide
  • ACTi 3 Year Limited Warranty
