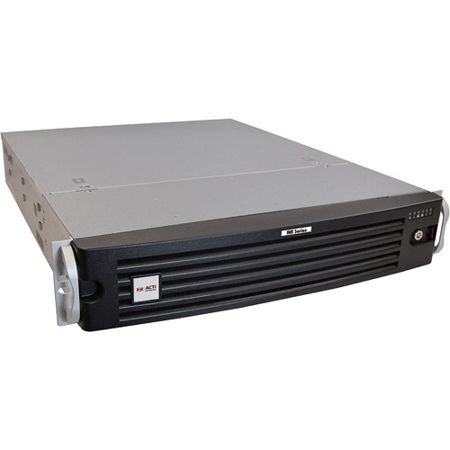

ACTi INR-410 200CH 8-Bay Software RAID Rackmount Standalone NVR with 500GB

ACTi INR-410 200-Channel 8-Bay Software RAID Rackmount Standalone NVR with 500GB HDD

SKU: ACTINR410
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the storage capacity of the INR-410 200-Channel 8-Bay Software RAID Rackmount Standalone NVR?

The INR-410 comes with a 500GB HDD, providing ample storage for high-quality video footage.

What software does the INR-410 use for network video surveillance?

The INR-410 uses ACTi NVR 3.0, a Windows-based software, for its network video surveillance solution.

How many video streaming devices can the INR-410 support?

The INR-410 can support real-time monitoring and recording from up to 200 ACTi video streaming devices.

What is the benefit of the INR-410's rule-based services?

The rule-based services of the INR-410 are designed to trigger multiple schedules and events, enhancing the security protocol and response to incidents.

What is the purpose of the INR-410's software RAID configuration?

The software RAID configuration of the INR-410 provides added data protection and system stability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi INR-410 Specifications

  • Maximum Number of Clients

    1 local, 3 remote

  • Maximum Number of Cameras

    200

  • Recorder: Free License

    64 channels

  • Recorder: Compression

    H.264, MPEG-4, MJPEG

  • Maximum Local Display Resolution

    1920 x1080

  • Live View: Display Layout Mode

    Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
    Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64

  • Live View: View Manager

    An interface to define display layouts and the pre-set cameras within layout in the public or private view

  • Live View: View Patrol

    Automatic switch between different views or devices

  • Live View: View Panel

    Contains the list of pre-defined views for quick launch

  • Live View: Digital Zoom

    Zoom in/out digitally by PiP (Picture-in-Picture)

  • Live View: Camera Tree

    Drag and drop video source from camera tree into display layout; display camera status on the tree

  • Live View: Manual Recording / Snapshot

    Instant recording upon mouse click / Instant snapshot upon mouse click or hot key

  • Live View: Event Panel

    Display event status upon alarm or upon connection loss or recovery

  • Live View: Two-way Audio

    Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time

  • Live View: Dual Streaming

    Live view of stream 1 or stream 2 of dual stream devices

  • Live View: Instant Playback

    Instant playback in live view window

  • e-Map: Layout

    Area maps with camera icons, small live view windows; hyperlinked

  • e-Map: Switch Travel

    Manual switch and auto tour modes selectable

  • e-Map: Setup

    e-Map image upload; camera positioning; map linking

  • e-Map: PTZ Mode

    Mouse PTZ mode to control e-Map video streams

  • PTZ: Control

    Pan, tilt and zoom controls; speed control; both buttons and mouse controls

  • PTZ: Preset Points and Tours

    Create preset points; create auto tours between preset points

  • PTZ: Number of Preset Points

    32

  • PTZ: Joystick

    USB based joystick supported

  • PTZ: Default Protocol

    Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

  • Record: Throughput

    Maximum total bitrate 300Mbps
    Example
    200 Channels: 1MP, 15fps, H.264, 1.5Mbps
    150 Channels: 2MP, 15fps, H.264, 2Mbps
    100 Channels: 2MP, 30fps, H.264, 3Mbps
    75 Channels: 5MP, 15fps, H.264, 4Mbps

  • Record: Scheduled

    Record video with user defined schedule

  • Record: Event

    Record video when the alarm event is triggered, including the pre-event buffered video clip

  • Record: Speed Up

    Different recording frame rate settings for non-event and triggered event

  • Record: Manual

    Instant recording upon mouse click

  • Record: Dual Stream Management

    Recording of stream 1 or stream 2 of dual stream devices

  • Recording Frame Rate

    Total: Max 6000fps
    Per Camera: Max 30fps

  • Storage: Interface

    Serial ATA

  • Storage: HDD

    Bundled System: Seagate 500GB 3.5" SATA HDD

  • Storage: HDD Bay

    8 (1 bay is occupied by system HDD)

  • Storage: RAID Level

    Software RAID 0, 1

  • Storage: External Storage Support

    eSATA, iSCSi, USB mass storage (USB 2.0)

  • Time

    Video Search: Search video recordings by time or channel

  • Event

    Video Search: Search alarm triggered video recordings

  • Playback Control

    Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop

  • Synchronized Playback

    Up to 9 channels for local display; up to 64 channels for remote client

  • Snapshot

    Manual: Instant snapshot from playback upon mouse click

  • Cropping

    Video: Crop a short video clip from long recording file and save it as an independent file

  • Video Export

    Export video clips in AVI or RAW format; text overlay supported

  • Event Management: Trigger

    Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery
    Network loss and recovery; Server loss and recovery; Disk full; Disk not found

  • Event Management: Event Response

    Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound
    Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs
    E-mail notification with snapshots; Command a PTZ device to go to a preset point

  • Event Management: Manual

    Manually activate external devices through digital output via live view monitor

  • Event Management: Schedule

    Define the schedule of event manager

  • Permission Control

    Multi-group/users, liveview/playback/setup/remote level permission

  • Operating System

    Windows Embedded Standard 7

  • Language

    Multi-language support

  • Remote Access: PC Client Program

    User interface program (Workstation) with live view, PTZ, playback, e-Map, event management, setup

  • Remote Access: PC Web Browser

    Microsoft Internet Explorer 8.0, 9.0 or 10.0 with live view, PTZ, playback, event management, setup

  • Remote Access: Mobile Client Program

    Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
    Supported devices: iPhone, iPad, iTouch and Android device

  • Remote Access: PC System Requirement

    1-16 channels: Intel Core 2 Quad 2.4GHz, 4GB RAM
    17-64 channels: Intel Core i7-920 2.67 GHz, 4GB RAM

  • Hardware: CPU

    Intel Processor

  • Hardware: RAM

    8GB

  • Hardware: Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Hardware: USB

    USB 2.0, 8x ports (2x front ports, 6x rear ports)

  • Hardware: Ethernet Port

    2x Gigabit Ethernet ports (1000 Base-T), RJ-45 connector

  • Hardware: eSATA Port

    2

  • Hardware: Display Port

    2x HDMI, VGA

  • Integration: Unified Solution

    Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software

  • Integration: Open Platform Solution

    Support ONVIF compliant devices

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    10 to 85% RH

  • Power Source / Consumption

    110 to 220V AC 50/60Hz / 85W

  • Dimensions (W x H x D)

    482.6 x 88 x 560mm / 19.00 x 3.46 x 22.05"

  • Weight

    With HDD & front bezel: 11.42kg / 25.15lbs

About ACTi INR-410

Discover the INR-410 200-Channel 8-Bay Software RAID Rackmount Standalone NVR, a high-performance and reliable solution designed for comprehensive security surveillance. This advanced system, powered by ACTi NVR 3.0, is a Windows-based software that delivers a full-featured distributed network video surveillance solution.

Crafted for efficiency and durability, the INR-410 boasts a robust 500GB HDD storage capacity, ensuring ample space for high-quality video footage across multiple channels. With the capability to support real-time monitoring and recording from up to 200 ACTi video streaming devices, this NVR is ideal for both local and remote network setups.

The system's centralized management feature streamlines operations, allowing for seamless control and access to your surveillance network. The INR-410's rule-based services are engineered to trigger multiple schedules and events, enhancing the security protocol and response to incidents.

Users will appreciate the INR-410's efficient software RAID configuration, which provides added data protection and system stability. This standalone NVR is a testament to ACTi's commitment to delivering durable and advanced surveillance technology that meets the demands of modern security needs.

Whether you're overseeing a large-scale enterprise or a complex security infrastructure, the INR-410 200-Channel 8-Bay Software RAID Rackmount Standalone NVR stands out as a superior choice for its expansive storage and trusted brand reputation. Experience peace of mind with a surveillance solution that is designed to perform consistently and reliably, keeping your premises secure around the clock.

ACTi INR-410 Features

  • 200-channel capacity for extensive surveillance coverage
  • 8-bay rackmount design with 500GB HDD for ample storage
  • ACTi NVR 3.0 software for advanced network video surveillance
  • Real-time monitoring and recording from local or remote networks
  • Centralized management system for streamlined operation control
  • Software RAID configuration for enhanced data protection and stability

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage up to 200 channels with this standalone NVR for comprehensive video surveillance.
  • Enjoy remote access via PC, web browser, or mobile app for on-the-go security monitoring.
  • Benefit from motion detection recording, capturing events only when movement is detected.
  • This network video recorder supports H.264, MPEG-4, and MJPEG compression for efficient storage.
  • Expand your storage capacity with 8 HDD bays, perfect for long-term video retention.
  • Quick, easy setup gets your security video recorders system running smoothly in no time.

What's in the box:

  • ACTi INR-410 200-Channel 8-Bay Software RAID Rackmount Standalone NVR with 500GB HDD
  • Power Cord
  • Adapter Converter
  • Front Cover
  • 4x HDD Tray Key
  • HDD Screw Pack
  • ACTi 3 Year Limited Warranty
