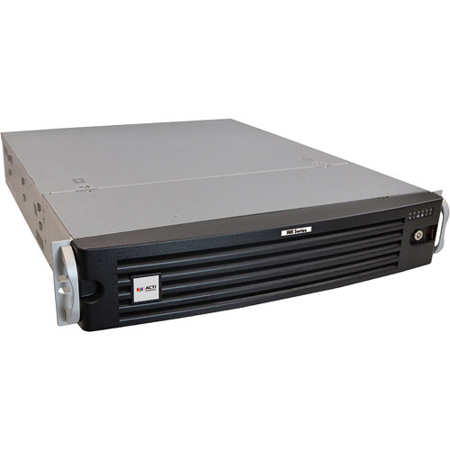

ACTi INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR

ACTi INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR with 500GB HDD, RAID 0, 1, 5, 10

SKU: ACTINR420
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum number of cameras the INR-420 can support?

The INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR can support up to 200 cameras.

What operating system does the INR-420 come with?

The INR-420 comes with a pre-installed Windows operating system.

What RAID options does the INR-420 offer?

The INR-420 offers multiple RAID options, including RAID 0, 1, 5, and 10.

What is the storage capacity of the INR-420?

The INR-420 comes with a 500GB hard drive for storing video footage.

What software is included with the INR-420?

The INR-420 comes with ACTi NVR 3.0 video management software and client software.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ACTi INR-420 Specifications

  • Maximum Number of Clients

    1 local, 3 remote

  • Maximum Number of Cameras

    200

  • Recorder: Free License

    64 Channels

  • Recorder: Compression

    H.264, MPEG-4, MJPEG

  • Maximum Local Display Resolution

    1920 x1080

  • Live View: Display Layout Mode

    Local: 1, 4, 5, 6, 8, 9, 10, 12, 16
    Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64

  • Live View: Manager

    An interface to define display layouts and the pre-set cameras within layout in the public or private view

  • Live View: Patrol

    Automatic switch between different views or devices

  • Live View: Panel

    Contains the list of pre-defined views for quick launch

  • Live View: Digital Zoom

    Zoom in/out digitally by PiP (Picture-in-Picture)

  • Live View: Camera Tree

    Drag and drop video source from camera tree into display layout; display camera status on the tree

  • Live View: Manual Recording / Snapshot

    Instant recording upon mouse click / Instant snapshot upon mouse click or hot key

  • Live View: Event Panel

    Display event status upon alarm or upon connection loss or recovery

  • Live View: Two-way Audio

    Audio sound from and to all the audio supported devices; audio broadcast to multiple devices at the same time

  • Live View: Dual Stream Management

    Live view of stream 1 or stream 2 of dual stream devices

  • Live View: Instant Playback

    Instant playback in live view window

  • e-Map: Layout

    Area maps with camera icons, small live view windows; hyperlinked

  • e-Map: Switch Travel

    Manual switch and auto tour modes selectable

  • e-Map: Setup

    e-Map image upload; camera positioning; map linking

  • e-Map: PTZ Mode

    Mouse PTZ mode to control e-Map video streams

  • PTZ: Control

    Pan, tilt and zoom controls; speed control; both buttons and mouse controls

  • PTZ: Preset Points and Tours

    Create preset points; create auto tours between preset points

  • PTZ: Number of Preset Points

    32

  • PTZ: Joystick

    USB based joystick supported

  • PTZ: Default Protocol

    Auto-detect camera's PTZ protocol. Available protocols: ACTi, Pelco-P, Pelco-D, Dynacolor, Visca

  • Record: Throughput

    Maximum total bitrate 300Mbps
    Example
    200 Channels: 1MP, 15fps, H.264, 1.5Mbps
    150 Channels: 2MP, 15fps, H.264, 2Mbps
    100 Channels: 2MP, 30fps, H.264, 3Mbps
    75 Channels: 5MP, 15fps, H.264, 4Mbps

  • Record: Scheduled

    Record video with user defined schedule

  • Record: Event

    Record video when the alarm event is triggered, including the pre-event buffered video clip

  • Record: Speed Up

    Different recording frame rate settings for non-event and triggered event

  • Record: Manual

    Instant recording upon mouse click

  • Record: Dual Stream Management

    Recording of stream 1 or stream 2 of dual stream devices

  • Record: Frame Rate

    Max 6000fps total; Max 30fps per camera

  • Storage: Interface

    Serial ATA

  • Storage: HDD

    Bundled System: Seagate 500GB 3.5" SATA HDD

  • Storage: HDD Bay

    8 (1 bay is occupied by system HDD)

  • Storage: RAID Level

    Hardware RAID 0, 1, 5, 10

  • Storage: External Storage Support

    eSATA, iSCSi, USB mass storage (USB 2.0)

  • Time

    Video Search: Search video recordings by time or channel

  • Event

    Video Search: Search alarm triggered video recordings

  • Playback Control

    Continuous forward and backward playback with speeds 1x/2x/4x/8x or frame-by-frame; pause; stop

  • Synchronized Playback

    Up to 9 channels for local display; up to 64 channels for remote client

  • Snapshot

    Manual: Instant snapshot from playback upon mouse click

  • Cropping

    Video: Crop a short video clip from long recording file and save it as an independent file

  • Video Export

    Export video clips in AVI or RAW format; text overlay supported

  • Event: Trigger

    Video motion detection; Passive IR sensor; External device through digital input; Video loss and recovery; Network loss and recovery; Server loss and recovery; Disk full; Disk not found

  • Event: Response

    Record video; Pop-up window with live video; Switch to hotspot window; Play beep sound; Activate external device through digital output; Upload snapshot to FTP server; Execute system command to activate other programs; E-mail notification with snapshots; Command a PTZ device to go to a preset point

  • Event: Manual

    Manually activate external devices through digital output via live view monitor

  • Event: Schedule

    Define the schedule of event manager

  • Permission Control

    Multi-group/users, liveview/playback/setup/remote level permission

  • Operating System

    Windows Embedded Standard 7

  • Language

    Multi-language support

  • Remote Access: PC Client Program

    User interface program (Workstation) with live view, PTZ, playback, e-Map, event management, setup

  • Remote Access: PC Web Browser

    Microsoft Internet Explorer 8.0, 9.0 or 10.0 with live view, PTZ, playback, event management, setup

  • Remote Access: Mobile Client Program

    Mobile device application (Active Mobile Client) supports live view, PTZ control, event or time based search and playback
    Supported devices: iPhone, iPad, iTouch and Android device

  • Remote Access: PC System Requirement

    1-16 channels: Intel Core 2 Quad 2.4GHz, 4GB RAM
    17-64 channels: Intel Core i7-920 2.67GHz, 4GB RAM

  • Hardware: CPU

    Intel Processor

  • Hardware: RAM

    8GB

  • Hardware: Approvals

    CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

  • Hardware: USB

    USB 2.0, 8x ports (2x front ports, 6x rear ports)

  • Hardware: Ethernet Port

    2, Gigabit Ethernet ports (1000 Base-T), RJ-45 connector

  • Hardware: eSATA Port

    1

  • Hardware: Display Port

    2x HDMI, 1x VGA

  • Integration: Unified Solution

    Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software

  • Integration: Open Platform Solution

    Support ONVIF compliant devices

  • Power Source and Power Consumption

    110V to 220V AC 50/60Hz / 85W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    10% to 85% RH

  • Dimensions (W x H x D)

    3.5 x 19 x 22.1" / 88.9 x 482.6 x 561.34 mm

  • Weight

    with HDD & front bezel: 25.18lbs / 11.42kg

About ACTi INR-420

Overwhelm yourself with the advanced capabilities of the INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR. This high-performance network video recorder (NVR) is a reliable and durable solution for your surveillance needs. It's designed to support up to 200 cameras, making it an ideal choice for extensive surveillance systems.

This innovative NVR comes with a pre-installed Windows operating system and is equipped with the latest ACTi NVR 3.0 video management software, ensuring seamless operation and user-friendly interface. The included client software further enhances its functionality, providing you with a comprehensive tool for managing your surveillance footage.

One of the standout features of this NVR is its 500GB hard drive, offering ample storage space for your video footage. With its 8-bay hardware RAID rackmount design, it provides multiple RAID options (0, 1, 5, 10), offering you the flexibility to choose the best data storage and protection strategy for your needs.

In a nutshell, the INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR is more than just a video recorder. It's a robust and versatile tool that brings together advanced technology, high storage capacity, and multiple RAID options, making it a top choice for those seeking a comprehensive surveillance solution.

ACTi INR-420 Features

  • 200-channel capacity for extensive surveillance coverage
  • Pre-installed Windows OS with ACTi NVR 3.0 software
  • 500GB HDD for substantial video storage
  • 8-bay hardware RAID with multiple options (0, 1, 5, 10)
  • Rackmount design for secure and organized installation
  • Client software included for enhanced video management

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage up to 200 channels on this network video recorder for comprehensive surveillance coverage.
  • Experience high-resolution video recording with H.264 compression for efficient storage.
  • Utilize remote access via PC, web browser, or mobile app for convenient monitoring on-the-go.
  • Benefit from RAID 0, 1, 5, 10 for reliable storage, protecting your video data from loss.
  • Set up motion detection to trigger recording, ensuring critical events are always captured.
  • Enjoy clear night vision, providing round-the-clock security with detailed video, even in low light.

What's in the box:

  • ACTi INR-420 200-Channel 8-Bay Hardware RAID Rackmount Standalone NVR with 500GB HDD
  • Power Cord
  • Adapter Converter
  • Front Cover
  • 4x HDD Tray Key
  • HDD Screw Pack
  • ACTi 3 Year Limited Warranty
