28% Off

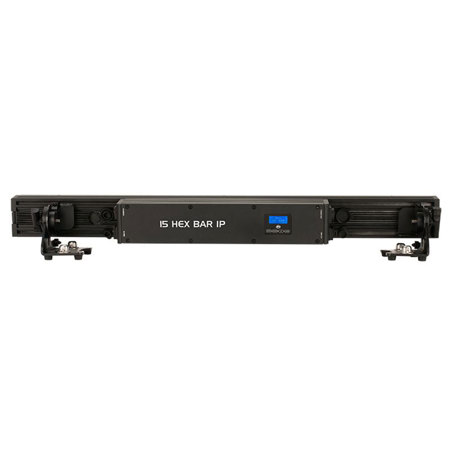

American DJ 15 HEX BAR IP 15x 12W RGBWA+UV LED Linear Wash Light Fixture

SKU: AD15HEXBARIP MFR: 15 HEX BAR IP
Earn VIP Reward Points

Key Features

  • Create vibrant washes with 15x 12W HEX LEDs, perfect for stages and architectural lighting.
  • Achieve stunning color mixing with RGBWA+UV LEDs; this wash light enhances any event.
  • Enjoy seamless outdoor use with its IP65 rating, ideal for temporary outdoor events.
  • Easily control lighting with multiple DMX modes and built-in programs for dynamic shows.
  • Benefit from robust, all-metal housing, ensuring durability for touring and events.
  • Customize lighting with 5 individually controlled sections using zone control features.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

American DJ 15 HEX BAR IP Specifications

Light Source

Light Source

Jump to...
  • LED

    15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)

  • Beam Angle

    25-degrees

  • LUX

    14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)

Construction

Jump to...
  • Display

    OLED display with function buttons

  • Data In/Out

    Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)

  • Power In/Out

    Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)

  • Daisy chain

    Up to 6 fixtures @ 120V; 15 fixtures @ 240V

  • All Metal Heavy-Duty Housing

    Built To Last In Outdoor or Touring Applications

Control

Jump to...
  • Control

    Multiple DMX channel modes
    Built-in internal programs
    5 individually controlled sections with Zone Control
    0-100% Dimming + smooth 16-bit Dimming
    6 Dimming Curve Modes
    Control Mode: DMX512, RDM (Remote Device Management)
    With Wired Digital Communication Network

Electrical

Jump to...
  • Power voltage

    AC100-240V, 50/60Hz (Multi-voltage)

  • Power consumption

    130W max

Physical

Jump to...
  • Approvals / Rating

    CE Certified / IP65 (Temporary outdoor use only)

  • Dimensions (L x W x H)

    36 x 8 x 7.75" (915 x 203 x 200mm)

  • Weight

    20 lbs (8.9kg)

About American DJ 15 HEX BAR IP

Because lighting can make or break your event, the ADJ 15 HEX BAR IP offers a versatile solution for both indoor and outdoor settings. This IP65 rated multi-functional wash linear fixture is equipped with 15x 12W HEX LEDs (6-IN-1 - RGBWA+UV), providing a broad spectrum of colors to create the perfect ambiance.

The fixture features five individually controlled sections with Zone Control, allowing for precise light manipulation and creative lighting effects. The 25-degree beam angle ensures a wide coverage area, while the included removable diffusion filter offers the flexibility to adjust the beam angle as per your needs.

Constructed with a robust all-metal black housing, this fixture is designed to withstand the elements. Its IP65 outdoor rating signifies its resistance to dust, sand, moisture, and liquids, making it a reliable choice for outdoor events.

On the rear panel, you'll find IP65 rated 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated power locking In/Out connections. These features allow for easy daisy-chaining of power and data, simplifying your setup process. Both the DMX and power connections are fitted with rubber protective covers for added durability and safety.

The fixture also includes an OLED display with touch buttons for effortless navigation through the various functions. The ADJ 15 HEX BAR IP is flicker-free, making it suitable for film and broadcast applications. It also offers multiple DMX control modes and dimming modes, providing you with complete control over your lighting environment.

American DJ 15 HEX BAR IP Features

  • IP65 rated - protects from dust, sand, moisture and liquid (Temporary outdoor use only)
  • All metal construction with black housing
  • Includes heavy duty bracket
  • Sure-lock locking bracket system (securely locks every 10-degrees)
  • Flicker free for film and broadcast
  • 63 Built-in Color Macros
  • Linear variable white temperature control

Warranty Information

This product has a limited warranty of 24 months for parts and 12 months for labor.

Key Features

  • Create vibrant washes with 15x 12W HEX LEDs, perfect for stages and architectural lighting.
  • Achieve stunning color mixing with RGBWA+UV LEDs; this wash light enhances any event.
  • Enjoy seamless outdoor use with its IP65 rating, ideal for temporary outdoor events.
  • Easily control lighting with multiple DMX modes and built-in programs for dynamic shows.
  • Benefit from robust, all-metal housing, ensuring durability for touring and events.
  • Customize lighting with 5 individually controlled sections using zone control features.

What's in the box:

  • American DJ 15 HEX BAR IP 15x 12W RGBWA+UV LED Linear Wash Light Fixture
  • Seetronic IP65 Locking Power Cord
  • Frost/Diffusion Filter
  • Glare Shield
  • 2x Omega Brackets
  • ADJ 2 Year Limited Warranty
