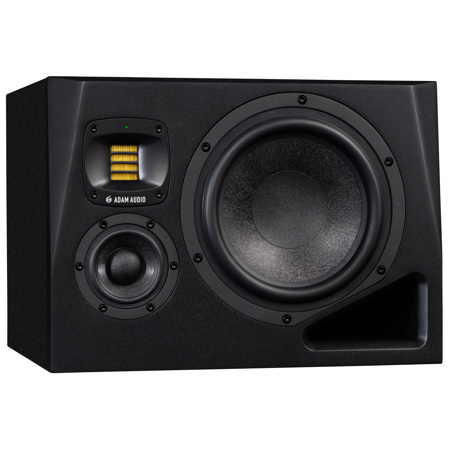

Adam Audio A8H Horizontal 8" 340W Powered Active 3-Way Studio Monitor, Right Side

SKU: AD8HR MFR: 12108700
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Adam Audio studio monitor's exceptional sound quality.
  • Achieve accurate mixes using the A8H's flat frequency response for critical listening.
  • Enjoy precise stereo imaging, perfect for detailed placement of instruments in your mix.
  • This 340W powered studio monitor delivers robust power output for demanding sessions.
  • Easily connect via XLR or RCA inputs, integrating seamlessly into your existing setup.
  • Fine-tune your sound with onboard room adaption, optimizing the monitor for your space.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Adam Audio A8H Right Specifications

General

General

Jump to...
  • Display

    Front panel multi-color LED

  • Material

    Cabinet: Vinyl wrapped MDF and painted MDF front panel

  • Cabinet Design

    Single front ported

  • Mounting options

    Threaded inserts on the bottom of the cabinet (4 x M8)

  • AC Input Voltage

    100 - 240 V, 50/60 Hz

  • Power Rating

    500 W max.

  • Operating Conditions

    +14 Degree F to +113 Degree F (-10 Degree C to +45 Degree C); <75 % RH, non-condensing

Audio Input Connectors

Jump to...
  • Analog

    XLR, RCA

  • Input Impedance

    9 kOhm / 3.3 kOhm

  • Max. Input Level

    +19 dBu

Amplification

Jump to...
  • Woofer

    Amplifier Type: PWM
    Peak (10% THD, limiter deactivated): 250 W
    RMS (1% THD, limiter deactivated): 200 W

  • Midrange

    Amplifier Type: Class A/B
    Peak (10% THD, limiter deactivated): 70 W
    RMS (1% THD, limiter deactivated): 55 W

  • Tweeter

    Amplifier Type: Class A/B
    Peak (10% THD, limiter deactivated): 20 W
    RMS (1% THD, limiter deactivated): 15 W

Control Options (via Network)

Jump to...
  • Networking Connector

    RJ45

  • Connection Type

    Ethernet

  • Communication Protocol

    OCA using standard IP data

  • Control Software

    A Control (Windows and MacOS available)

  • Room Adaption Options

    Backplate, Extended, Sonarworks SoundID Reference integration

  • Advanced Room Adaptation

    6 x PEQ, Level, Delay

  • Third-party Calibration Compatibility

    Import from Sonarworks SoundID Reference

Acoustics

Jump to...
  • Crossover Frequencies

    400 Hz, 3.0 kHz

Drivers

Jump to...
  • Woofer

    Basket Diameter: 8" (20.32cm)
    Voice Coil Diameter: 1.5" (38mm)
    Cone Material: MLM

  • Midrange

    Type: Dome Cone Hybrid (DCH)
    Basket Diameter: 3.5" (8.89cm)
    Voice Coil Diameter: 1.3" (33mm)
    Cone Material: MLM

  • Tweeter

    Type: X-ART
    Diaphragm Area: 4" (2420mm)
    Equivalent Diaphragm Diameter: 2" (56mm)
    Velocity Transform Ratio: 4 to 1
    Diaphragm Weight: 0.0059 oz (0.17g)
    Waveguide: HPS (rotatable)
    Waveguide Dispersion: 120 Degree horizontal, 70 Degree vertical

Signal Processing

Jump to...
  • AD converter

    24-bit

  • Internal sample rate

    96 kHz

  • Delay range, resolution

    0 - 10 ms, 0.1 ms

  • Protection

    Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Control Options (via Backplate)

Jump to...
  • Input Sensitivity

    0 dBu = 100 dB SPL at 1 m @ 0 dB level setting

  • Level

    -12 dB to +12 dB

  • Input Selection

    Balanced, unbalanced

  • Voicings

    Pure, UNR

  • Room Adaption

    Bass: +2, 0, -2, -4 dB
    Desk: 0, -2, -4 dB
    Presence: +1, 0, -1 dB
    Treble: +1.5, 0, -1.5 dB

Physical

Jump to...
  • Dimensions (H x W x D)

    9.75 x 15 x 13" (274 x 382 x 329mm)

  • Weight

    30 lbs (13.6kg)

  • UPC Code

    4260113134825

1 Accessories for Adam Audio A8H Horizontal 8" 340W Powered Active 3-Way Studio Monitor, Right Side

  • All Accessories (1)
  • Stands (1)

About Adam Audio A8H Right

Bring unparalleled audio fidelity to your professional studio with the A8H Horizontal 8" 340W Powered Active 3-Way Studio Monitor. As the zenith of the A Series, this right-side studio monitor is engineered to deliver the exceptionally accurate and analytical sound that critical listening environments demand.

Crafted for supreme monitoring, the A8H features a resonant 8-inch Multi-Layer Mineral (MLM) fiber woofer, a cutting-edge midrange driver, and a handcrafted precision X-ART tweeter. These components work in harmony to produce an ultra-wide frequency response, ensuring that every nuance of your audio is captured with utmost clarity.

The A8H stands out with its innovative design, offering tremendous flexibility for sound customization. The rotatable High-frequency Propagation System (HPS) waveguide technology, paired with onboard DSP, allows for precise sound shaping, making it an ideal choice for a diverse range of audio applications in mid to full-sized spaces.

Dive into the future of sound with ADAM Audio's pioneering technology. The A8H is equipped with a glass fiber polymer compound HPS waveguide, enhancing the X-ART tweeter's ability to disperse sound consistently across your listening space. The bass reflex system and robust cabinet design build upon the legacy of ADAM Audio's AX Series, ensuring durability and reliable performance.

Experience the convenience of remote control with A Control software, which enables real-time adjustments over ethernet to all DSP-based functionalities of the A Series monitors. The hybrid amplification system merges the best aspects of digital and analog technologies, offering a powerful and dynamic audio experience.

The A8H's Multi-Layer Mineral Woofer (MLM) represents the latest advancements in material science and acoustic design, delivering deep, impactful bass. The midrange driver is meticulously engineered to produce a clean sound in the critical frequency range, where human ears are most sensitive to sound coloration.

Customize your listening experience with pre-defined "Voicings" on the back panel, including "UNR" and "Pure" selections, to match the unique characteristics of your audio projects. Additionally, four bands of room adaptation equalization Bass, Desk, Presence, and Treble allow for fine-tuning to the acoustics of your space.

Harness the transformative power of digital signal processing with the A Series, offering precision tuning capabilities that surpass those of traditional analog-only speakers. With its powerful 340W amplification and professional-grade connectors, including RCA and XLR inputs, the A8H Horizontal Studio Monitor is a reliable, powerful, and aesthetically pleasing choice for audio professionals seeking the highest quality sound reproduction in their studio environments.

Adam Audio A8H Right Features

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 8" Woofer (Multi-Layer Mineral)
  • 3.5" DCH Midrange Driver
  • Cumulated Amp. Power Peak: 340 W

Warranty Information

This product has a limited warranty of 24 months for parts and 60 months for labor.

Key Features

  • Experience pristine audio with this Adam Audio studio monitor's exceptional sound quality.
  • Achieve accurate mixes using the A8H's flat frequency response for critical listening.
  • Enjoy precise stereo imaging, perfect for detailed placement of instruments in your mix.
  • This 340W powered studio monitor delivers robust power output for demanding sessions.
  • Easily connect via XLR or RCA inputs, integrating seamlessly into your existing setup.
  • Fine-tune your sound with onboard room adaption, optimizing the monitor for your space.

What's in the box:

  • Adam Audio A8H Horizontal 8" 340W Powered Active 3-Way Studio Monitor (Right Side)
  • Power Cable
  • Quick Start Guide
  • Adam Audio 2 Year Limited Warranty (3 Year Extended Warranty with Registration)
