Adam Audio A3X Specifications

  • Number of Mid-Woofer

    1

  • Mid-Woofer: Basket

    Diameter: 4.5" (11.43cm)

  • Mid-Woofer: Voice coil

    Diameter: 1" (2.54cm)

  • Mid-Woofer: Cone material

    Carbon Fiber

  • Number of Tweeter

    1

  • Tweeter: Type

    X-ART

  • Tweeter: Diaphragm area

    4 inch2 (2420 mm2)

  • Tweeter: Equiv. Diaphragm

    Diameter: 2" (5.08cm)

  • Tweeter: Velocity transform ratio

    4:1

  • Tweeter: Diaphragm weight

    0.17g (0.01oz)

  • Built-in Amplifiers

    Mid-Woofer
    Type: A/B; Amp. power RMS / music: 25 W / 40 W

    Tweeter
    Type: A/B; Amp. power RMS / music: 25 W / 40 W

  • Input Sensitivity

    -infinity to +14 dB

  • Tweeter gain

    +/-4 dB

  • Analog

    1 x XLR Input
    1 x RCA Input
    1 x RCA Stereolink Connector (2 Jacks)
    1 x Power Input

  • Frequency response

    60 Hz - 50 kHz

  • THD 90dB/1m > 100 Hz

    <=0.8 %

  • Max SPL

    >=98 dB with sine wave acoustic 100Hz to 3kHz at 1m

  • Max SPL per pair at 1m

    >=106 dB

  • Crossover frequencies

    2800 Hz

  • Input impedance

    10 KOhm

  • Magnetically shielded

    No

  • Dimensions (H x W x D)

    10 x 6 x 7.5" (25.40 x 15.24 x 19.05cm)

  • Weight

    10.1lbs (4.58kg)

  • UPC Code

    4260113132098

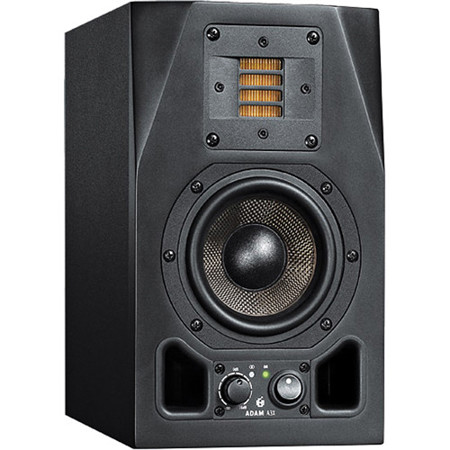

About Adam Audio A3X

The smallest big sound ever
With the A3X, ADAM Audio present their smallest monitor to date, making it perfectly suited for all environments where space is limited but sound shouldn't be constricted. The A3X combines a tiny footprint with the much acclaimed ADAM sound quality by using the X-ART tweeter for the higher frequencies, a guarantee for crystal clear music reproduction.

A 4.5" (basket) driver handles the lower registers. The diaphragm is made from carbon fiber, a material that is very light but very stiff and therefore capable of delivering coloring-free sound. Two built-in 25 Watt amplifiers powers each of the drivers directly.

Stereolink
A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker. This new technology connects two A3X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker's gain control. This makes the A3X a natural for "mixer-less "desktop applications where overall system volume needs to be adjusted easily.

What's in the box:

  • Adam Audio A3X 4.5 " 50W 2-Way Active Nearfield Monitor
  • Cinch-Cable
  • Power Cord
  • Manual
  • Adam Audio 5 Year Warranty
