Adam Audio 2-Way Active Monitor Specifications

  • Number of Mid-Woofer

    1

  • Mid-Woofer: Basket

    Diameter: 5.5" (13.97cm)

  • Mid-Woofer: Voice coil

    Diameter: 1.5" (3.81cm)

  • Mid-Woofer: Cone material

    Carbon/Rohacell/Glass Fiber

  • Number of Tweeter

    1

  • Tweeter: Type

    X-ART

  • Tweeter: Diaphragm area

    4 inch2 (2420 mm2)

  • Tweeter: Equiv. Diaphragm

    Diameter: 2" (5.08cm)

  • Tweeter: Velocity transform ratio

    4:1

  • Tweeter: Diaphragm weight

    0.17g (0.01oz)

  • Built-in Amplifiers

    Mid-Woofer
    Type: PWM; Amp. power RMS / music: 50 W / 75 W

    Tweeter
    Type: A/B; Amp. power RMS / music: 50 W / 75 W

  • Input Sensitivity

    -infinity to +14 dB

  • Tweeter gain

    +/-6dB

  • High Shelf EQ

    +/-6dB

  • Low Shelf EQ

    +/-6dB

  • Analog

    1 x XLR Input
    1 x RCA Input
    1 x RCA Stereolink Connector (2 Jacks)
    1 x Power Input

  • Frequency response

    50 Hz - 50 kHz

  • THD 90dB/1m > 100 Hz

    <=0.6%

  • Max SPL

    >=102 dB with sine wave acoustic 100Hz to 3kHz at 1m

  • Max SPL per pair at 1m

    >=110dB

  • Crossover frequencies

    2500 Hz

  • Input impedance

    30 KOhm

  • Magnetically shielded

    No

  • Dimensions (H x W x D)

    11 x 6.5 x 8.5" (27.94 x 16.51 x 21.59cm)

  • Weight

    14.6lbs (6.62kg)

  • UPC Code

    4260113132104

26 Accessories for Adam Audio A5X 5.5" 100W Active 2-Way Studio Monitor - Single

  • All Accessories (26)
  • Cables & Adapters (19)
  • Controllers (3)
  • Stands (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About Adam Audio 2-Way Active Monitor

FEATURED REVIEWS

Great sounding speaker, Great condition, Neatly packed!

By Cody M.

Been using the Adam A7X monitors for over 8 years now, and I had to order this one to replace one of my own that had a busted X-ART tweeter/driver. The monitor arrived on time, all in original packaging, in GREAT condition. Sounds fantastic as well.

Highly recommend, great reference monitors

By William V.

These are incredible speakers, recomend for anyone getting into a semi-pro/professional engineering/producing environment. I can hear for myself why they have won so many awards. I have never given a product a 5 star rating before.

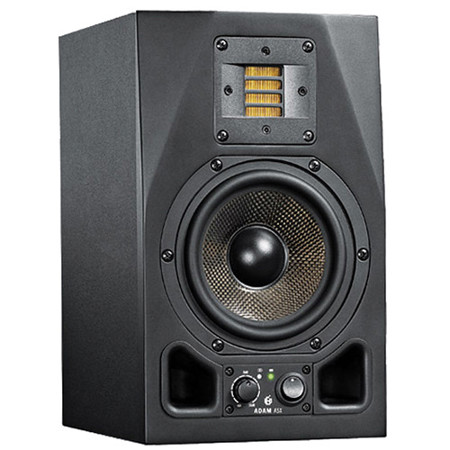

Like all other models of the AX-Series the A5X features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

A 5.5" Midwoofer reproduces the frequencies below2.5kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber, which is the same composite structure shared in the next two bigger models. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behavior and impeccable sound characteristics.

Stereolink
A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker. This new technology connects two A5X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker's gain control. This makes the A5X a natural for "mixer-less "desktop applications where overall system volume needs to be adjusted easily.

What's in the box:

  • Adam Audio A5X 5.5 " 100W 2-Way Active Nearfield Monitor
  • Cinch-Cable
  • Power Cord
  • Manual
  • Adam Audio 5 Year Warranty
