What is the beam angle of the ADJ COB Cannon Wash?

The ADJ COB Cannon Wash has a substantial 80-degree beam angle. However, it also comes with easily replaceable 40-degree and 50-degree lenses for customized beam angle adjustments.

What is the RGBA COB (Chip On Board) technology used in the COB Cannon Wash?

The RGBA COB (Chip On Board) technology allows for a powerful LED engine to be placed in a small amount of space. This results in a high output, smooth color mixing LED Par with no RGBA shadows.

Can the COB Cannon Wash be used as an uplight?

Yes, the COB Cannon Wash can function as an uplight. Its dual yoke acts as legs to set the fixture upright for washing walls and ceilings.

What professional features does the COB Cannon Wash include?

The COB Cannon Wash includes professional features such as 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and locking power In & Out to daisy-chain fixtures, and a 4-button DMX display.

What are the operating modes of the COB Cannon Wash?

The COB Cannon Wash can operate in its stand-alone mode from built-in programs, sound actively, or from a DMX controller.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American DJ COB Cannon Wash Specifications

Light
  • Lighting Type

    PAR / Wash Light

  • Light Source

    1x Color LED (COB) - 150 W

  • Light Source Life Expectancy

    50,000 Hours

  • Colors

    Red
    Green
    Blue
    Amber

  • Photometrics

    40 Degree :
    183 fc / 1970 Lux at 6.5' (2m)
    44 fc / 474 Lux at 13.1' (4m)

    50 Degree :
    136.7 fc / 41,472 Lux at 6.5' (2m)
    34.7 fc / 4373 Lux at 13.1' (4m)

    80 Degree :
    92.5 fc / 996 Lux at 6.5' (2m)
    22.1 fc / 238 Lux at 13.1' (4m)

  • Beam Angle

    80 Degree (with Installed Lens)
    50 Degree (with Included Lens)
    40 Degree (with Included Lens)

  • Shutter/Strobe

    Electronic

  • Dimming

    Electronic, 0 to 100% with 5 Dimmer Modes

Performance

Jump to...
  • Operating Modes

    DMX, Sound-Active, Standalone

  • Macros/Programs

    64x Color Macro

  • Effects

    Pulse (Variable Speed)
    Strobe (Variable Speed)

  • Refresh Rate

    1 kHz

Control

Jump to...
  • Control Protocols

    DMX512

  • DMX Channel Modes

    7 Mode(s): 3 / 4 / 5 / 6 / 7 / 9 / 10-Channel

  • Remote Control

    RF Remote (with Optional Equipment)

  • Display/Controls

    LED / 4-Button

Connectivity

Jump to...
  • I/O

    1x XLR 3-Pin DMX Input
    1x XLR 3-Pin DMX Output
    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON
    Output: 1x powerCON

  • Fuse

    0.125

  • Power/Current Consumption

    132 W (Max)

  • Power Linking

    5 Units

Environmental

Jump to...
  • Operating Temperature

    185 Degree F (85 Degree C)

Physical

Jump to...
  • Mounting

    Dual/Scissor Yoke

  • Exterior Color

    Black

  • Certifications

    cETL, as per Manufacturer

  • Dimensions

    16.25 x 9.75 x 7.5" (415 x 245 x 192mm)

  • Weight

    9 lbs (4.1kg)

  • UPC Code

    819730014580

About American DJ COB Cannon Wash

Discover the transformative power of the ADJ COB Cannon Wash, a cutting-edge LED Par Can light that employs the latest RGBA COB (Chip On Board) technology. This compact yet powerful lighting solution is designed to deliver high output and smooth color mixing without any RGBA shadows, making it an ideal choice for stage lighting, club environments, dance floors, and church settings.

The COB Cannon Wash is housed in a sleek black casing and boasts a substantial 80-degree beam angle for broad coverage. For added versatility, it comes with easily replaceable 40-degree and 50-degree lenses, allowing you to adjust the beam angle to suit your specific needs.

At the heart of the COB Cannon Wash is a QUAD RGBA 4-In-1 COB LED engine, which packs a powerful punch in a small space. This innovative design also enables the unit to function as an uplight, with its dual yoke acting as legs to set the fixture upright for washing walls and ceilings.

The COB Cannon Wash offers 7 DMX Channel modes for programming flexibility, along with built-in color macros and 5 selectable Dim Curves. Professional features include 0-100% electronic dimming, a strobe/pulse effect, and Flicker Free operation for seamless lighting transitions.

For easy setup and integration into your existing lighting system, the COB Cannon Wash features DMX and locking power In & Out to daisy-chain fixtures. It also includes a 4-button DMX display for easy operation. Whether you're running it in stand-alone mode from built-in programs, sound actively, or from a DMX controller, the COB Cannon Wash delivers exceptional lighting performance every time.

American DJ COB Cannon Wash Features

  • COB Technology (Chip On Board) with one Quad (4-In-1) RGBA COB LED
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • 64 built-in color macros
  • Flicker Free operation (No flickering on camera)
  • 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • 80-degree beam angle
  • 3-pin XLR chassis mount connectors for DMX linking
  • With Wired Digital Communication Network
  • Locking power In & Out to daisy chain power (up to 5 fixtures)
  • 4-button digital DMX display on rear panel
  • Compatible with the ADJ RFC wireless remote control (sold separately)
  • Dual yoke allows fixture to be mounted on truss or set on the ground

Key Features

  • Advanced LED Par Can light leveraging RGBA COB (Chip On Board) technology
  • High output, smooth color mixing with no RGBA shadows
  • Versatile 80-degree beam angle with replaceable 40-degree and 50-degree lenses
  • Dual yoke design for uplight functionality, ideal for washing walls and ceilings
  • 7 DMX Channel modes, built-in color macros, and 5 selectable Dim Curves
  • Easy integration with DMX and locking power In & Out for daisy-chaining fixtures

What's in the box:

  • American DJ COB Cannon Wash 150W 4-In-1 RGBA Quad LED PAR Can Wash Light (Black)

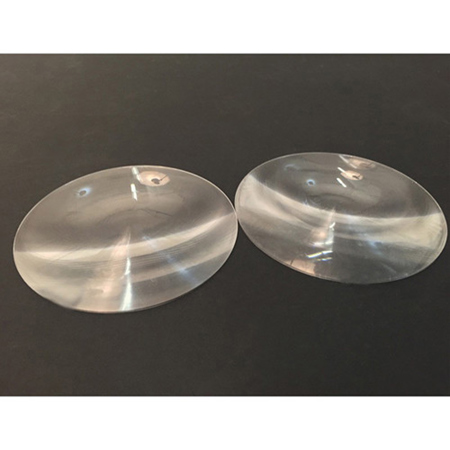

  • 40 Degree and 50 Degree Lens
  • American DJ 2 Year Limited Warranty
