American DJ Element HEX 4x 10W 6-In-1 Wi-Fi DMX RGBAW+UV LED Par Wash Light
See all American DJ items

American DJ Element HEX 4x 10W 6-In-1 Wi-Fi DMX Indoor RGBAW+UV LED Par Wash Light

SKU: ADJEHX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

American DJ Element HEX Specifications

Optical

Optical

Jump to...

  • Optical

    4x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)

  • Life expectancy

    Rated at 50,000 hrs.

  • LUX

    684@ 2M; 171 @ 4M

  • Beam angle

    20-degree

  • PWM Frequency

    1000Hz

Connection

Jump to...

  • DMX

    3-pin DMX In/Out
    With Wired Digital Communication Network
    IEC In/Out to power battery or daisy chain fixture

Control

Jump to...

  • Control protocol

    WiFLY EXR DMX, 3-pin DMX

  • 5 DMX Channel Modes

    6, 7, 8, 11 & 12

  • Remote control

    WiFLY EXR DMX, UC-IR, Airstream IR

  • 5 Operational Modes

    RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features

Jump to...

  • Features

    Built-in kickstand to angle figure while it's on the floor

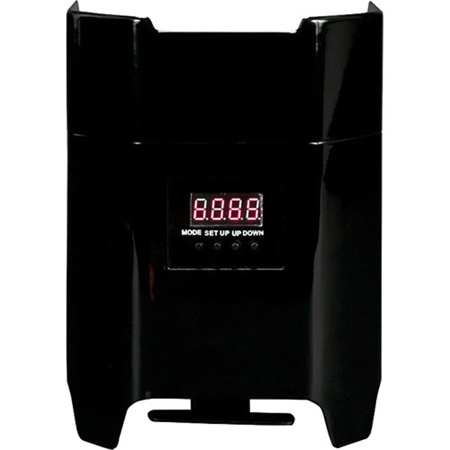

    4-button DMX menu display on rear panel
    Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
    63 built-in Color Macros
    Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
    LED pulse and strobe effect (0.2Hz-11Hz)
    Flicker Free Operation

  • Features (Contd.)

    Electronic Dimming: 0 - 100% with 5 dimming curves
    Run all night - No duty cycle
    Energy Saving Mode

Electrical

Jump to...

  • Power Draw Total (All LED's @ Full On)

    45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

  • Multi-Voltage Operation

    AC 100-240V, 50/60Hz

Certifications

Jump to...

  • Certifications

    cETLus Approved (Control #4002034)
    CE Approved
    IP20 Indoor rated

Battery

Jump to...

  • Battery

    Fixed lithium battery

  • Battery Energy

    73.26WH (Watt Hours)

  • Battery Voltage

    11.1V

  • Battery Capacity

    6.6AH

  • Total Lithium Ion Cells

    9 pieces

  • Battery Wrap Material

    PVC sleeving + highland barley paper

  • Battery Charge Time

    4.5 Hours (With POWER switch On)

  • Battery Life

    11 hours (single color)

  • Battery Info

    Required, included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

Physical

Jump to...

  • Dimensions (L x W x H)

    5.67 x 5.67 x 7.66" (144.06 x 144.06 x 194.5mm)

  • Weight

    6.5 lbs (2.9kg)
    Battery: 14.81 oz (420g)

Other

Jump to...

  • UPC Code

    818651020496

About American DJ Element HEX

The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element Hex features four 10W RGBAW+UV (6-IN-1) LEDs and is intended for indoor use.

From the Element Par Series, the Element HEX is a battery powered LED Par with ADJ's WiFLY EXR wireless DMX for indoor use. It's powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for up lighting, staging, events, productions and any mobile application. No cables or wires needed!

American DJ Element HEX Features

  • Five Operating Modes
  • Electronic Dimming 0-100%
  • RGBWA+UV Color Mixing
  • 5 Selectable Dimming Curves
  • 63 Color Macros
  • Built in Microphone
  • DMX-512 protocol
  • 3-Pin DMX Connection
  • 5 DMX Channel Modes: 6 Channel Mode, 7 Channel Mode, 8 Channel Mode, 11 Channel Mode, & 12 Channel Mode
  • Rechargeable Lithium Battery
  • Built-In ADJ's WiFly TransCeiver Wireless DMX
  • ADJ UC IR & Airstream IR compatible
  • Multiple Unit Power Linking

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Five Operating Modes
  • Electronic Dimming 0-100%
  • RGBWA+UV Color Mixing
  • 5 Selectable Dimming Curves
  • 63 Color Macros
  • Built in Microphone

What's in the box:

  • American DJ Element HEX 4x 10W 6-In-1 Wi-Fi DMX Indoor RGBAW+UV LED Par Wash Light
  • UC IR Remote Control
  • Airstream IR Transmitter
  • I.E.C. Power Cable
  • American DJ 2 Year Limited Warranty
