American DJ Element ST HEX Specifications

Optical

Optical

Jump to...
  • Optical

    4x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)

  • Life Expectancy

    Rated at 50,000 hrs

  • LUX

    >412@3M(9.8 ft.)

  • Beam Angle

    20-degree

Connection

Jump to...
  • Connection

    12.6VDC Power Input

Control

Jump to...
  • Control protocol

    WiFLY EXR wireless DMX

  • 5 DMX Channel modes

    6, 7, 8, 11 & 12
    WiFLY EXR Wireless DMX built-in
    UC-IR infrared wireless remote (included)

  • 5 Operational modes

    RGBAW+UV Dimmer Mode; Sound Active mode; Internal program mode; color macro mode; and DMX Controlled
    USB service port

Features

Jump to...
  • Features

    Menu selectable languages: English or Spanish
    Built-in tilt adjustment leg to angle figure while it's on the floor
    DMX menu touch screen display
    Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
    63 built-in Color Macros

  • Features (Contd.)

    Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
    LED pulse and strobe effect (0.1Hz-11Hz)
    Flicker Free Operation
    Electronic Dimming: 0 - 100% with 5 dimming curves
    Run all night - No duty cycle
    Energy Save Mode to preserve battery life
    Carry handle and snoot to hide handle and LED lenses

Electrical

Jump to...
  • Power Draw Total (All LED's @ Full On)

    45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

  • Multi-voltage operation

    AC 100-240V, 50/60Hz

Certifications

Jump to...
  • Certifications

    CE Approved
    IP20 Indoor rated

Battery

Jump to...
  • Battery

    Fixed Lithium Battery

  • Battery Energy

    73.26WH (Watt Hours)

  • Battery Voltage

    11.1V

  • Battery Capacity

    6.6AH

  • Total Lithium Ion Cells

    9 pieces

  • Battery Wrap Material

    PVC sleeving + highland barley paper

  • Battery Charge Time

    5 Hours (With POWER switch On)

  • Battery Life (Full Charge)

    8 hours (Full On); Up to 12 hours (Static Colors or Chase Mode)

  • Battery Info

    Required, included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-Universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x W x H)

    5.12 x 5.12 x 5.6" (130 x 130 x 143mm)

  • Weight

    4 lbs (1.8kg)

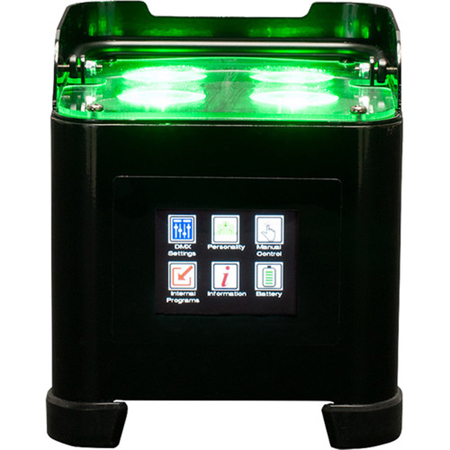

About American DJ Element ST HEX

The ADJ Element ST HEX is a battery powered wireless LED up-light powered by four 6W HEX LEDs (RGBWA+UV). It features a compact design, WiFLY wireless DMX connectivity, variable-angle kick-stand and a full-color touch screen.

The ADJ Element ST HEX is the of the latest addition to ADJ's Element series of battery powered wireless LED up-lighters. Building on the success of ADJ's popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ's WiFLY EXR wireless DMX connectivity. Cleverly designed with a built-in variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, decor specialists and mobile entertainers.

American DJ Element ST HEX Features

  • Multiple Operating Modes
  • Electronic Dimming 0-100%
  • RGBWA+UV Color Mixing
  • 5 Selectable Dimming Curves
  • 63 Color Macros
  • Built in Microphone
  • Multiple DMX Channel Modes
  • Battery Powered with Rechargeable Lithium Battery
  • Built-In ADJ's WiFly TransCeiver Wireless DMX
  • ADJ UC IR & Airstream IR compatible

Key Features

  • Multiple Operating Modes
  • Electronic Dimming 0-100%
  • RGBWA+UV Color Mixing
  • 5 Selectable Dimming Curves
  • 63 Color Macros
  • Built in Microphone

What's in the box:

  • American DJ Element ST HEX 4x 6W 6-In-1 Wi-Fi DMX RGBAW+UV LED Wash Light
  • UC IR Remote Control
  • Airstream IR Transmitter
  • 12.6V/2A DC Power Adapter
  • American DJ 2 Year Limited Warranty
